PRESENTATION OUTLINE
Ultrasound
A ULTRASOUND : IS THE SOUND WAVES THAT TRAVEL INTO YOUR BODY AND HIT A BOUNDARY BETWEEN TISSUE.
Photo by larskflem

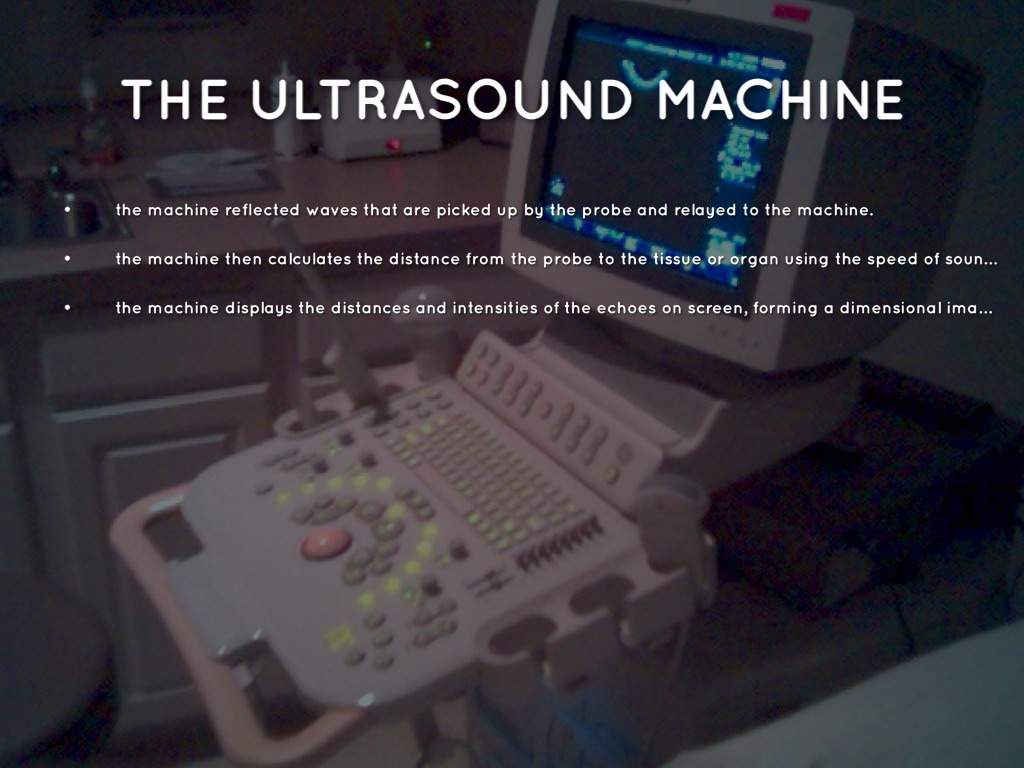

The ultrasound machine
- the machine reflected waves that are picked up by the probe and relayed to the machine.
- the machine then calculates the distance from the probe to the tissue or organ using the speed of sound in the tissue and the time of each echo's return.
- the machine displays the distances and intensities of the echoes on screen, forming a dimensional image .
Photo by The Facey Family
The ultrasound machine
IT WAS DISCOVERED BY :PIERRE AND JACQUES CURIE IN 1880.
Photo by NOAA Ocean Explorer

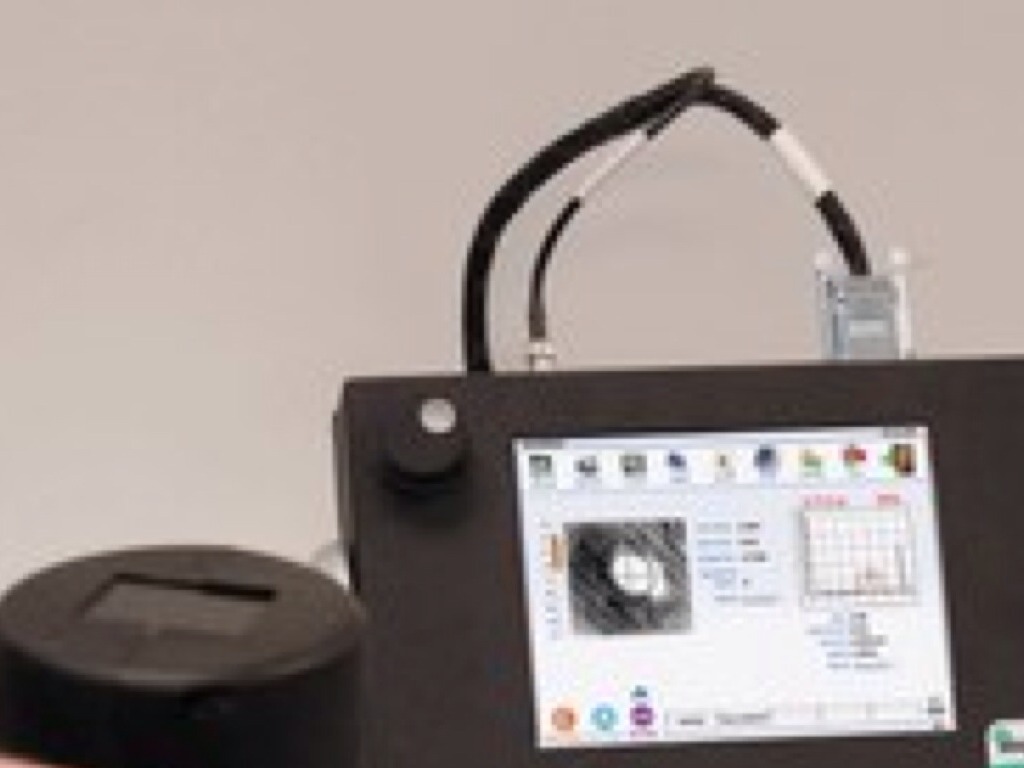

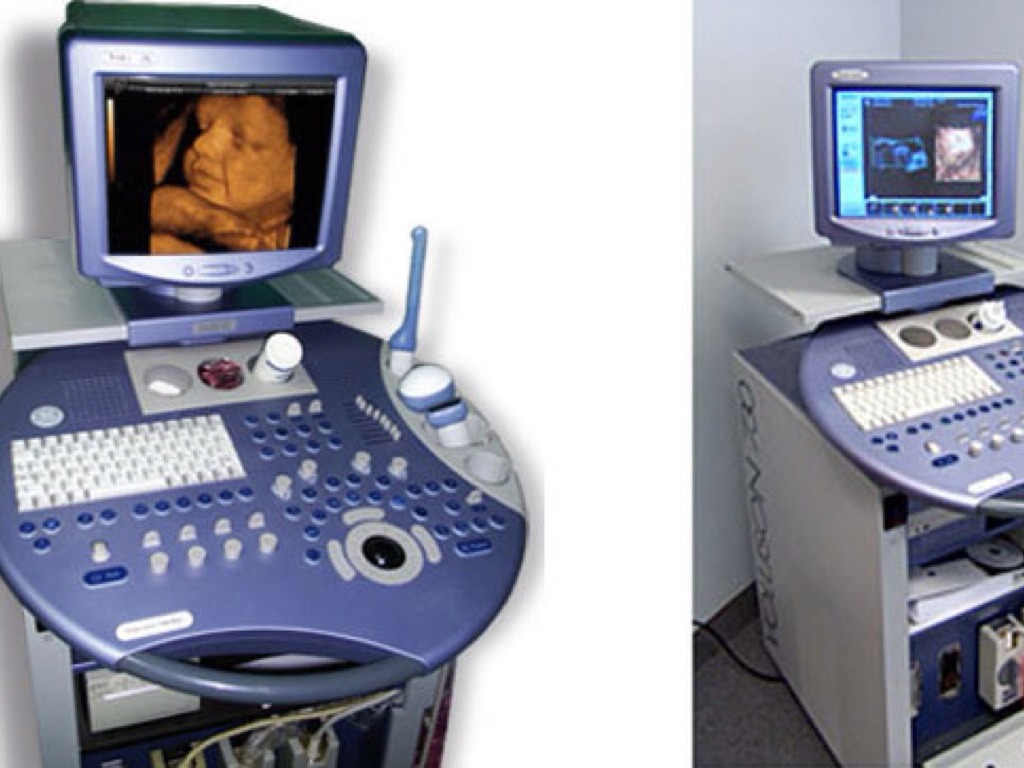

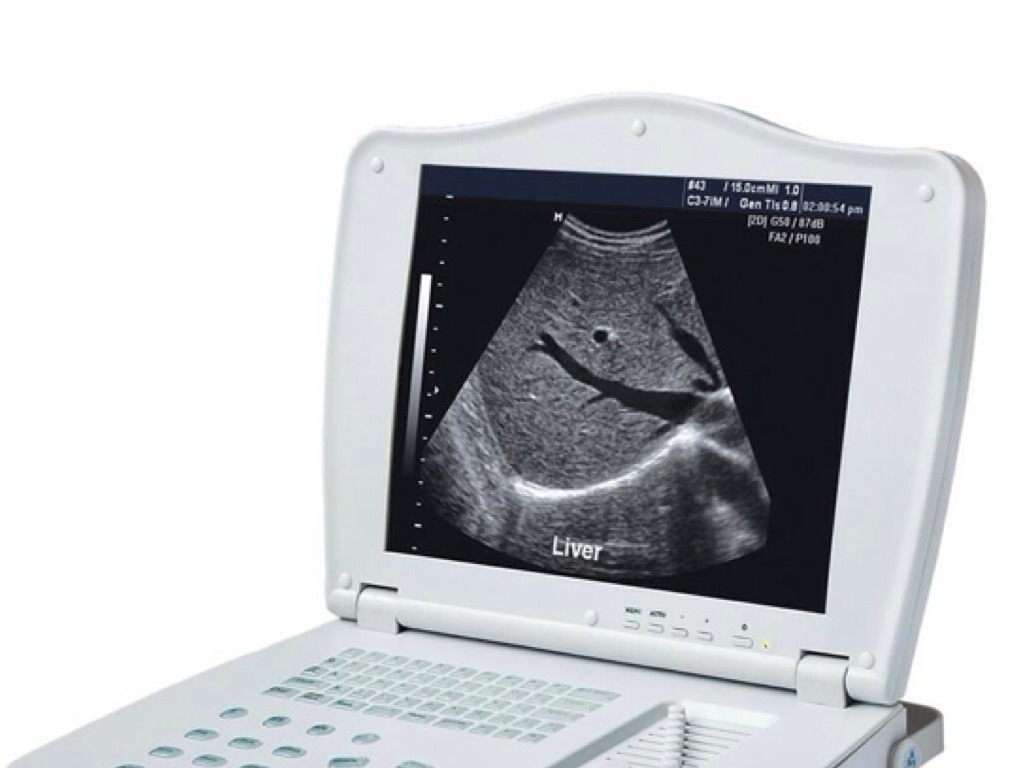

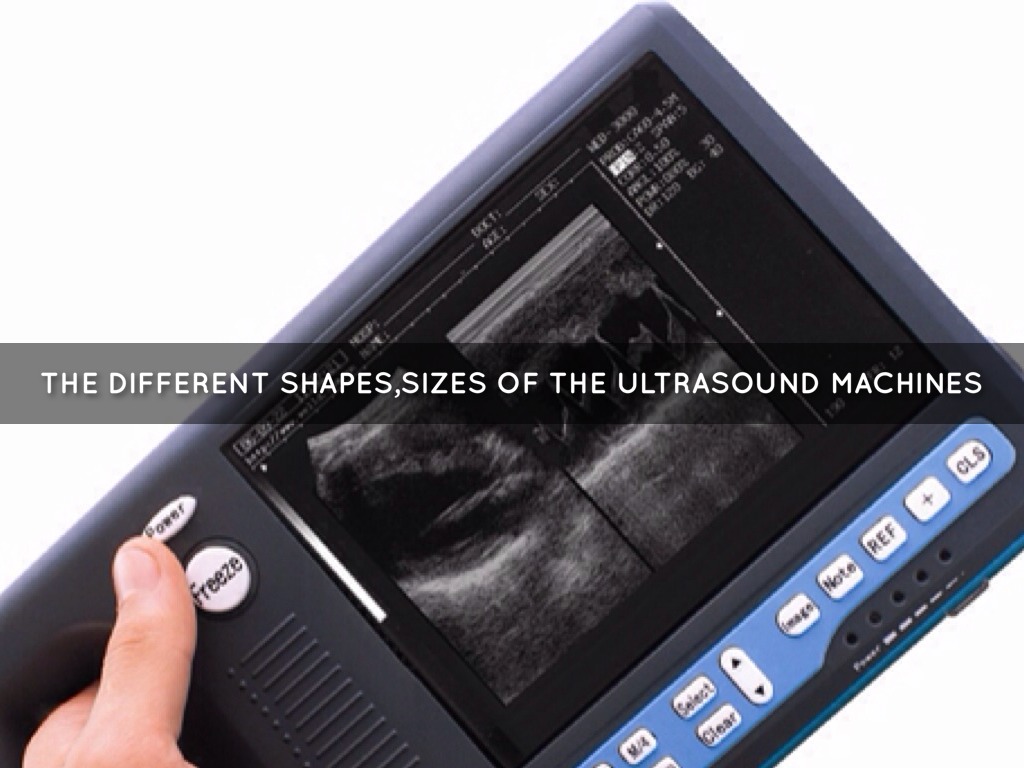

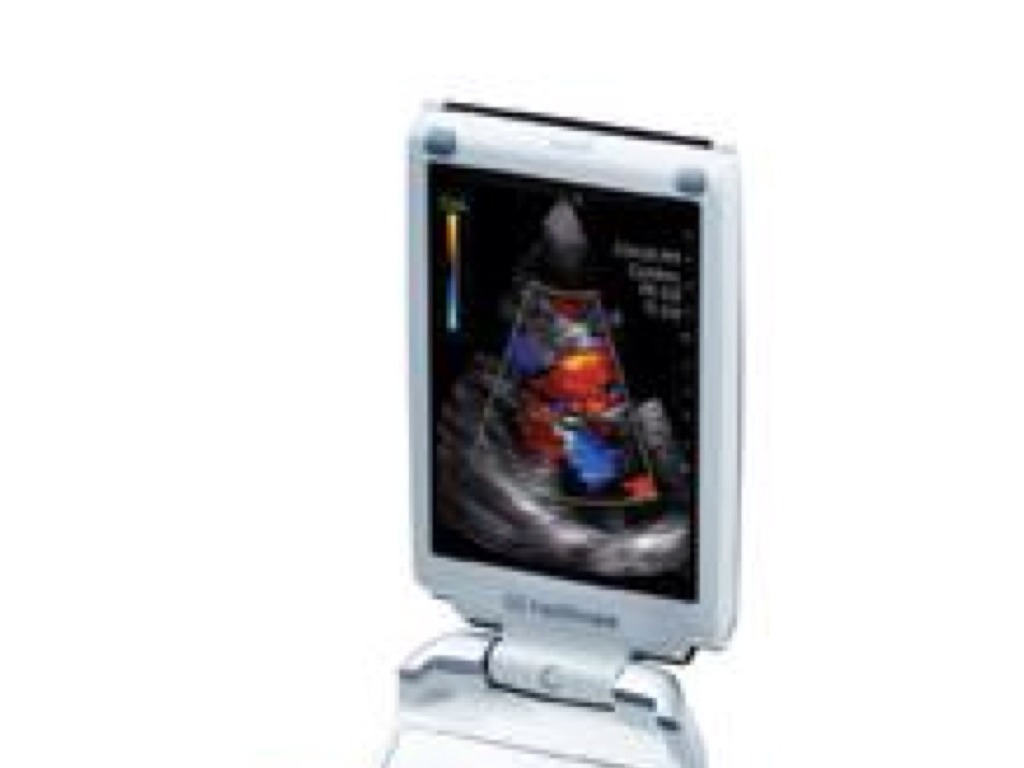

THE DIFFERENT SHAPES,SIZES OF THE ULTRASOUND MACHINES
Untitled Slide
Untitled Slide
Untitled Slide
Untitled Slide

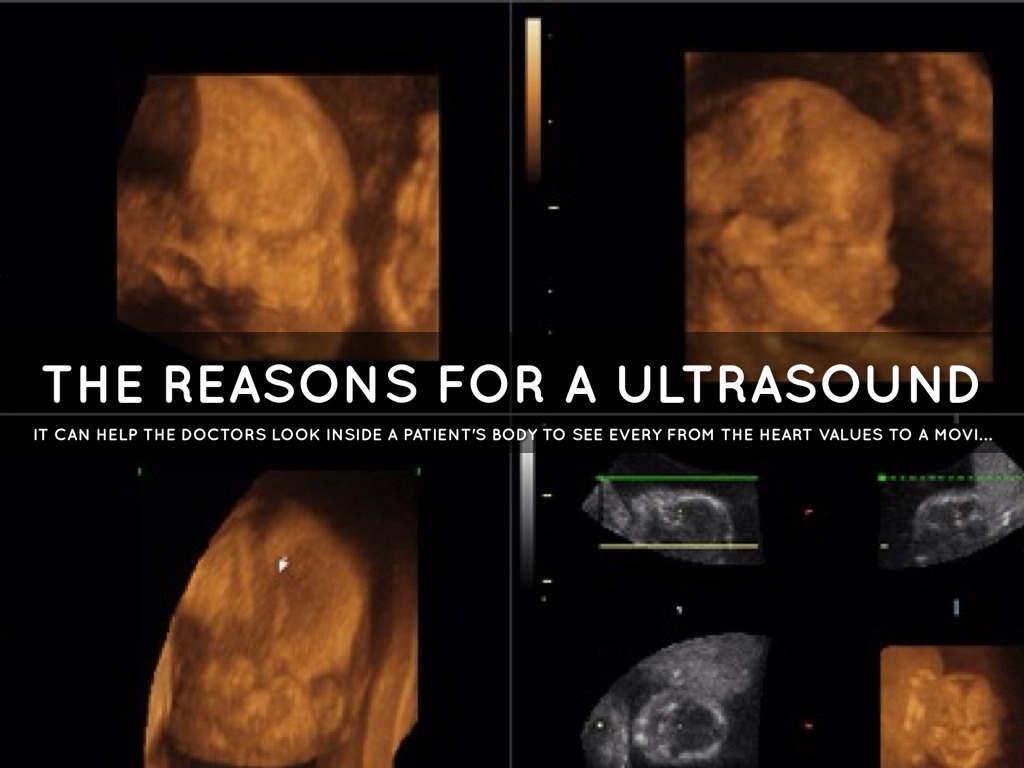

The reasons for a ultrasound
IT CAN HELP THE DOCTORS LOOK INSIDE A PATIENT'S BODY TO SEE EVERY FROM THE HEART VALUES TO A MOVING BABY AND THE DUE DATE ALSO THE SEX OF THE BABY...

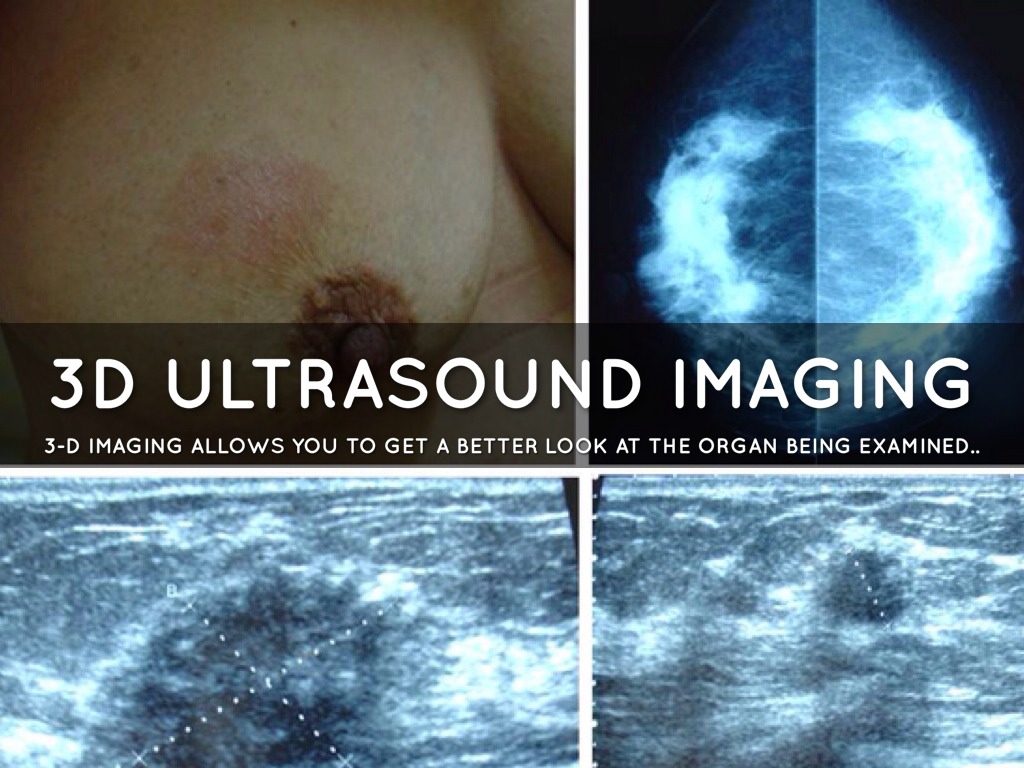

3D ULTRASOUND IMAGING
3-D IMAGING ALLOWS YOU TO GET A BETTER LOOK AT THE ORGAN BEING EXAMINED..
DOPPLER UNTRASOUND

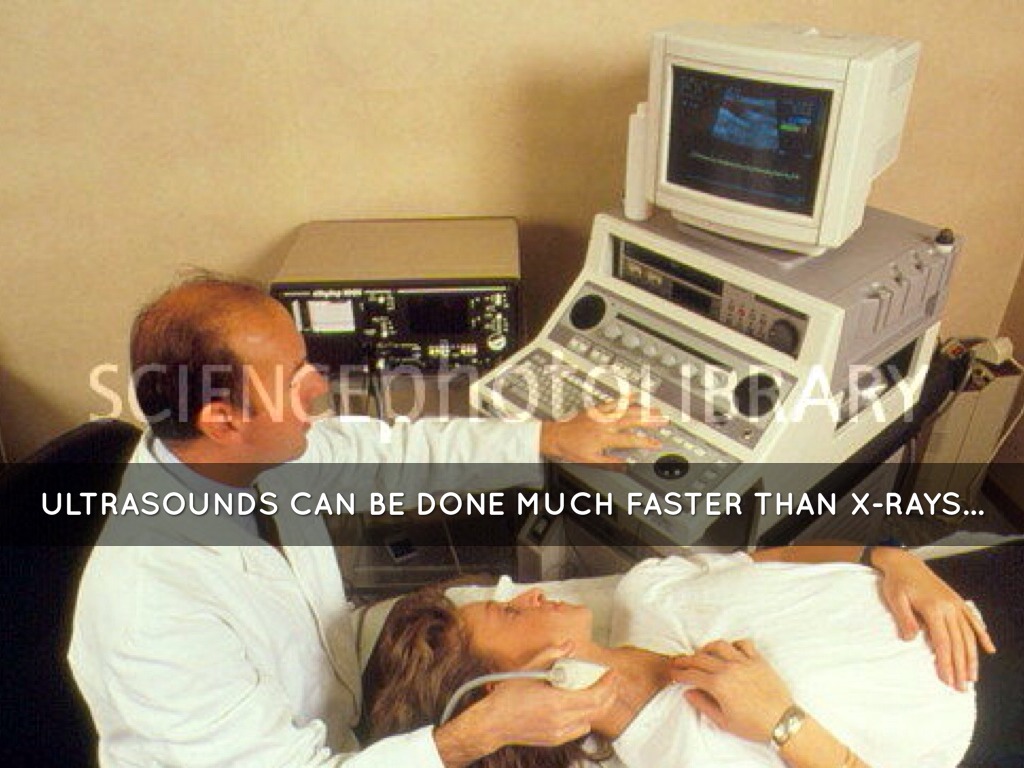

ULTRASOUNDS CAN BE DONE MUCH FASTER THAN X-RAYS...
By: mary long
THANK YOU...
