TYPES OF CIRCUIT PROTECTION

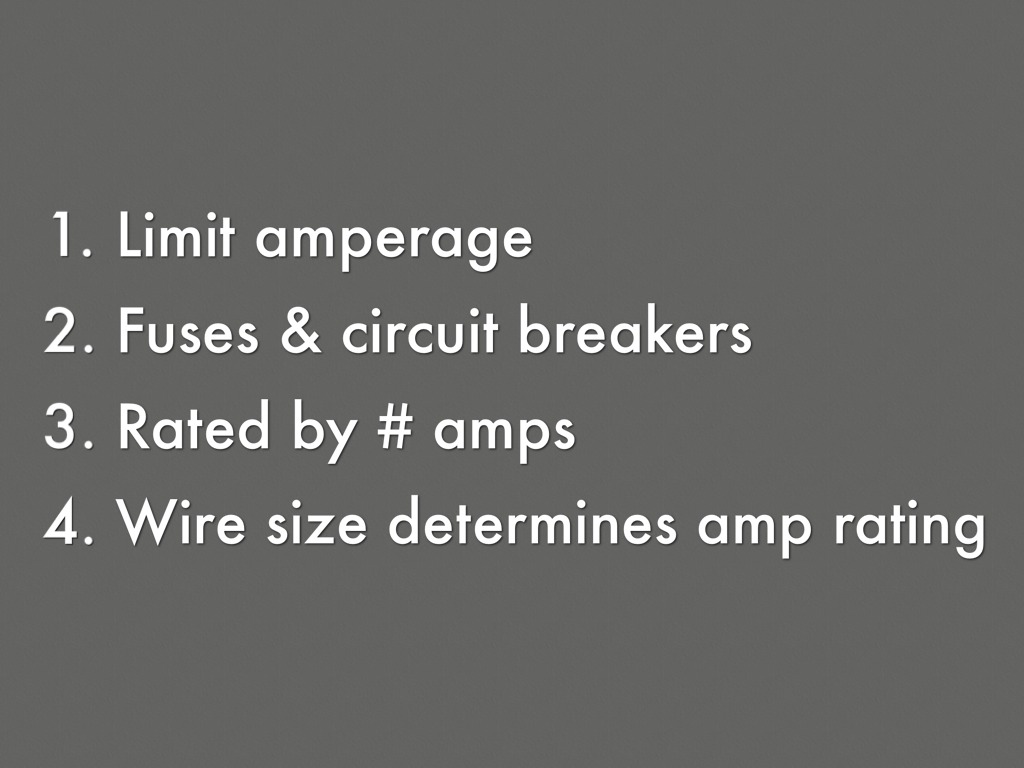

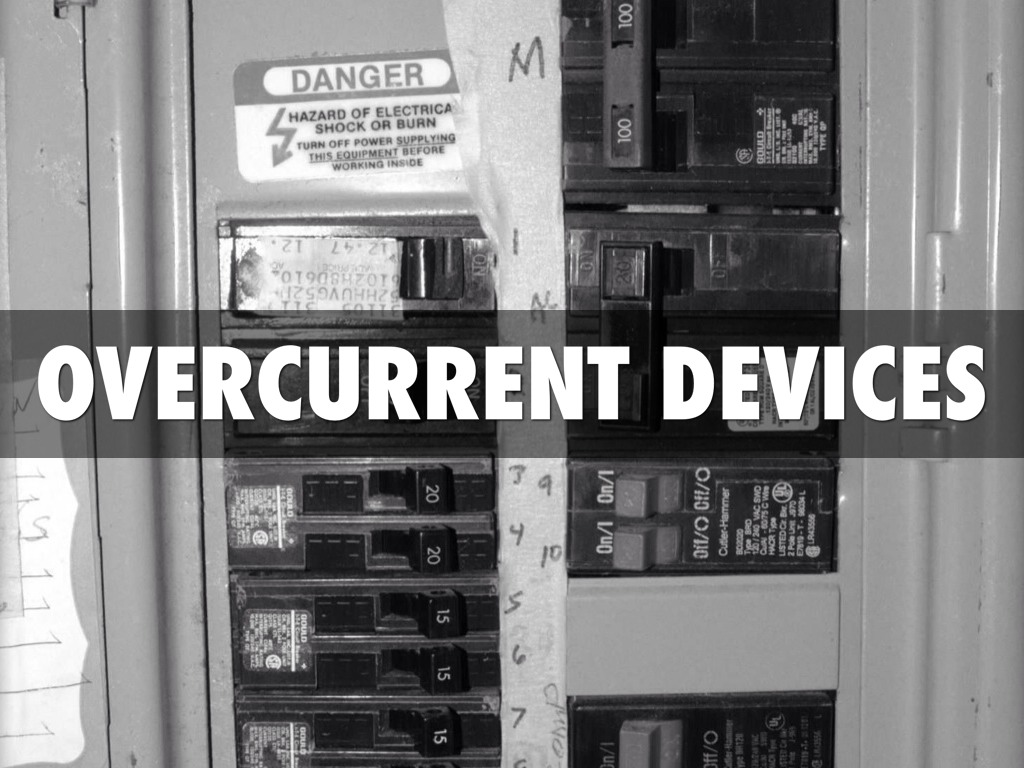

OVERCURRENT DEVICES

Untitled Slide

• Limit amperage
• Fuses & circuit breakers
• Rated by # amps
• Wire size determines amp rating

FUSE

CIRCUIT BREAKER

GROUND FAULT CIRCUIT INTERRUPTER

CONDUCTOR

Untitled Slide

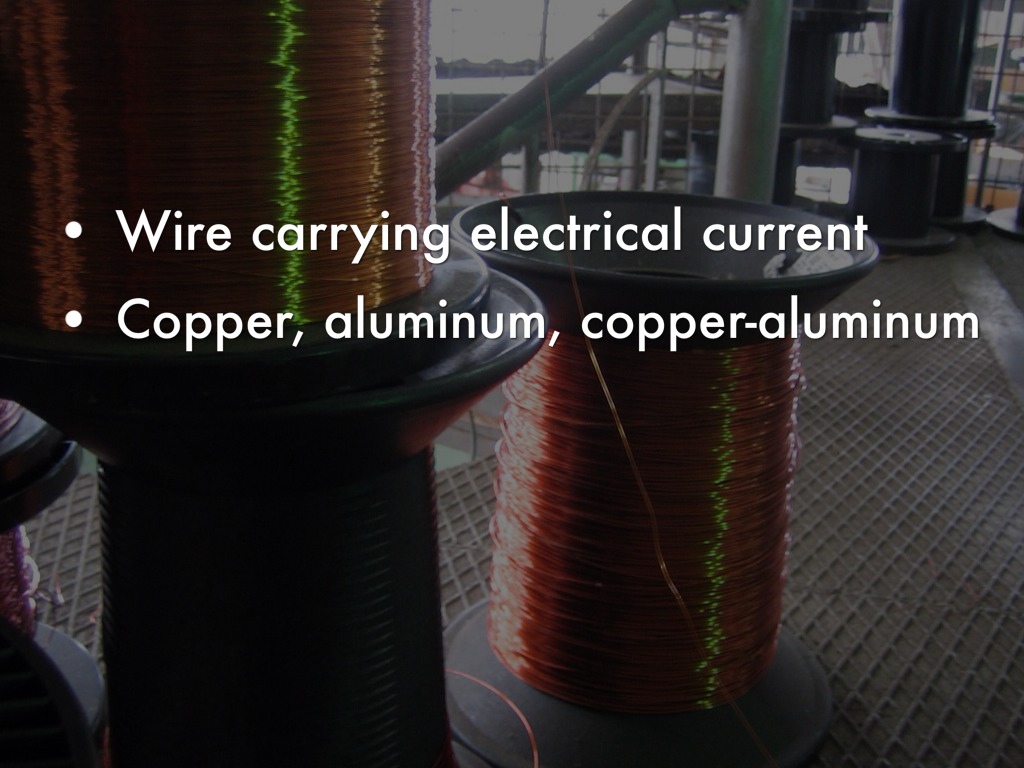

• Wire carrying electrical current
• Copper, aluminum, copper-aluminum

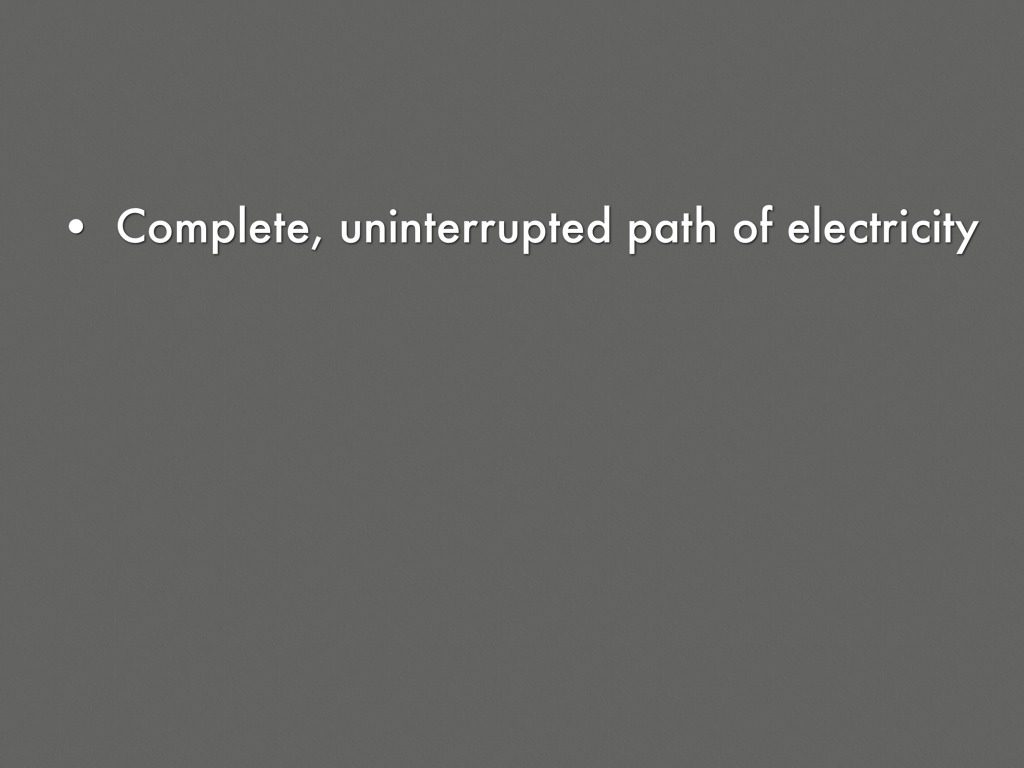

CIRCUIT

Untitled Slide

• Complete, uninterrupted path of electricity

POSITIVE WIRE

Untitled Slide

• Acts as conductor of power
• Red or black

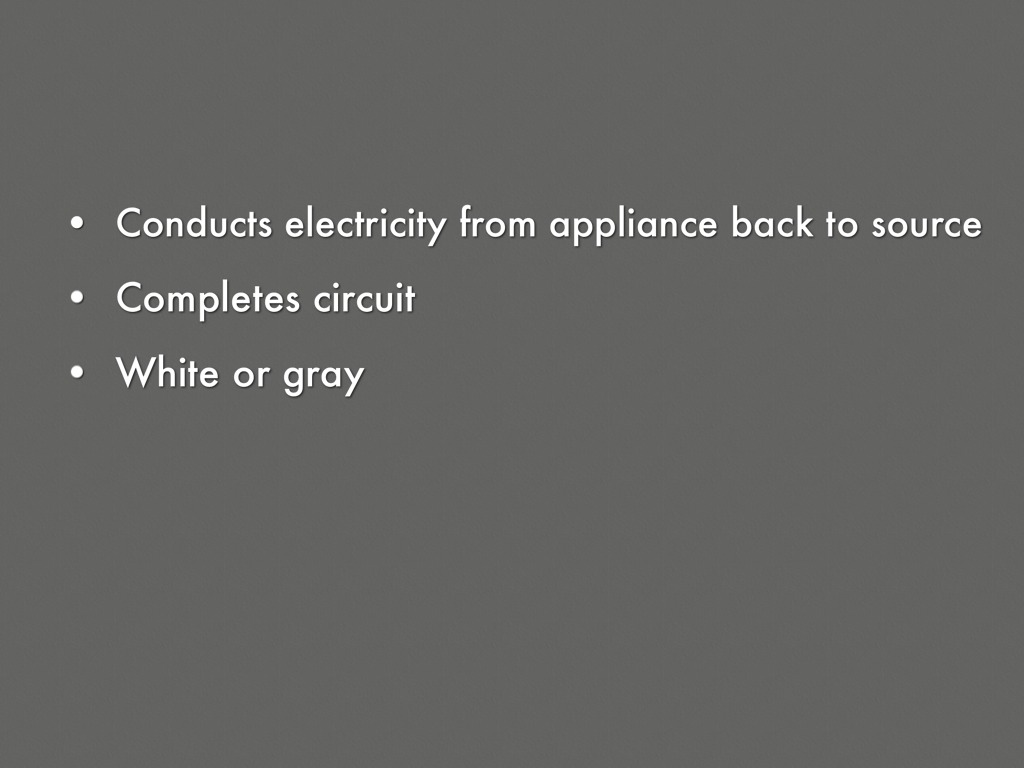

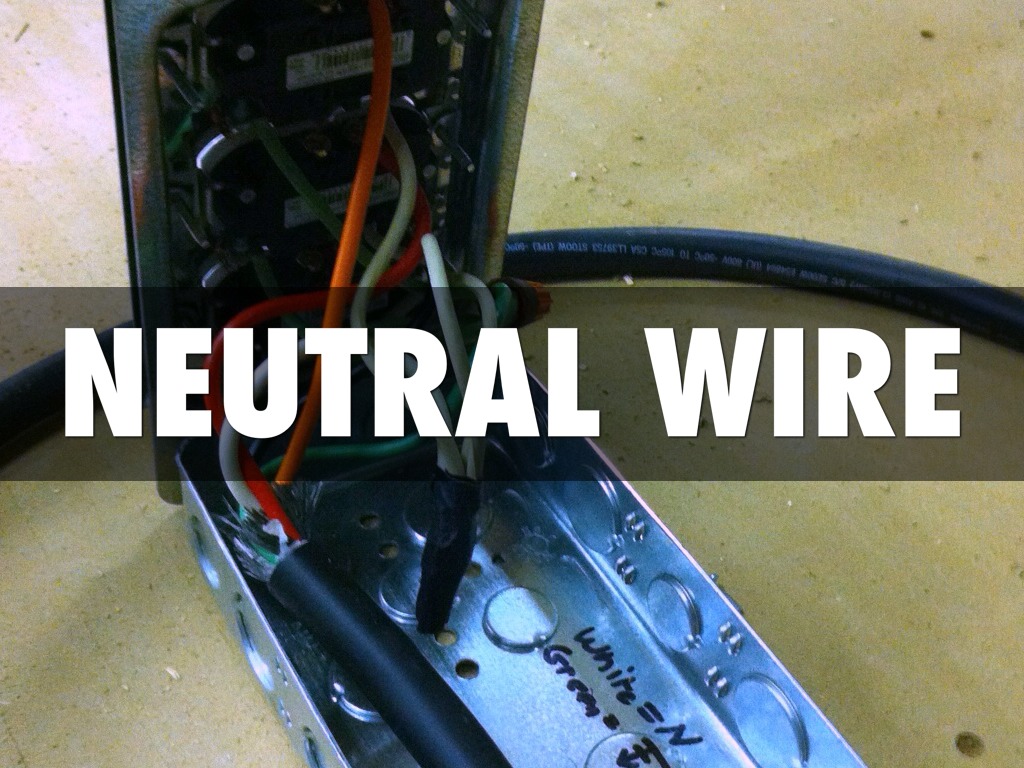

NEUTRAL WIRE

Untitled Slide

• Conducts electricity from appliance back to source
• Completes circuit
• White or gray

INSULATION

Untitled Slide

• Protective covering
• Plastic or rubber

GROUNDING

Untitled Slide

• Connection from appliance to earth

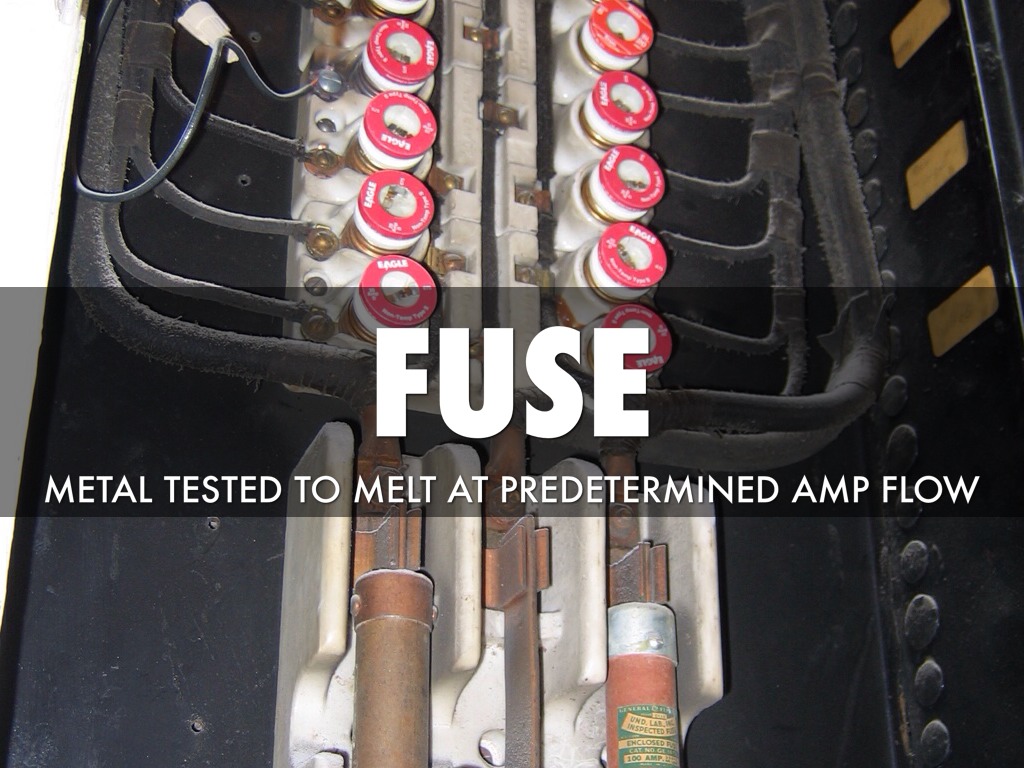

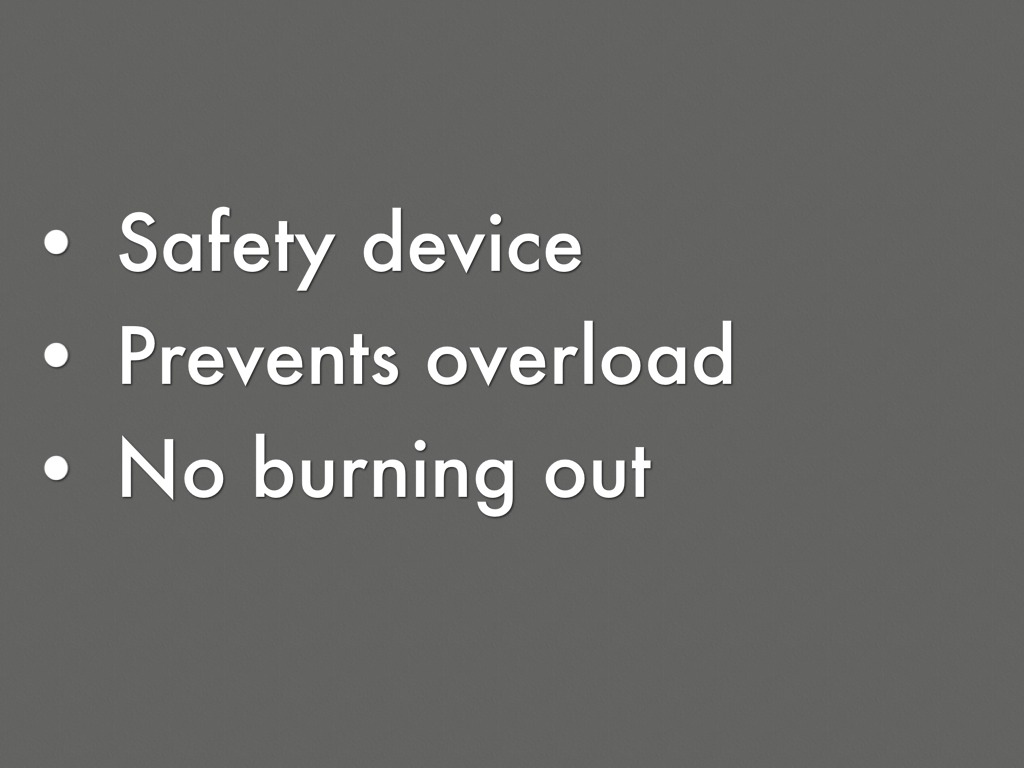

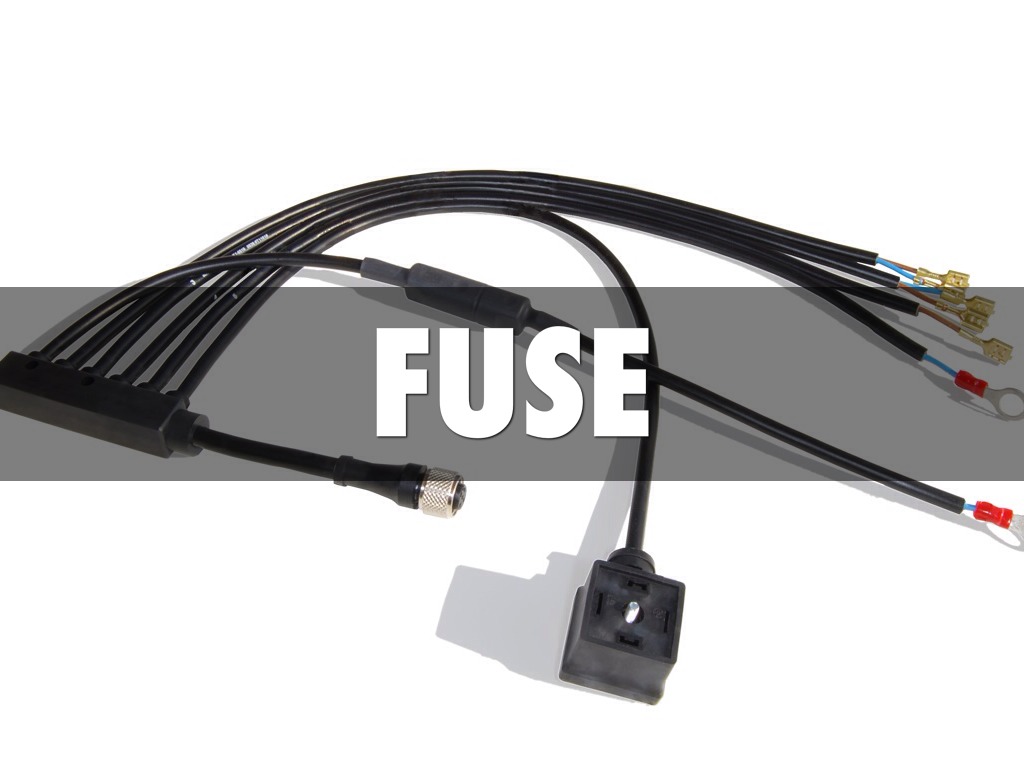

FUSE

Untitled Slide

• Safety device
• Prevents overload
• No burning out

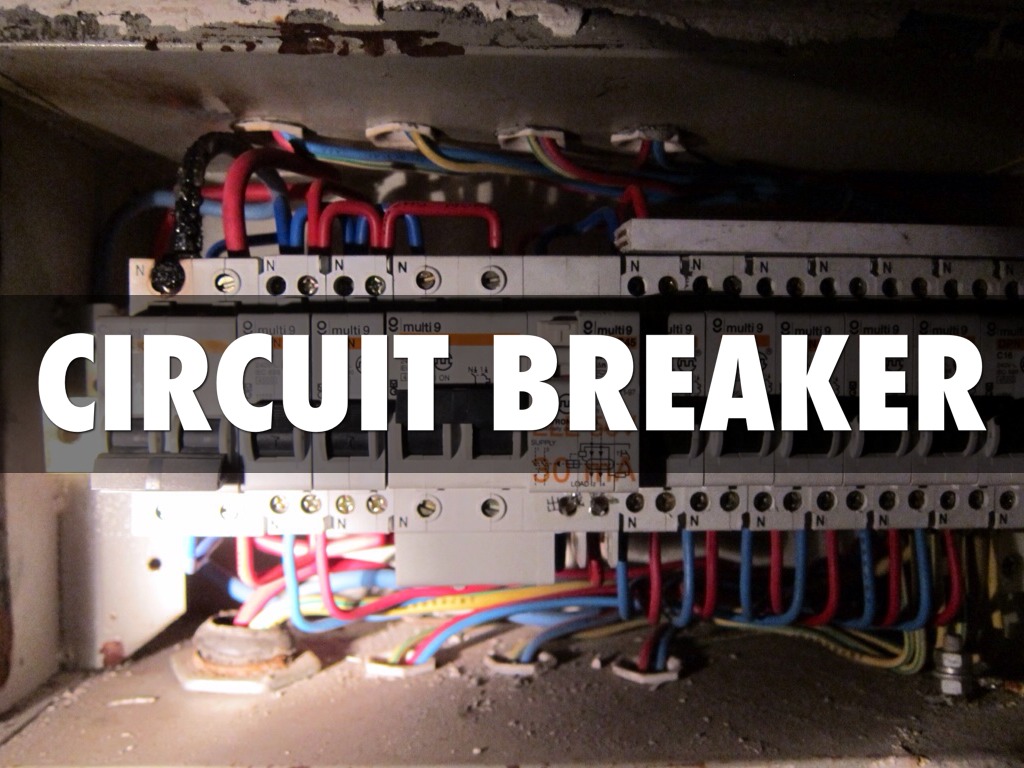

CIRCUIT BREAKER

Untitled Slide

• Switch
• Breaks current when overloads

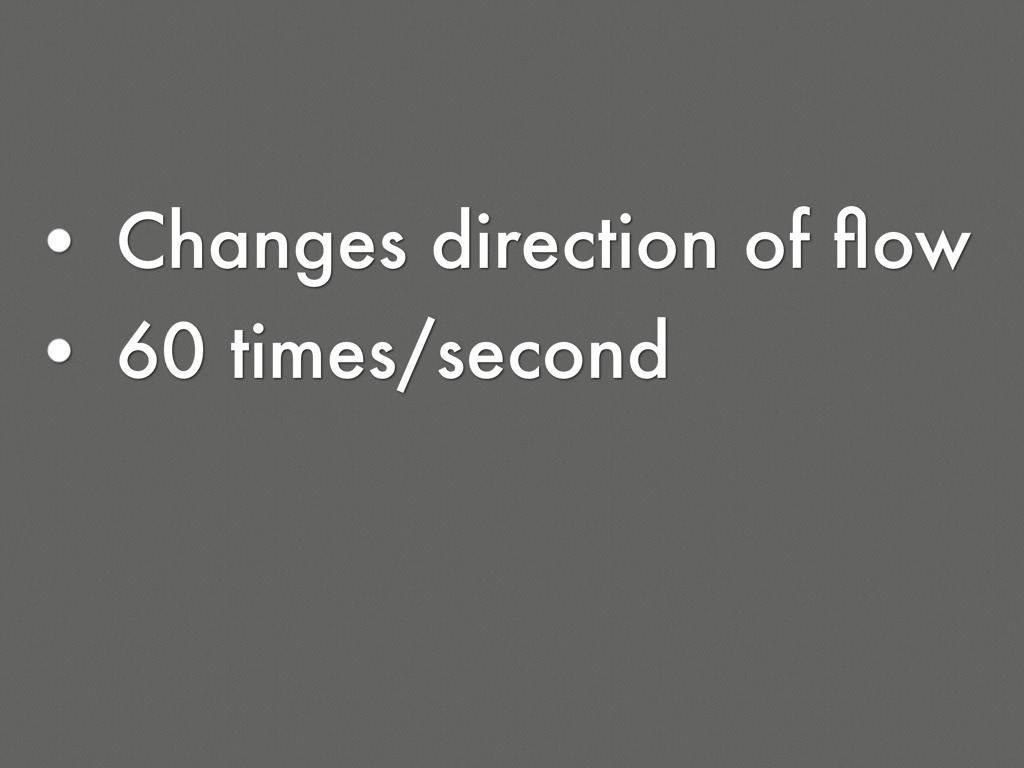

ALTERNATING CURRENT

Untitled Slide

• Changes direction of flow
• 60 times/second

DIRECT CURRENT

Untitled Slide

• One direction
• Produced by generator or battery

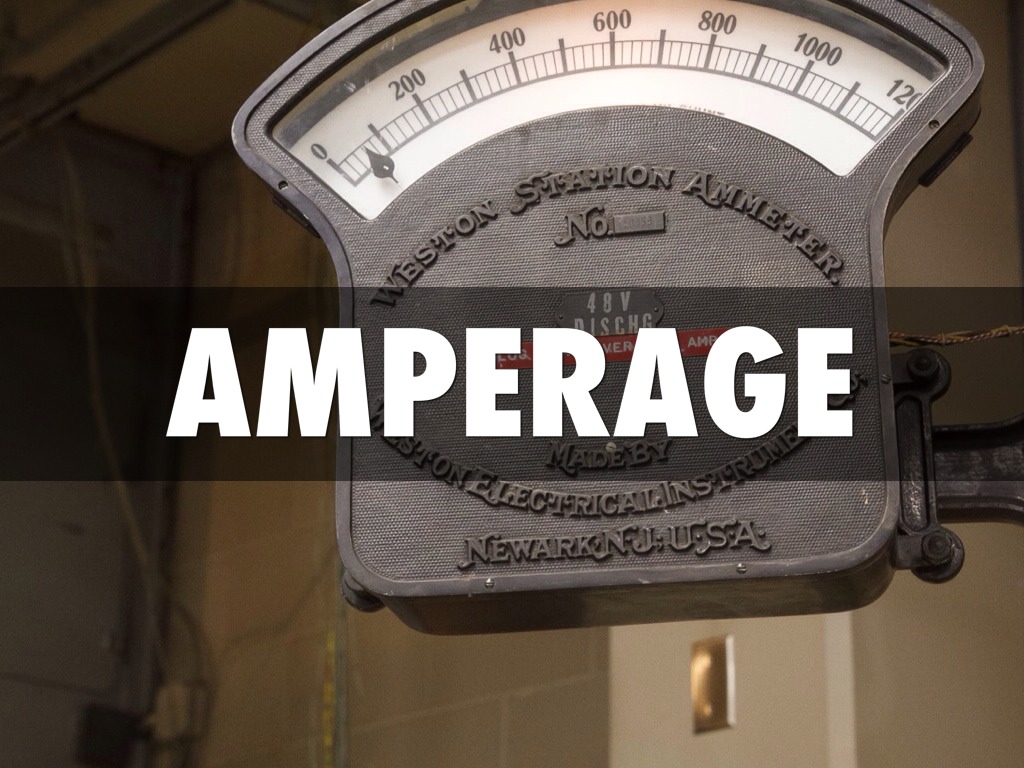

AMPERAGE

Untitled Slide

• Measure of
• Flow of current through system
• Amperes or amps (A)

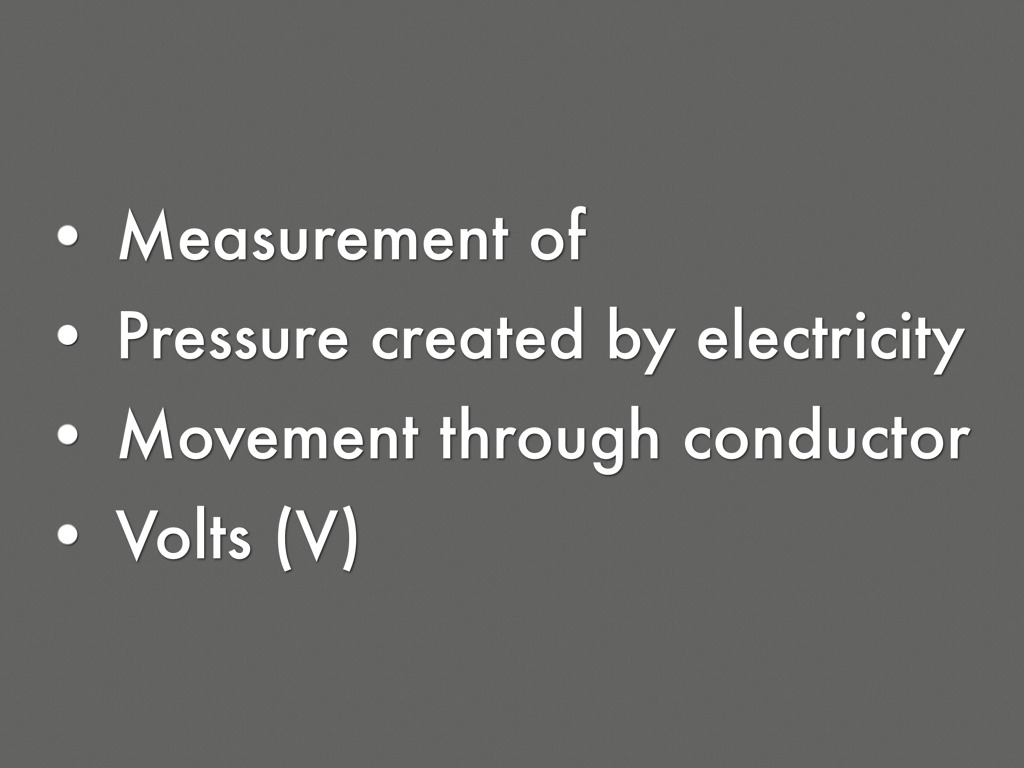

VOLTAGE

Untitled Slide

• Measurement of
• Pressure created by electricity
• Movement through conductor
• Volts (V)

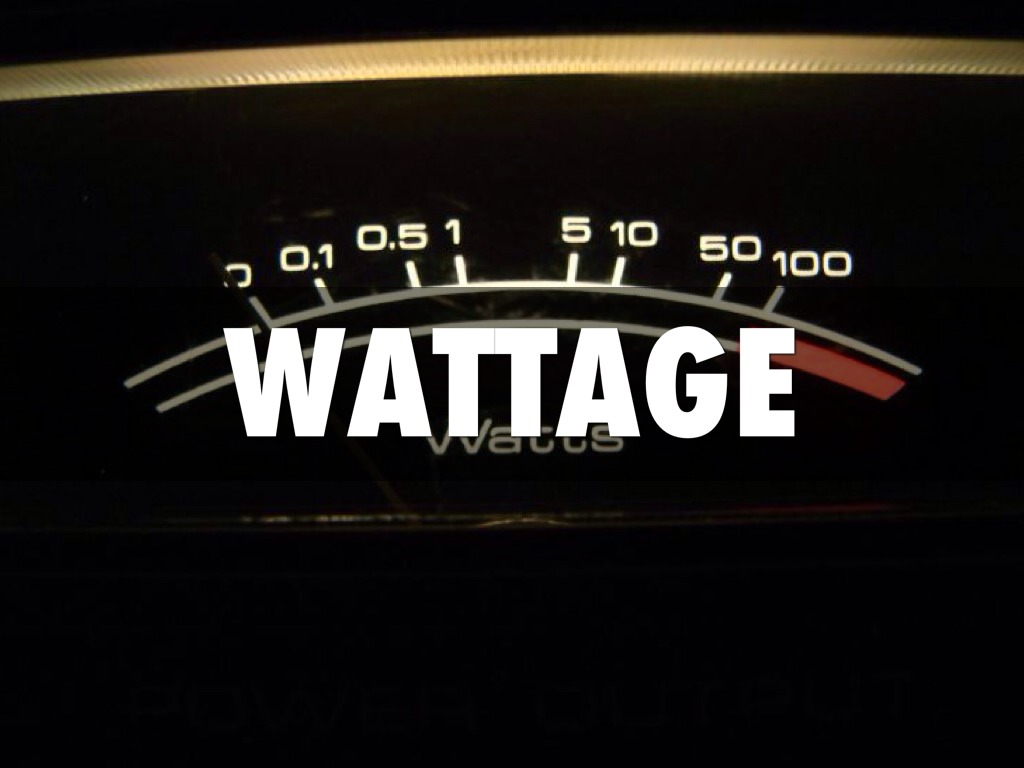

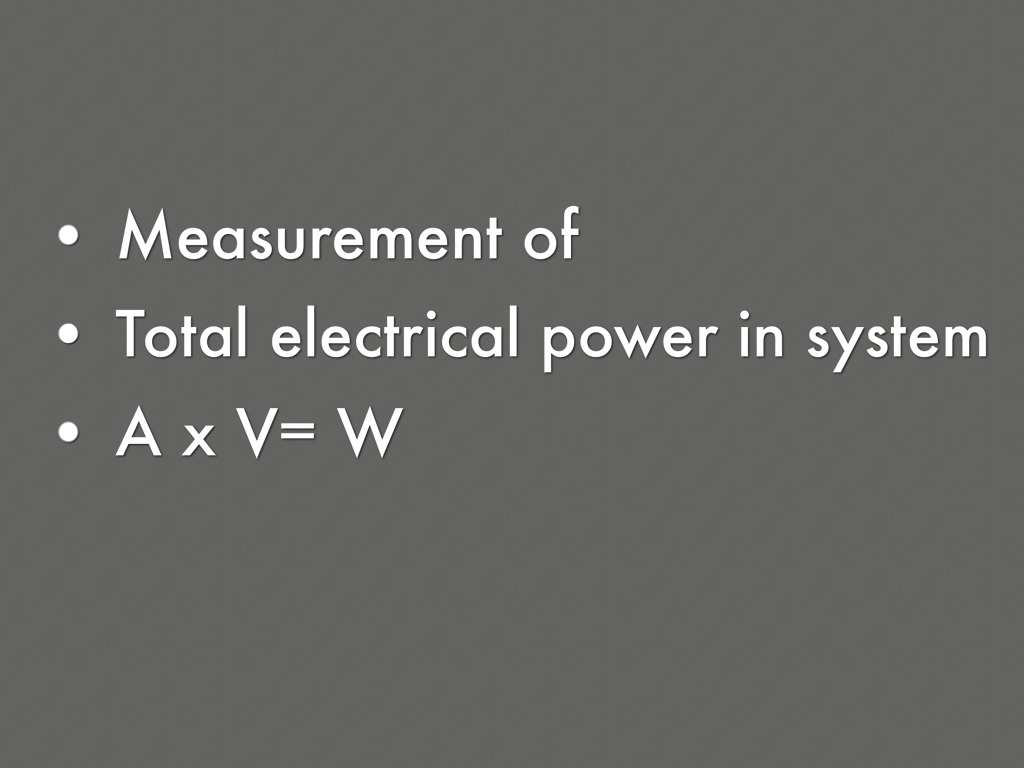

WATTAGE

Untitled Slide

• Measurement of
• Total electrical power in system
• A x V= W

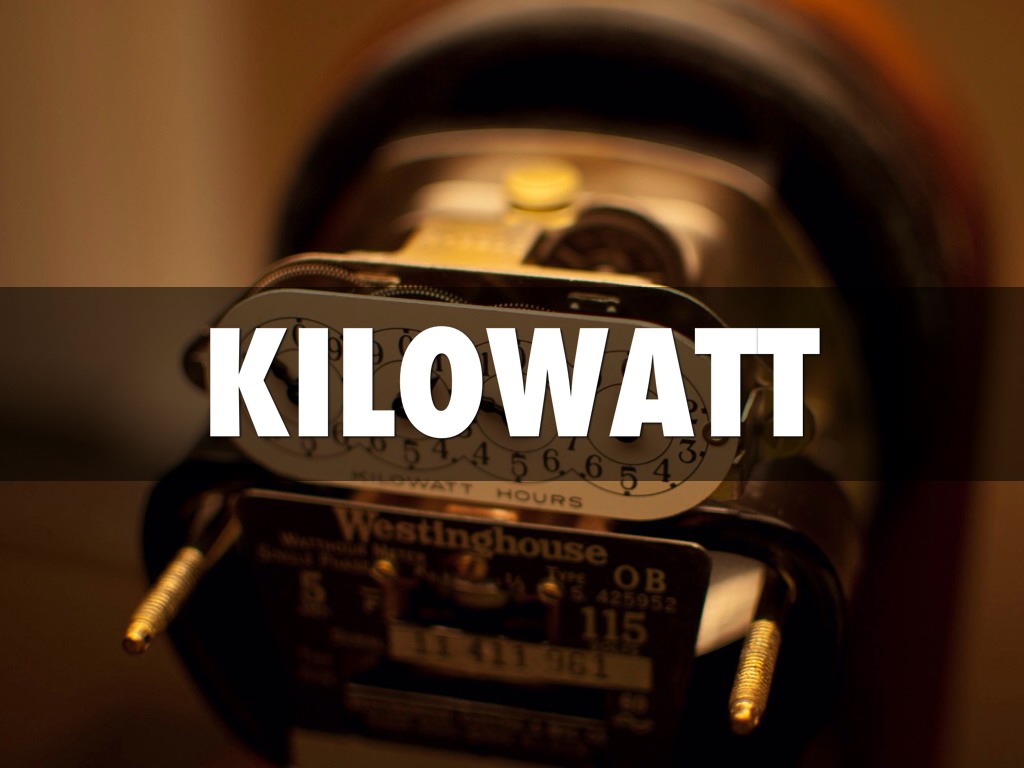

KILOWATT

Untitled Slide

• 1000 watts

RESISTANCE

Untitled Slide

• Opposition to flow through conductor
• Measured in ohms

VOLTAGE DROP

Untitled Slide

• Loss of pressure from source to pt of use

SHORT CIRCUIT

Untitled Slide

• Wires in same circuit contact
• Flow moves leaves intended path

NEC
