TYPES OF BRIDGES
BY KAYLA , JESSICA , CELINE , AND GABBY
Photo by
Maarten Takens
2.
BEAM BRIDGES
Strongest and simplest type of bridge
Stiff
Resists bending and twisting under loads
Supported by horizontal beams at each beam at each need by piers
Photo by
cogdogblog
3.
ARCH BRIDGES
Supporting elements
One of the oldest types of bridges
Made of concrete and steel
Has Great strength
Photo by
Jim Nix / Nomadic Pursuits
4.
TRUSS BRIDGES
Connected by triangular units
One of the oldest types of modern bridges
Usually not very long in length
Made of timber, iron, steel, and concrete
Photo by
Peter J. Martel
5.
SUSPENSION BRIDGES
Suspend roadway by cables, ropes, or chains from two tall towers
Towers support the weight from bridges
Can be built high flexible
May need closures for earthquakes
Photo by
peddhapati
6.
WEAKNESSES OF BEAM BRIDGES
can be very expensive due to the piers that help hold the bridge
they don't work well for long periods of time
cannot span more than 250 ft due to the wight in the middle of the bridge
Photo by
Universal Pops (David)--Badly Needs Bandwidth
7.
WEAKNESSES FOR ARCH BRIDGES
An arch can only stand until it is complete
uses a large amount of material even if it is used for short distance
cannot hold too much in its midpoint
incapable of strength
Photo by
Dimitry B
8.
Weaknesses for truss briges
can easily stress its structure
buckling is common in truss bridges
its bars on the bottom are most likely to give out
Photo by
cmh2315fl
9.
Weakness of suspension bridges
its flexibility can cause too much stress with heavy load
one of the least strong types of bridges
require expensive foundation work
known for its common capability of dangerous stress, most likely to give out
frequently needs to be repaired
Photo by
cmh2315fl
10.
the howqua river bridge: beam bridge
11.

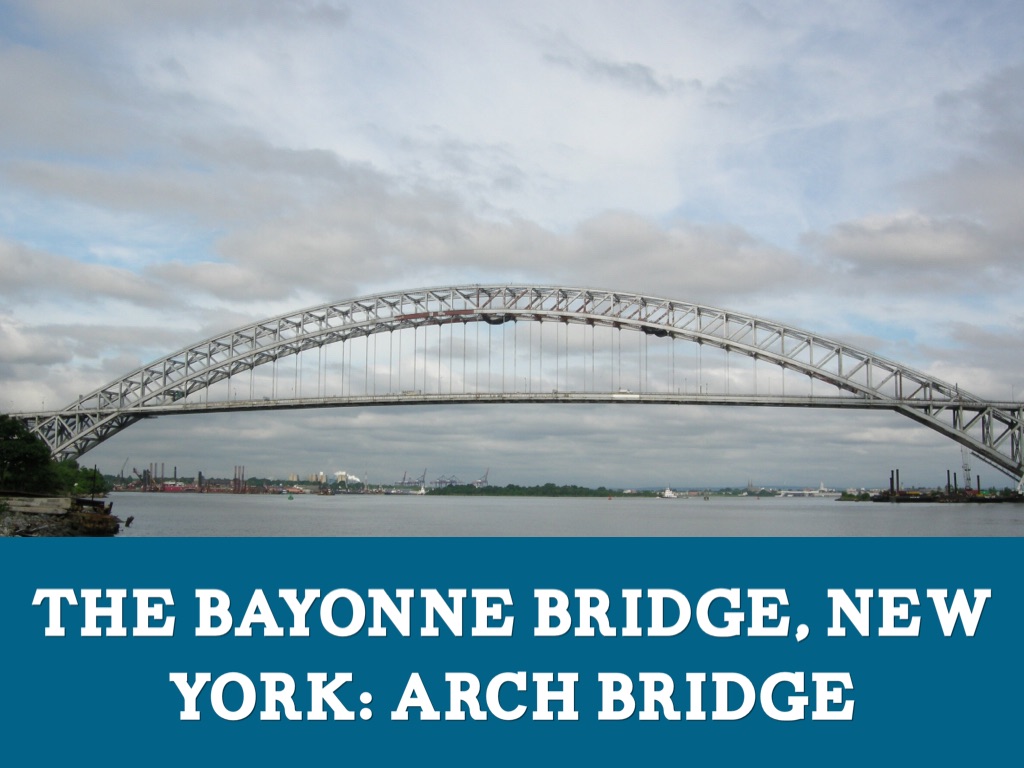

The Bayonne bridge, New York: arch bridge
Photo by
Mélisande*
12.
The Ikitsuki bridge, Japan: truss bridge
Photo by
l e o j
13.

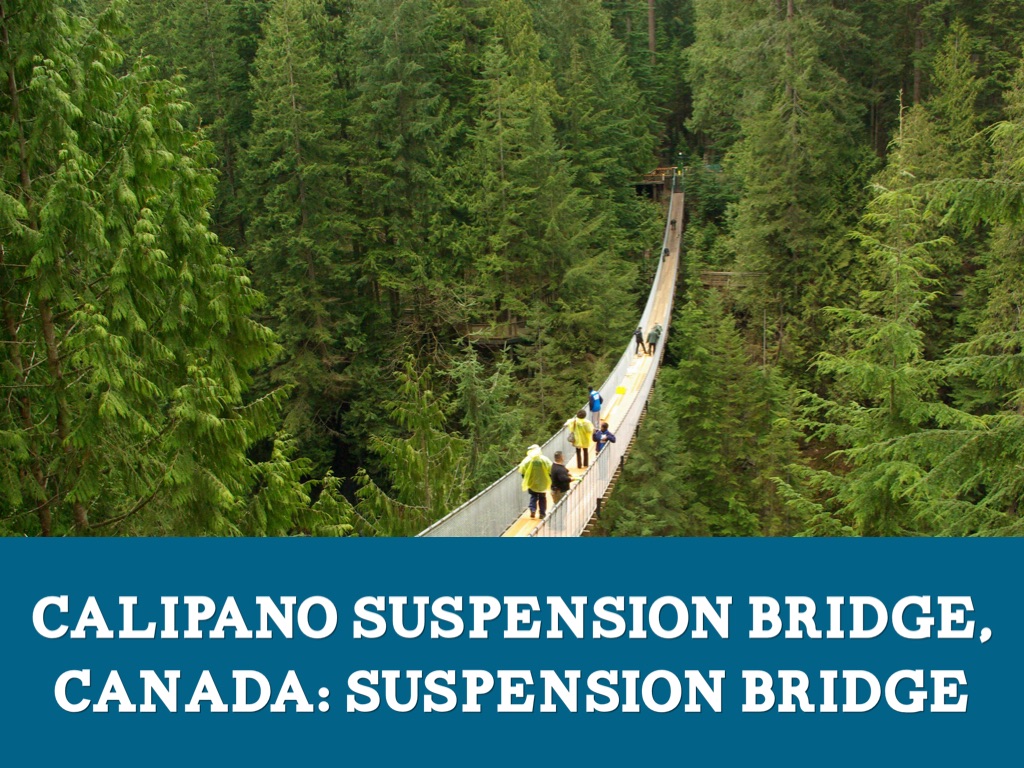

Calipano suspension bridge, Canada: suspension bridge
14.
"Arch Bridges." Arch Bridges. N.p., n.d. Web. 28 Apr. 2015.
Cartmell, Paul. "Advantages & Disadvantages of a Suspension Bridge." EHow. Demand Media, 10 Oct. 2009. Web. 28 Apr. 2015.
Lamb, Robert, and Michael Morrissey. HowStuffWorks.
HowStuffWorks.com
, n.d. Web. 28 Apr. 2015.
