TYPE OF JOINTS

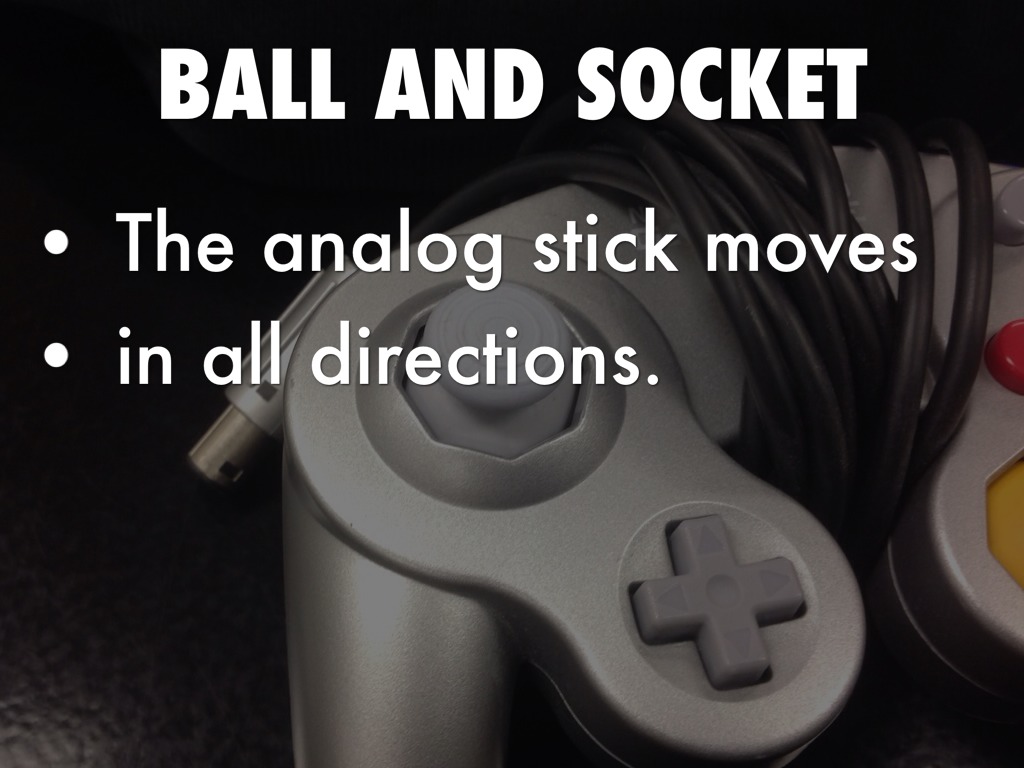

BALL AND SOCKET

• The analog stick moves
• in all directions.

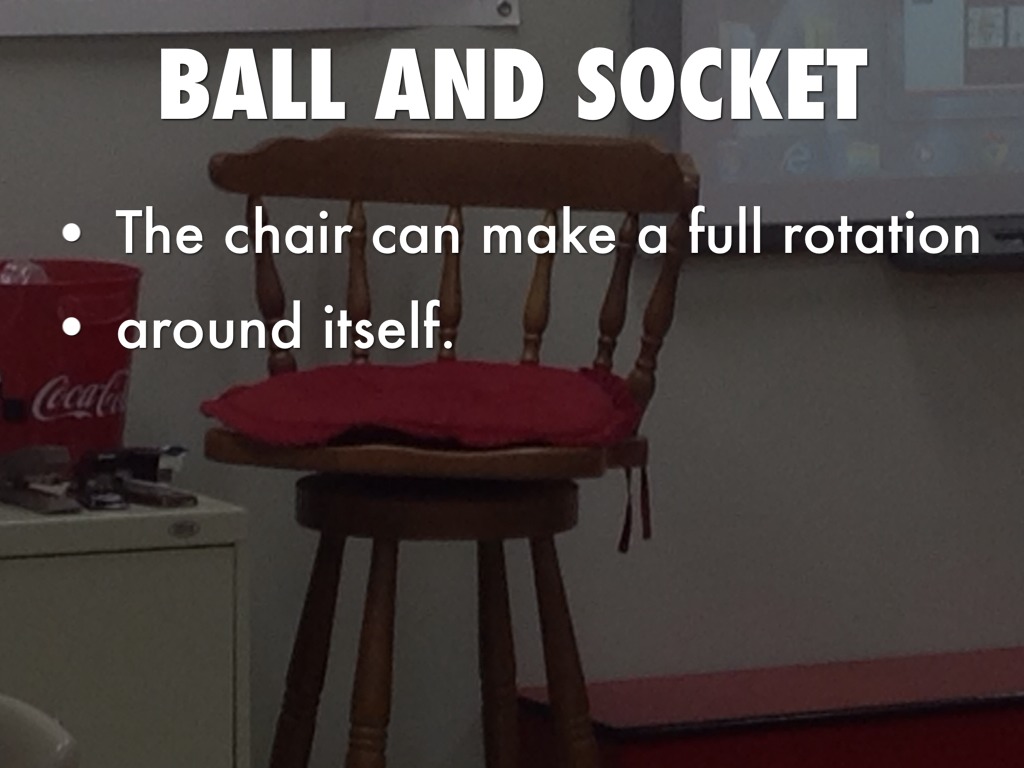

BALL AND SOCKET

• The chair can make a full rotation
• around itself.

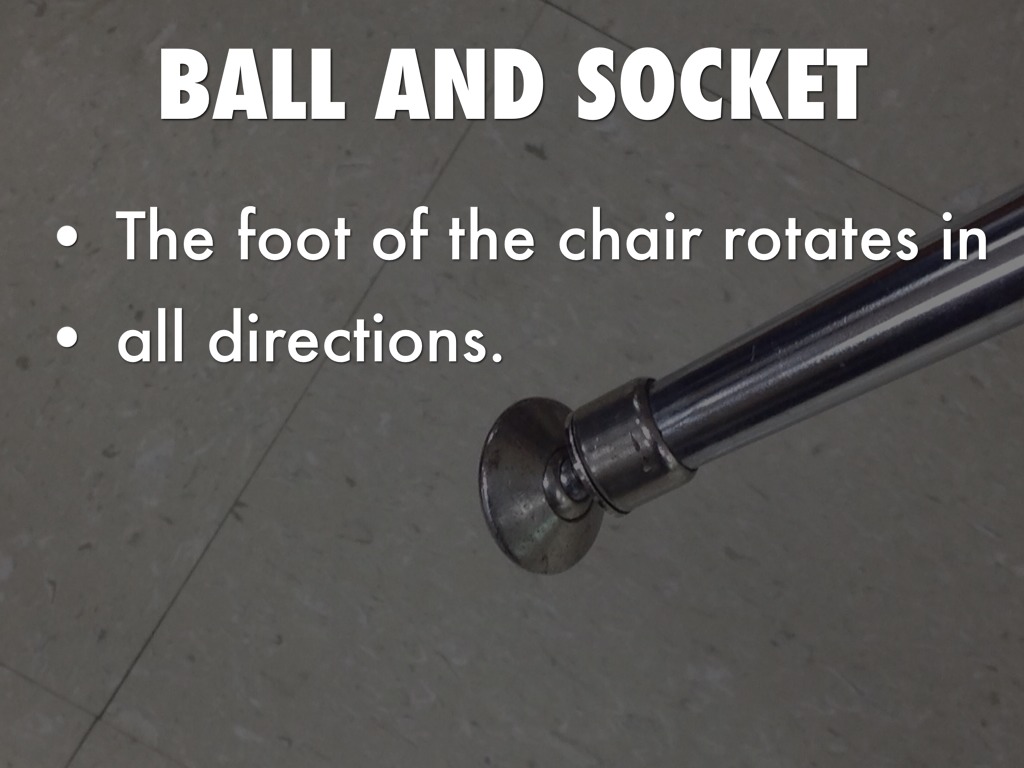

BALL AND SOCKET

• The foot of the chair rotates in
• all directions.

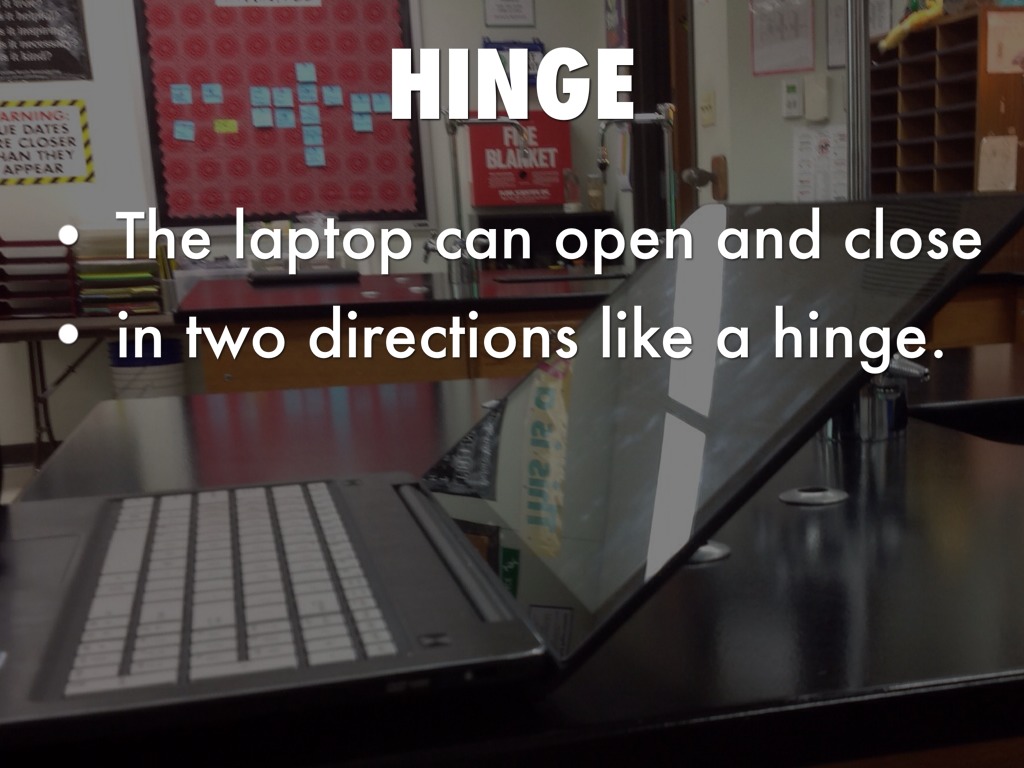

HINGE

• The laptop can open and close
• in two directions like a hinge.

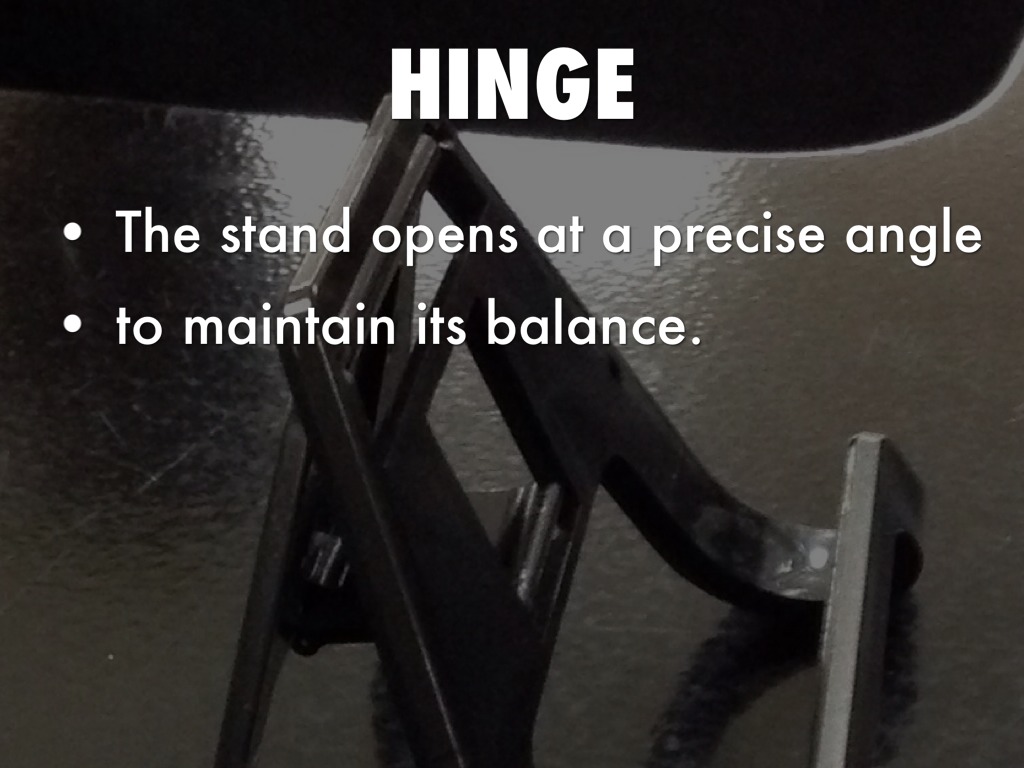

HINGE

• The stand opens at a precise angle
• to maintain its balance.

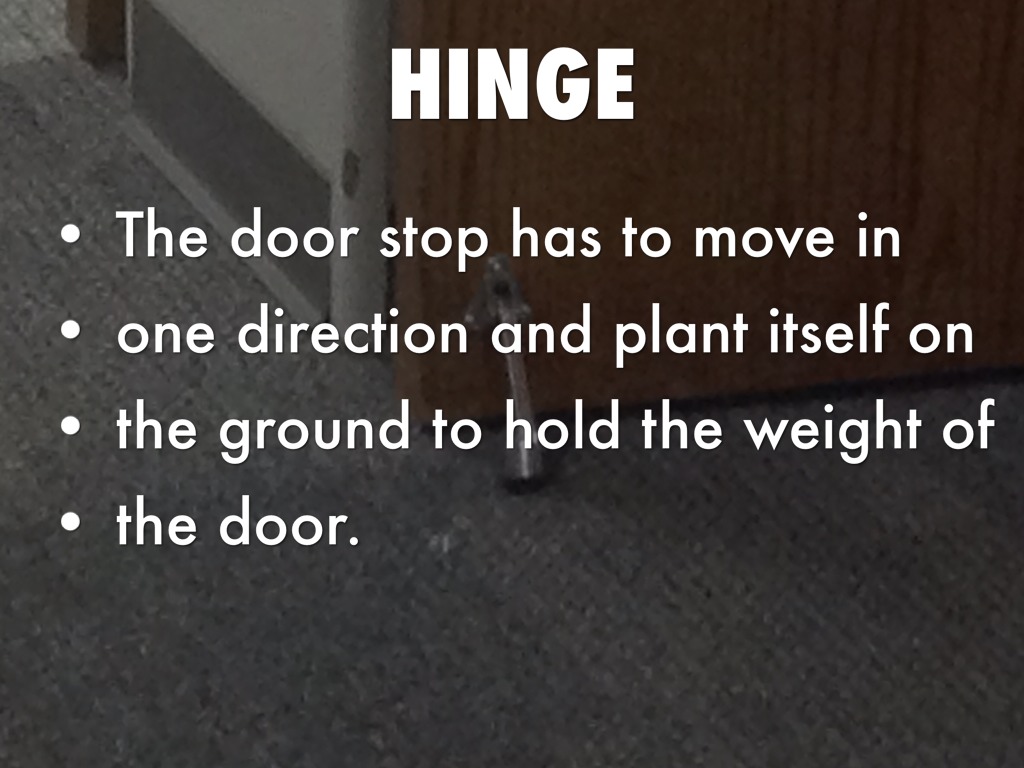

HINGE

• The door stop has to move in
• one direction and plant itself on
• the ground to hold the weight of
• the door.

GLIDING

• One of the two pieces of
• paper is sliding over the other
• ,creating a gliding motion.

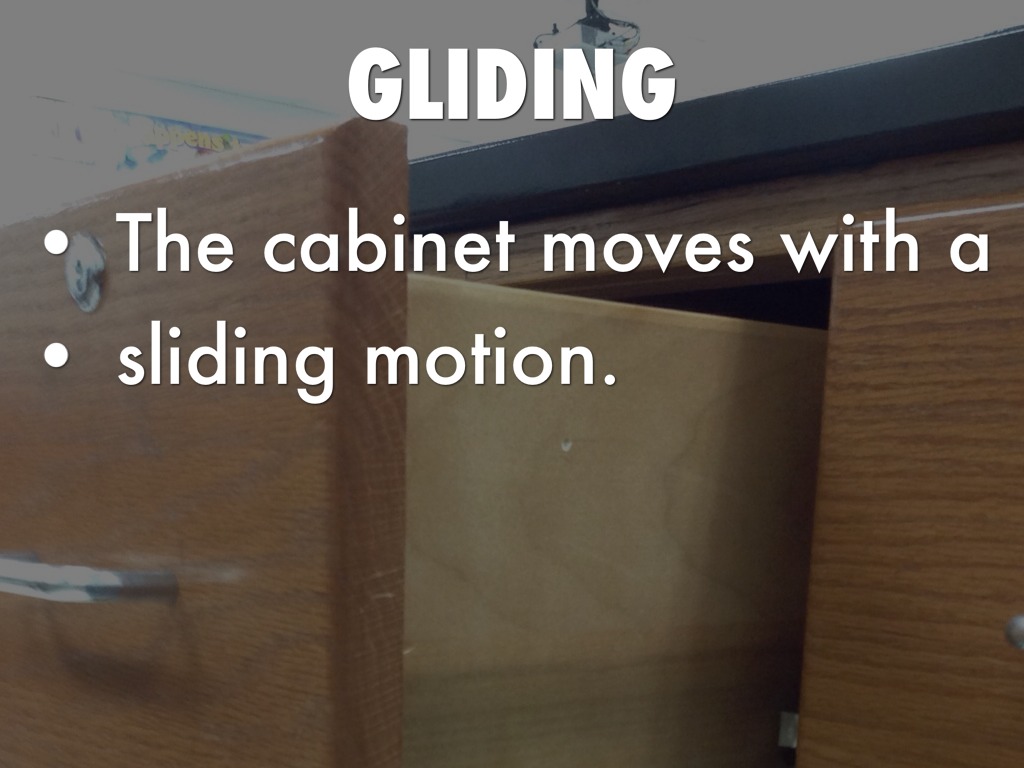

GLIDING

• The cabinet moves with a
• sliding motion.

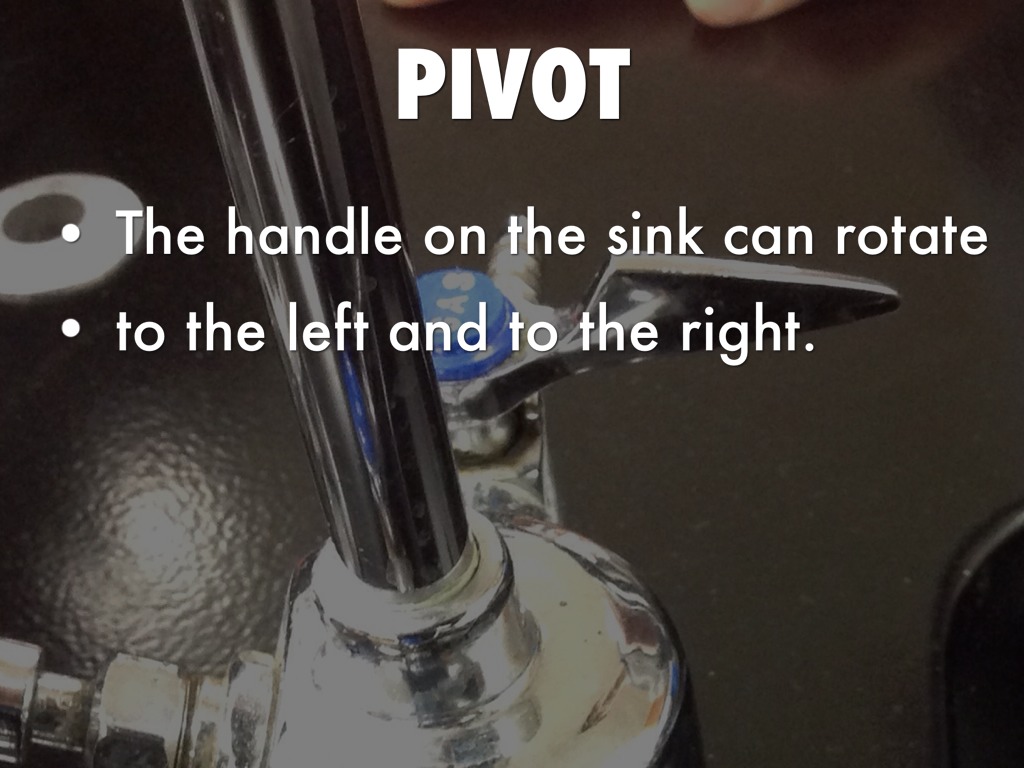

PIVOT

• The handle on the sink can rotate
• to the left and to the right.

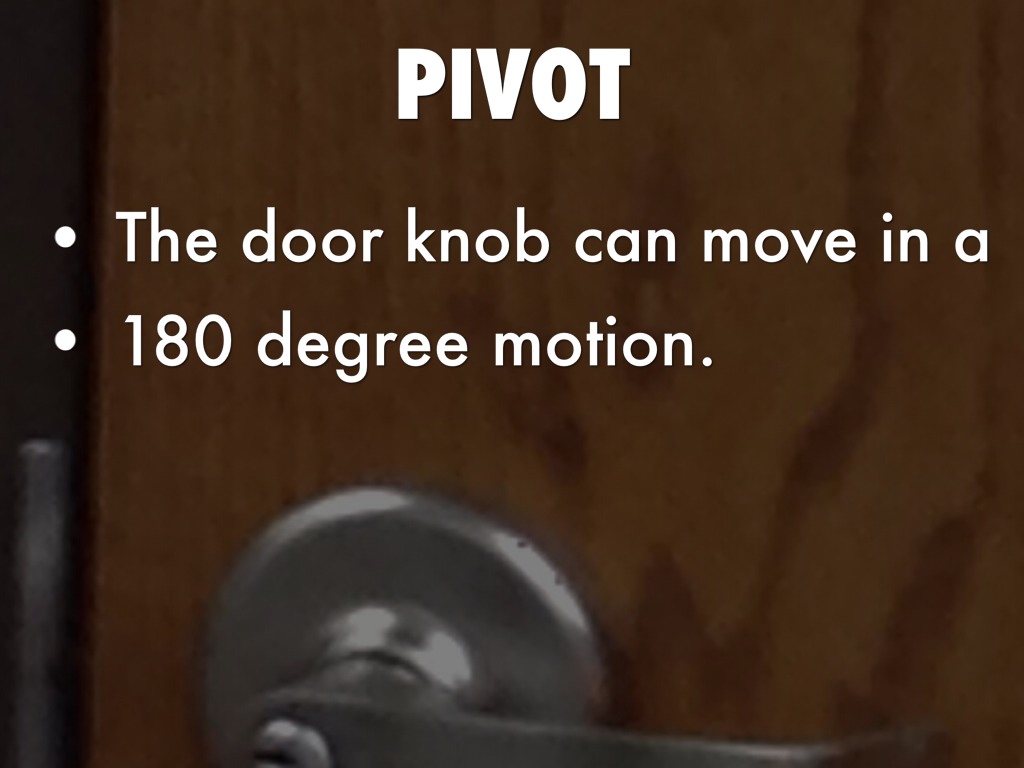

PIVOT

• The door knob can move in a
• 180 degree motion.
