Simple Machines

Published on Nov 20, 2015

No Description

View Outline

MORE DECKS TO EXPLORE

PRESENTATION OUTLINE

1.

Simple Machines

Sydney Matheney
Photo by el cajon yacht club
2.

The Inclined Plane family is...

the inclined plane, wedge, and screw
Photo by Thingo
3.

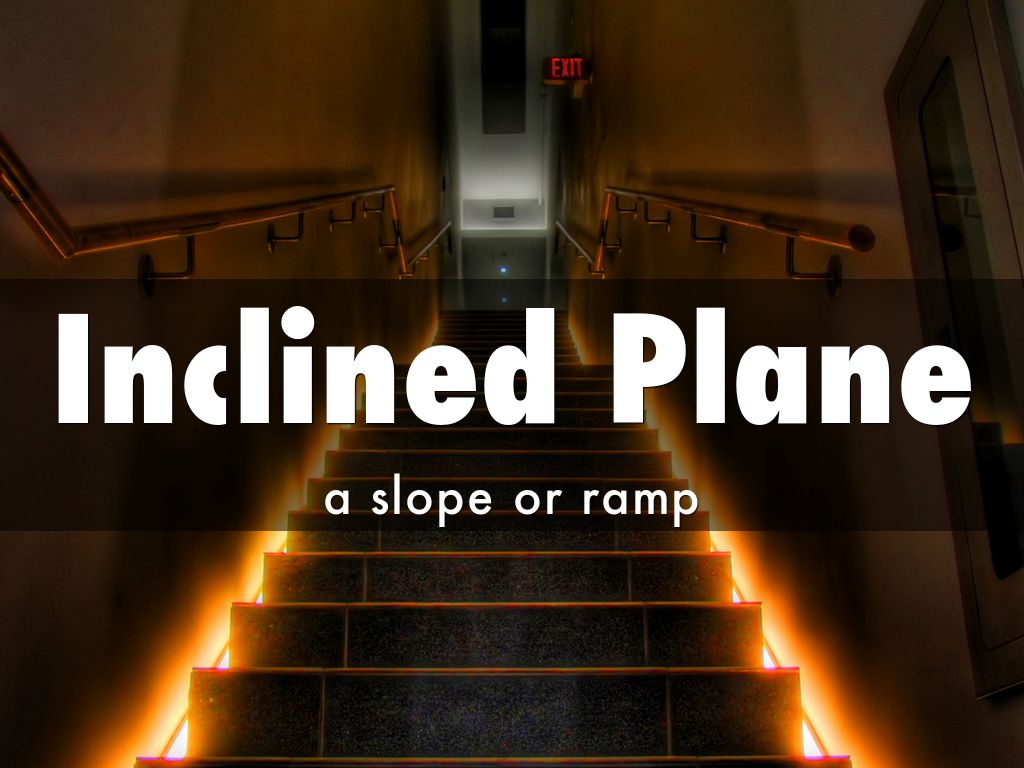

Inclined Plane

a slope or ramp
Photo by ecstaticist
4.

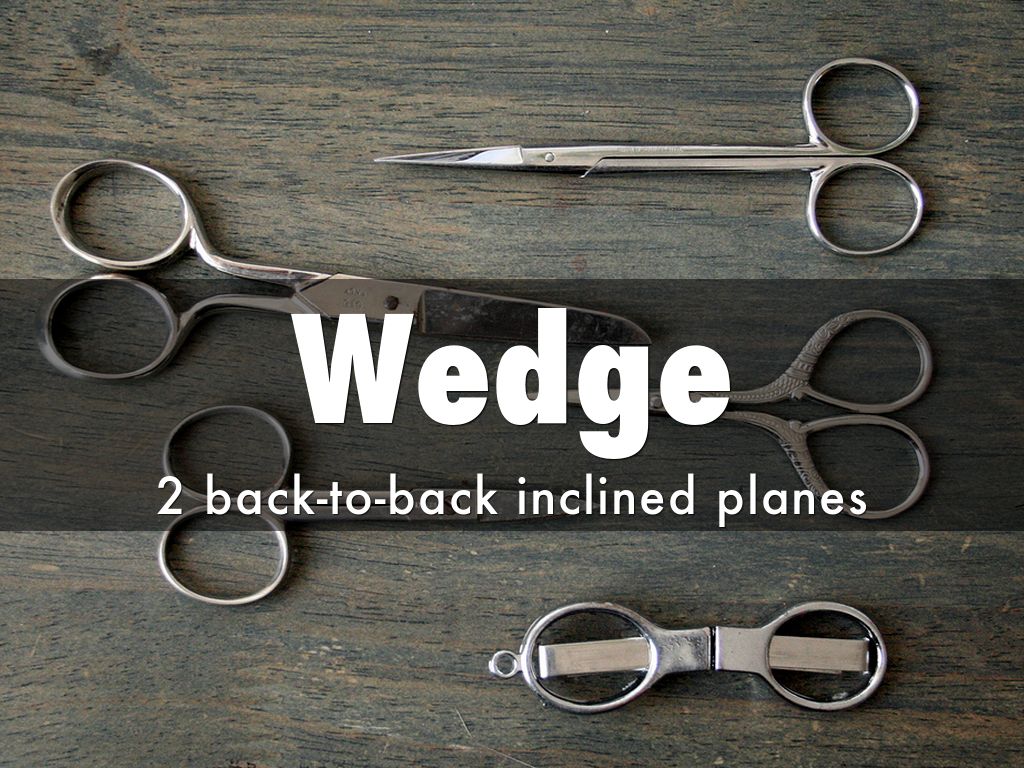

Wedge

2 back-to-back inclined planes
Photo by SerenityRose
5.

Screw

inclined plane wrapped around a cylinder
Photo by Vvillamon
6.

The Lever Family is...

the lever, wheel and axle, and pulley
Photo by Vernon Barford School Library
7.

Lever

tool used to move a load around a pivot point
Photo by nzgabriel
8.

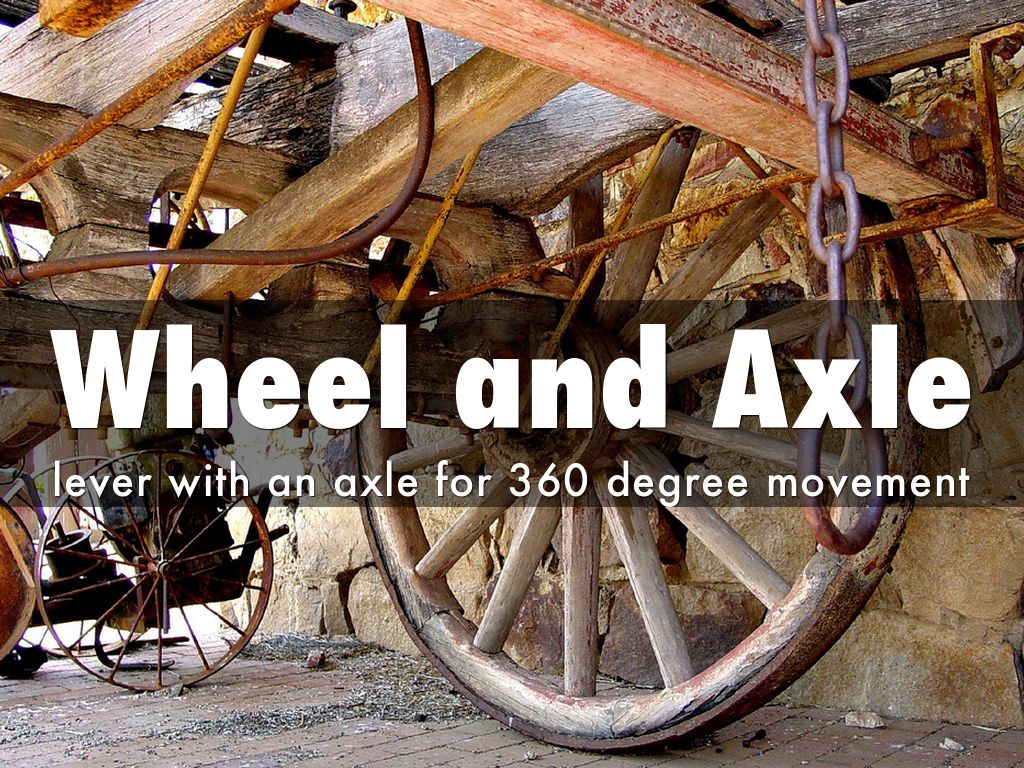

Wheel and Axle

lever with an axle for 360 degree movement
Photo by yewenyi
9.

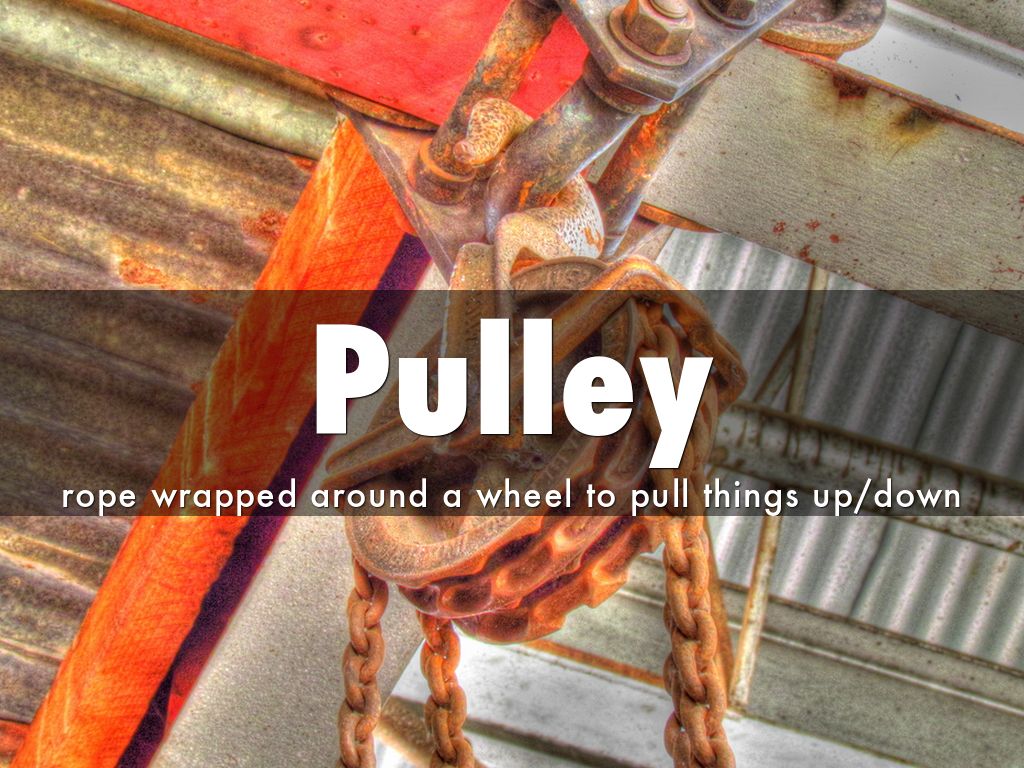

Pulley

rope wrapped around a wheel to pull things up/down
Photo by TaranRampersad
10.

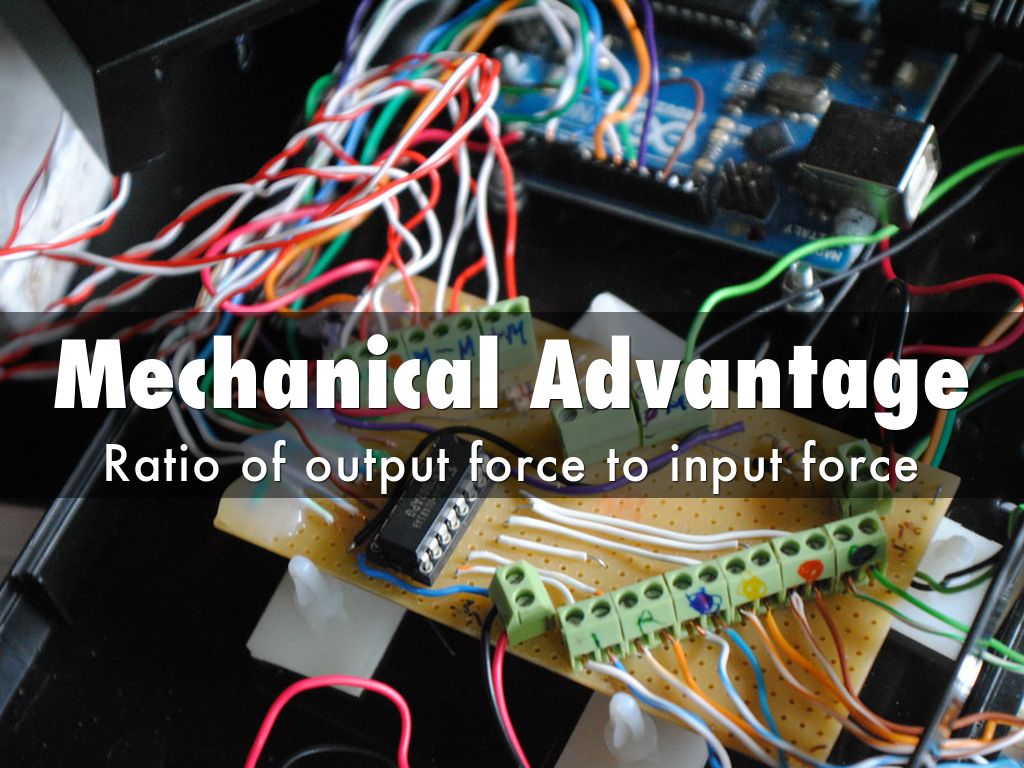

Mechanical Advantage

Ratio of output force to input force
Photo by AlexTheEngineer-IpswichUK
11.

Work

to move things and use force
Photo by bengrey

Sydney Matheney
