Simple Machines

Published on Nov 18, 2015

No Description

View Outline

MORE DECKS TO EXPLORE

PRESENTATION OUTLINE

1.

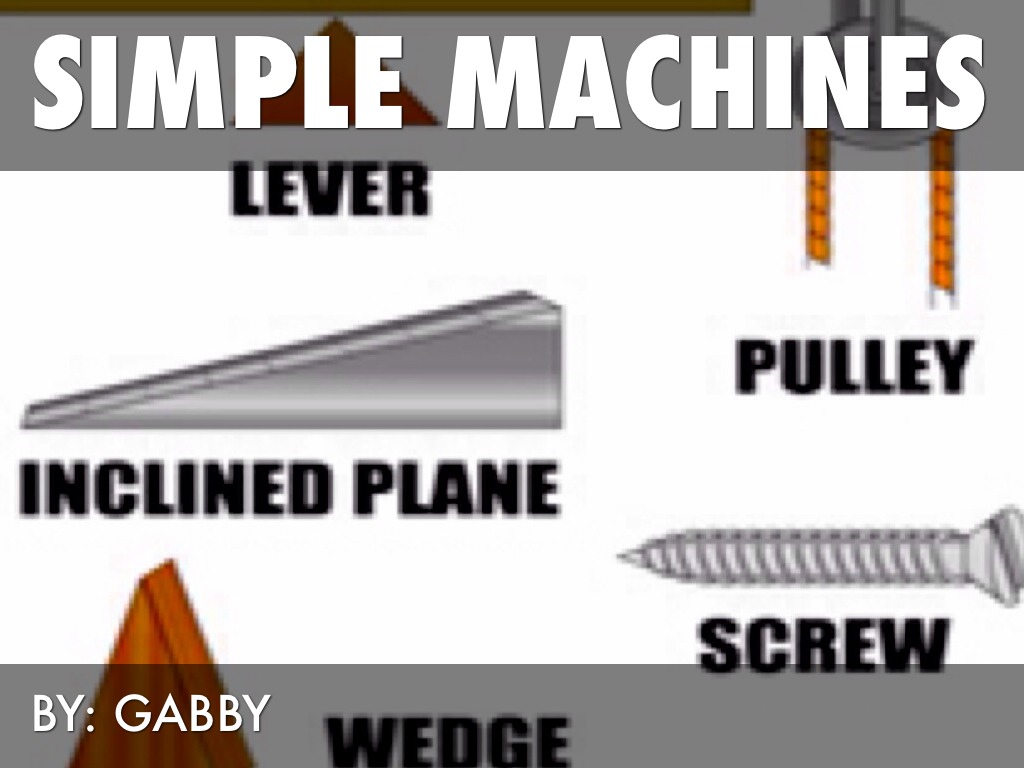

SIMPLE MACHINES

BY: GABBY
2.

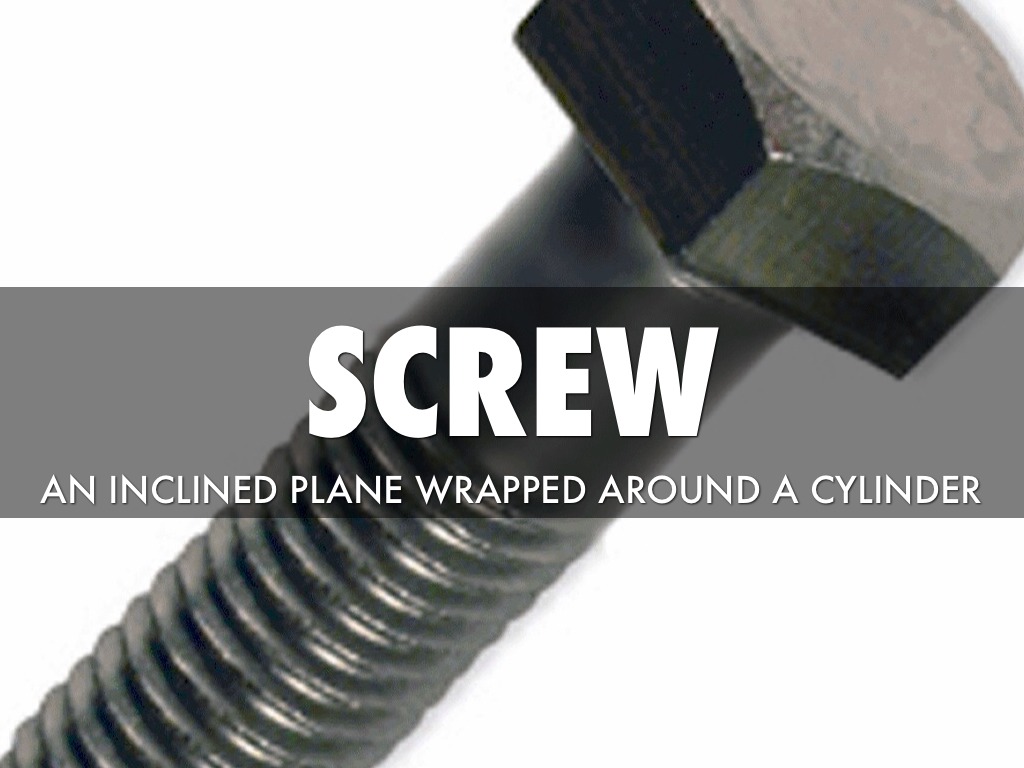

SCREW

AN INCLINED PLANE WRAPPED AROUND A CYLINDER
3.

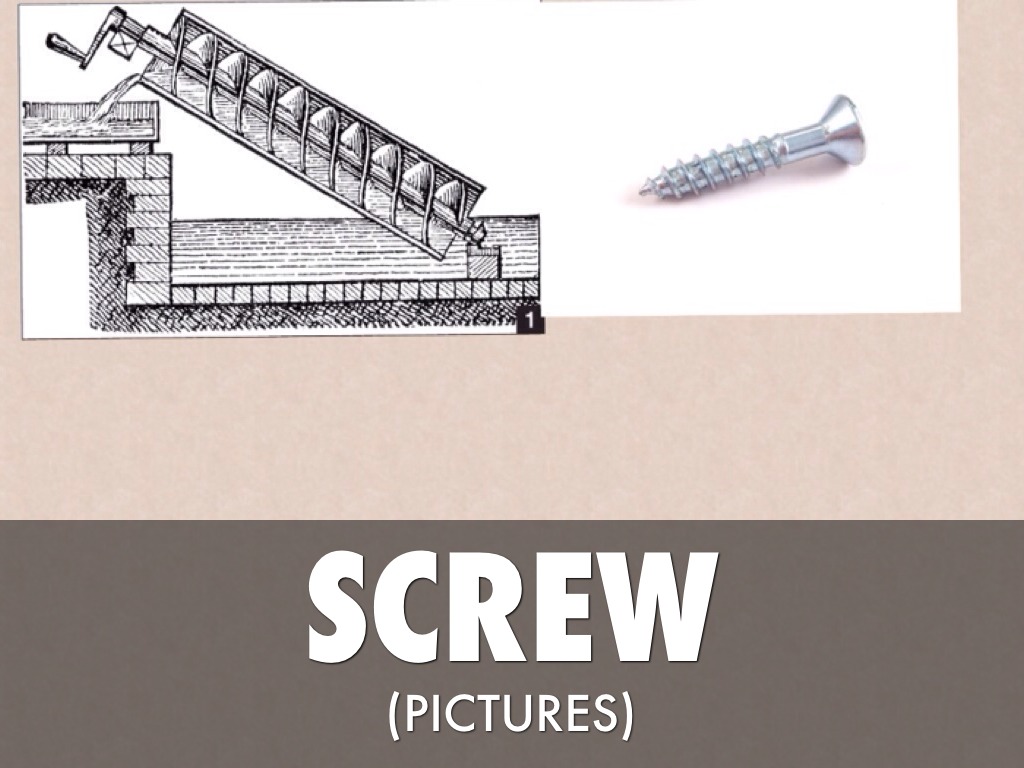

SCREW

(PICTURES)
4.

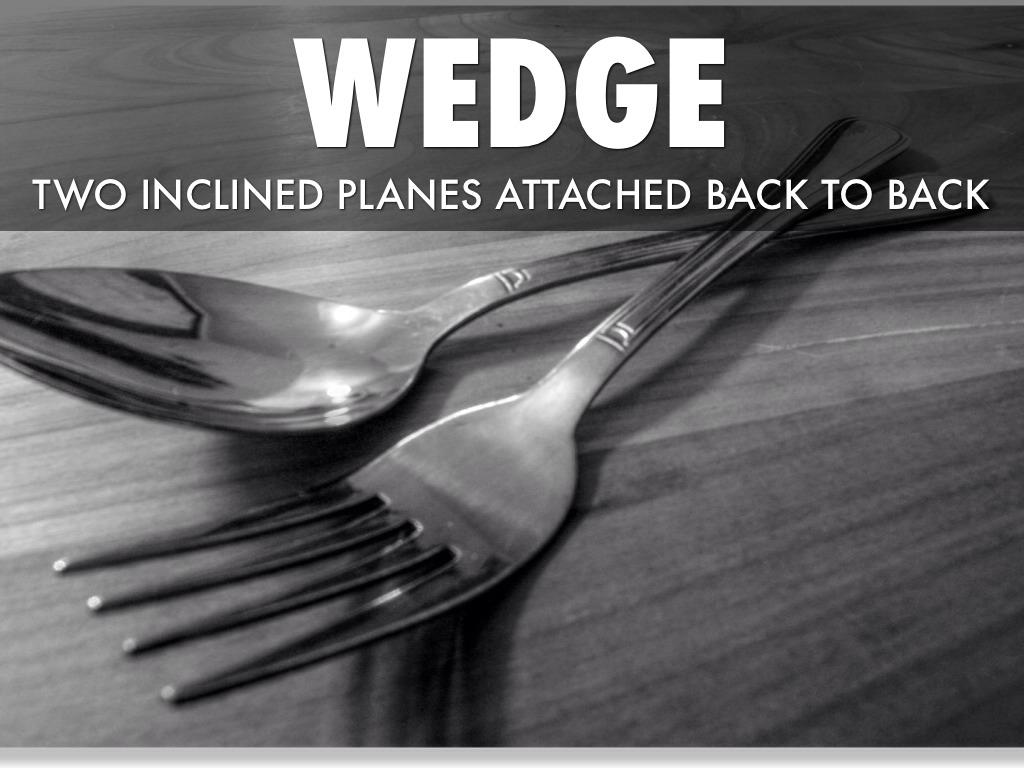

WEDGE

TWO INCLINED PLANES ATTACHED BACK TO BACK
Photo by fxp
5.

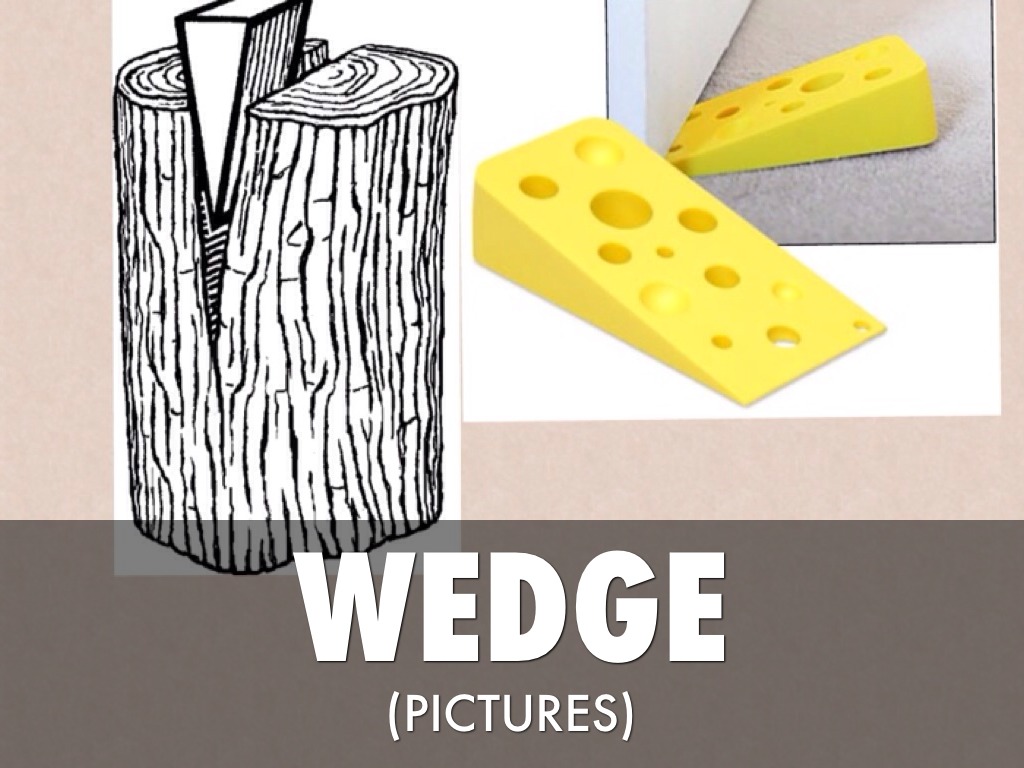

WEDGE

(PICTURES)
6.

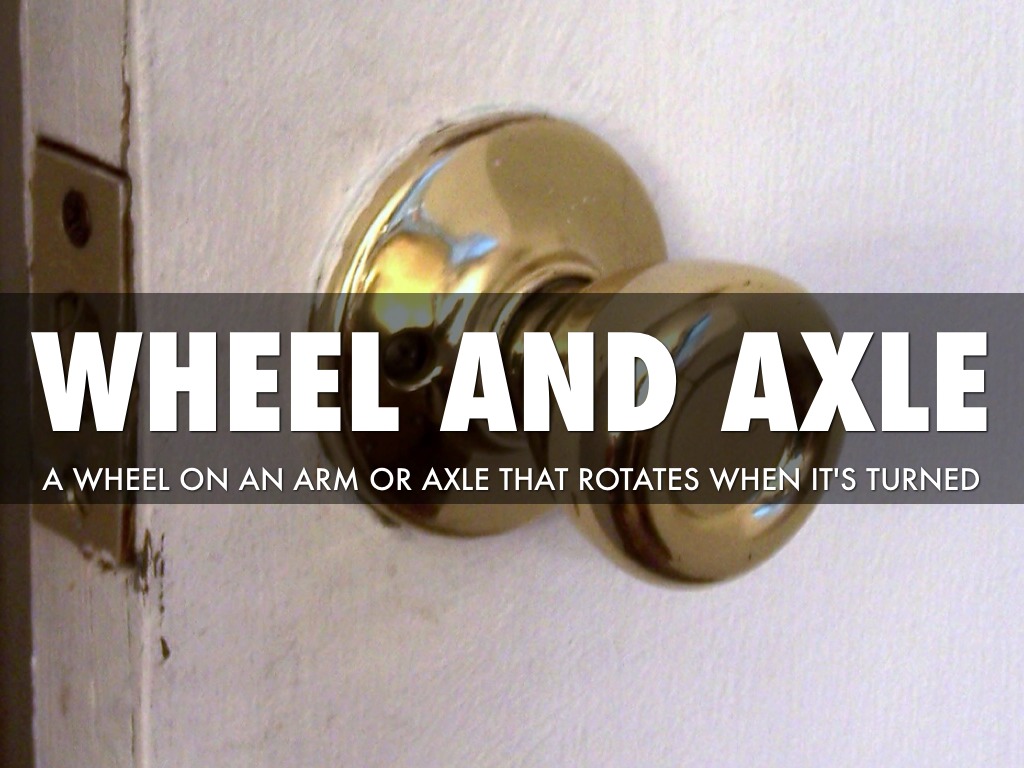

WHEEL AND AXLE

A WHEEL ON AN ARM OR AXLE THAT ROTATES WHEN IT'S TURNED
7.

WHEEL AND AXLE

(PICTURES)
8.

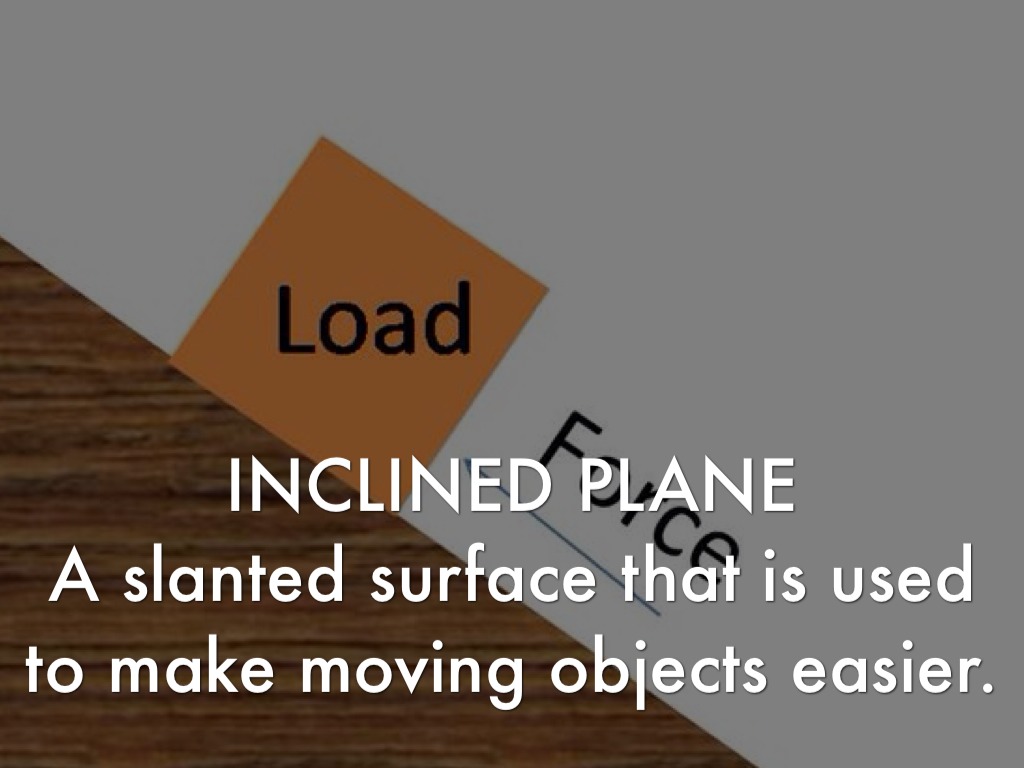

INCLINED PLANE
A slanted surface that is used to make moving objects easier.

9.

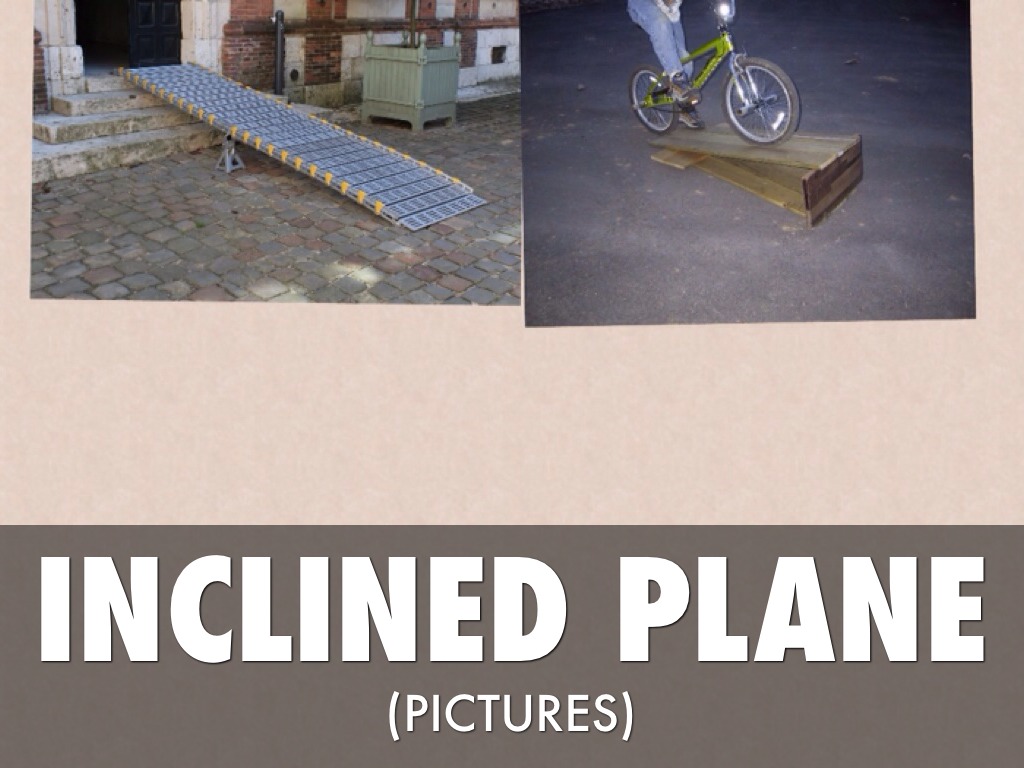

INCLINED PLANE

(PICTURES)
10.

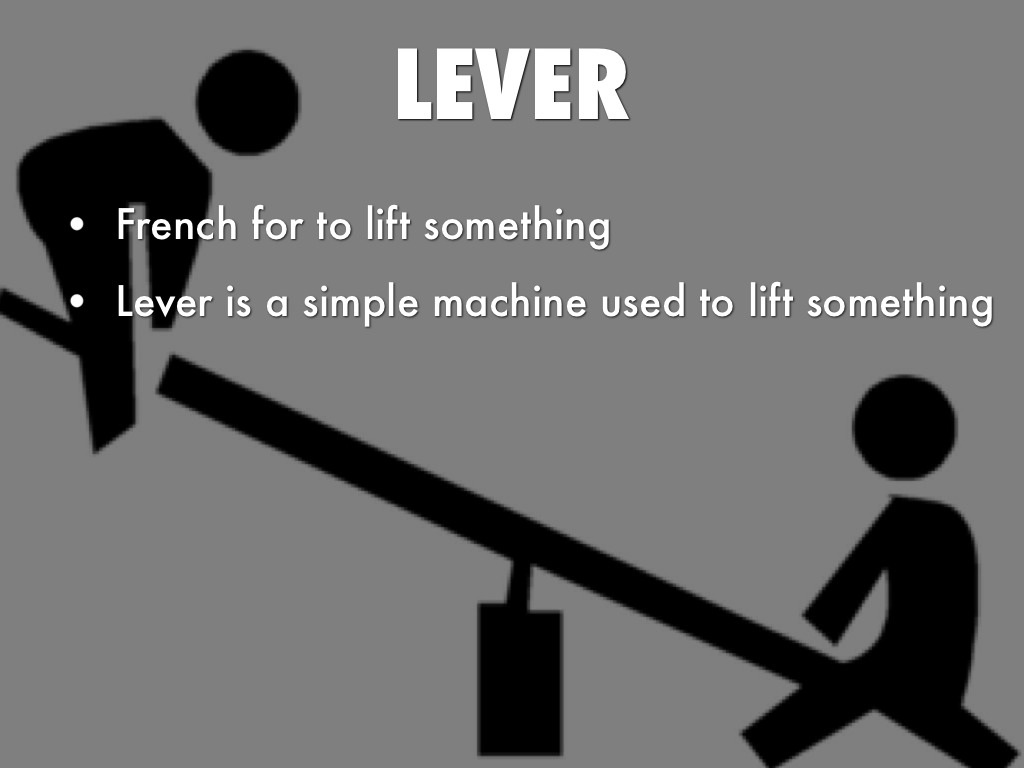

LEVER

  • French for to lift something
  • Lever is a simple machine used to lift something
11.

LEVER

(PICTURES)
12.

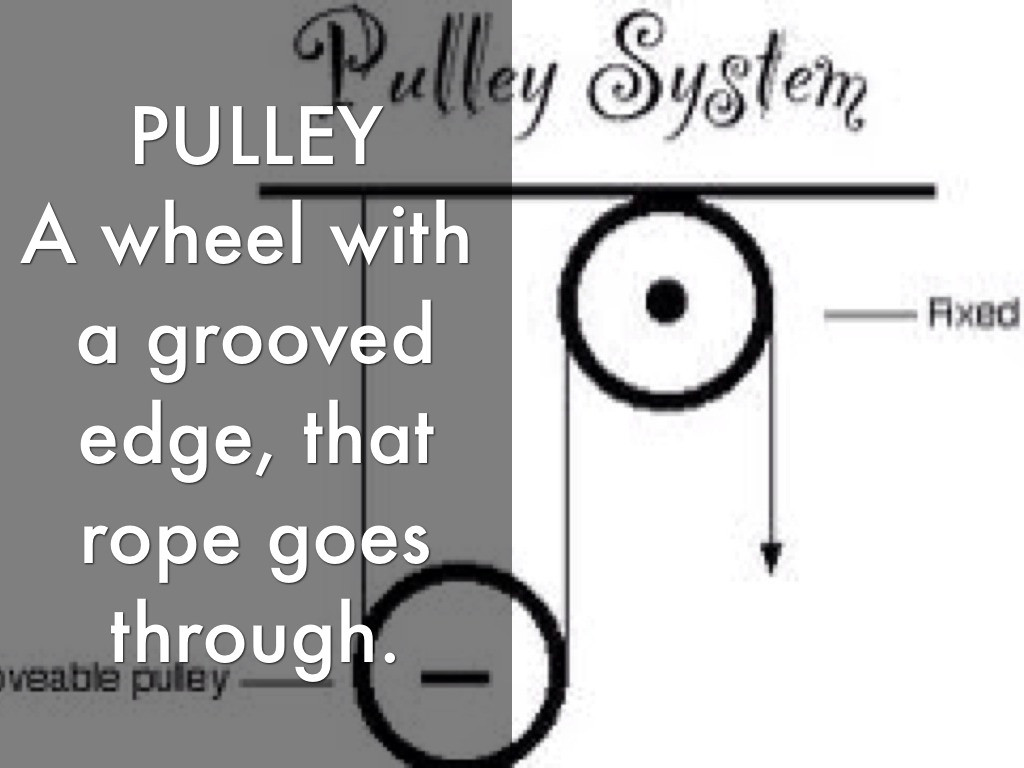

PULLEY
A wheel with a grooved edge, that rope goes through.

13.

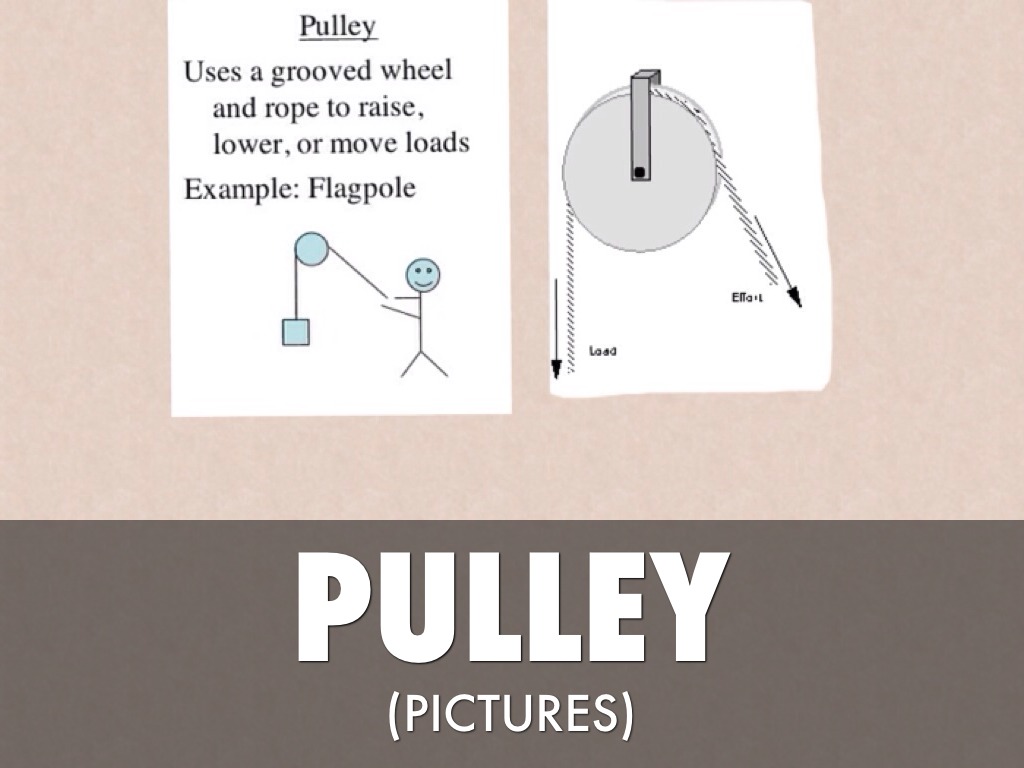

PULLEY

(PICTURES)

Gabrielle Meadows
