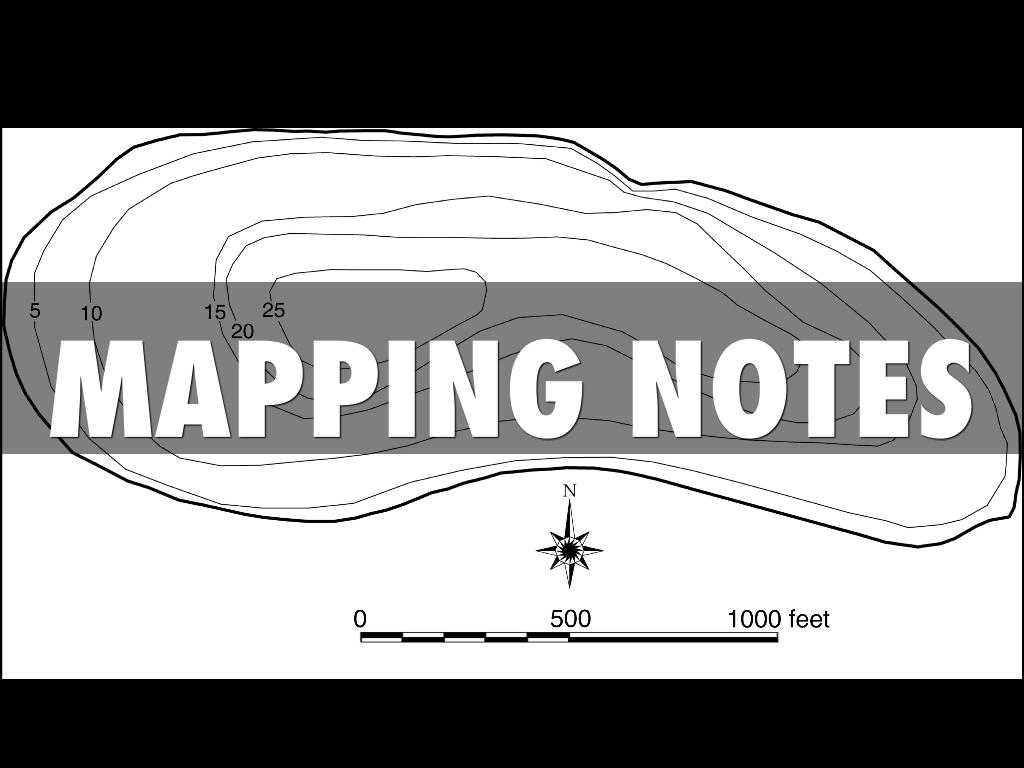

MAPPING NOTES

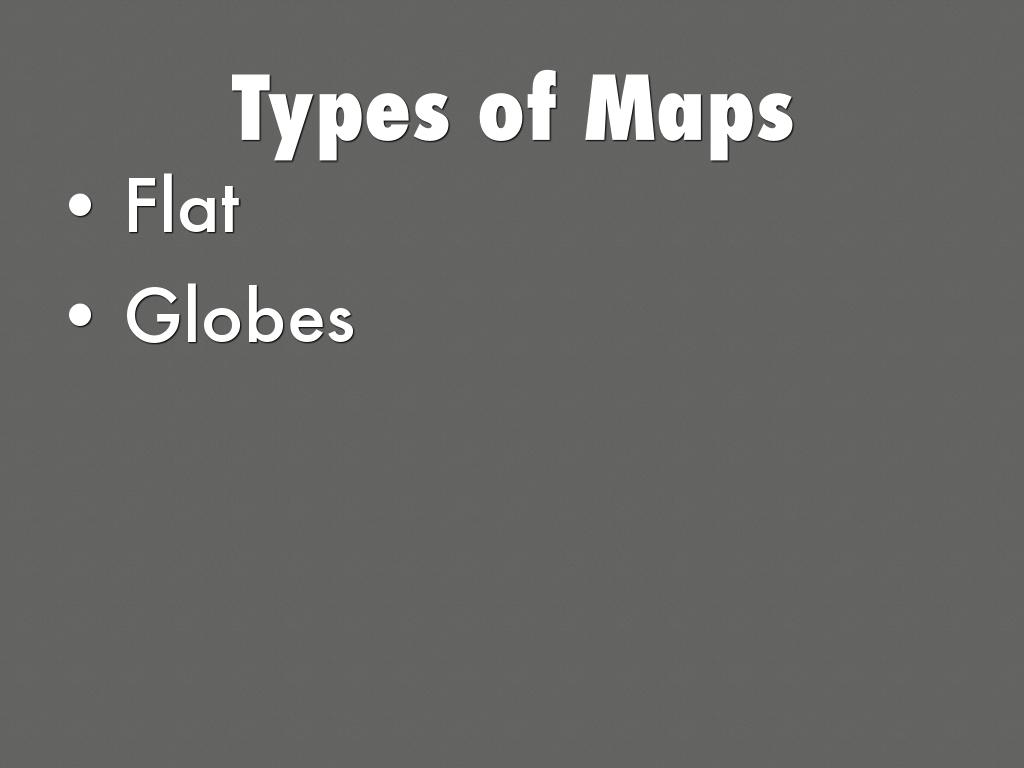

Types of Maps

• Flat
• Globes

Topographic

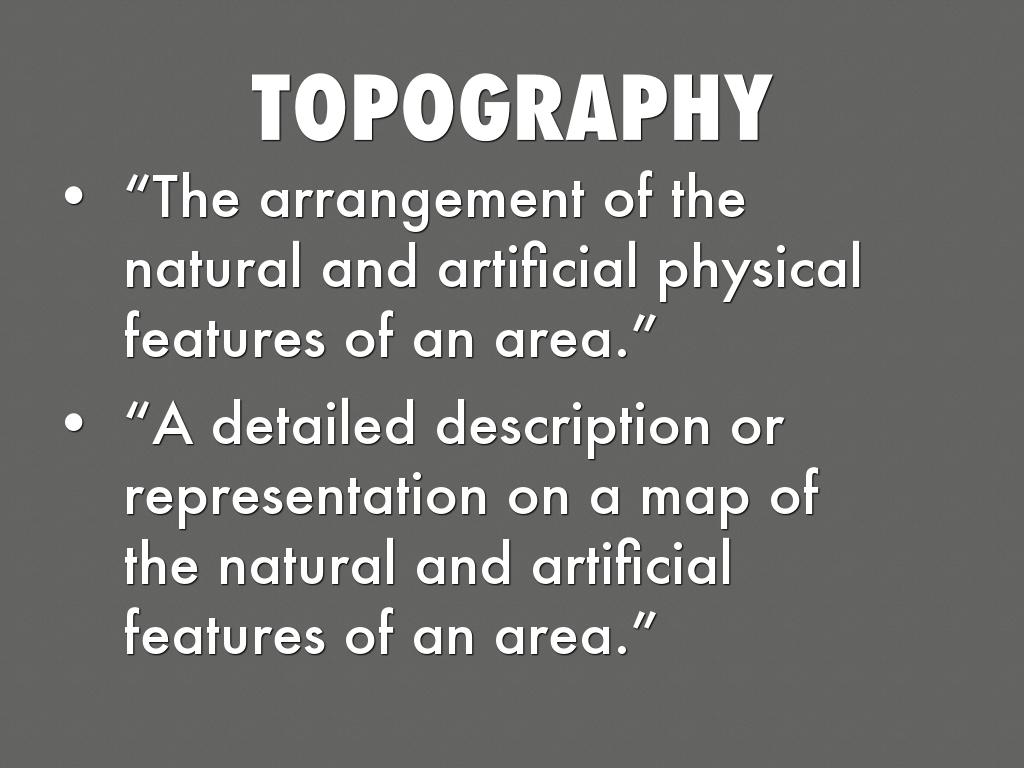

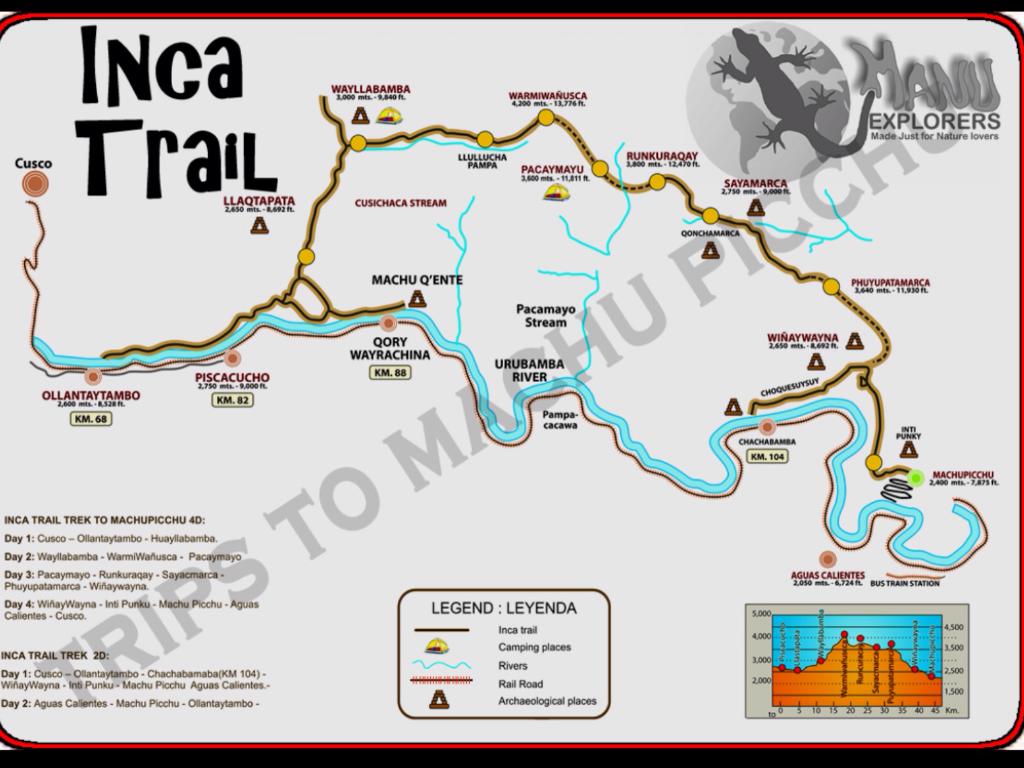

TOPOGRAPHY

• “The arrangement of the natural and artificial physical features of an area.”
• “A detailed description or representation on a map of the natural and artificial features of an area.”

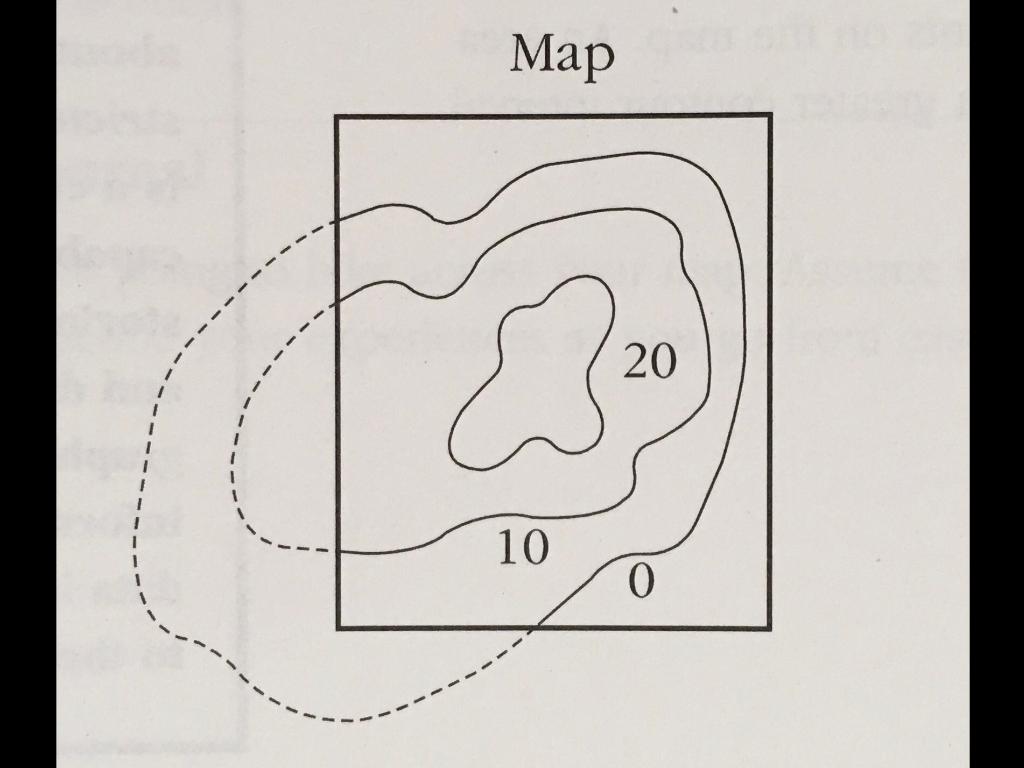

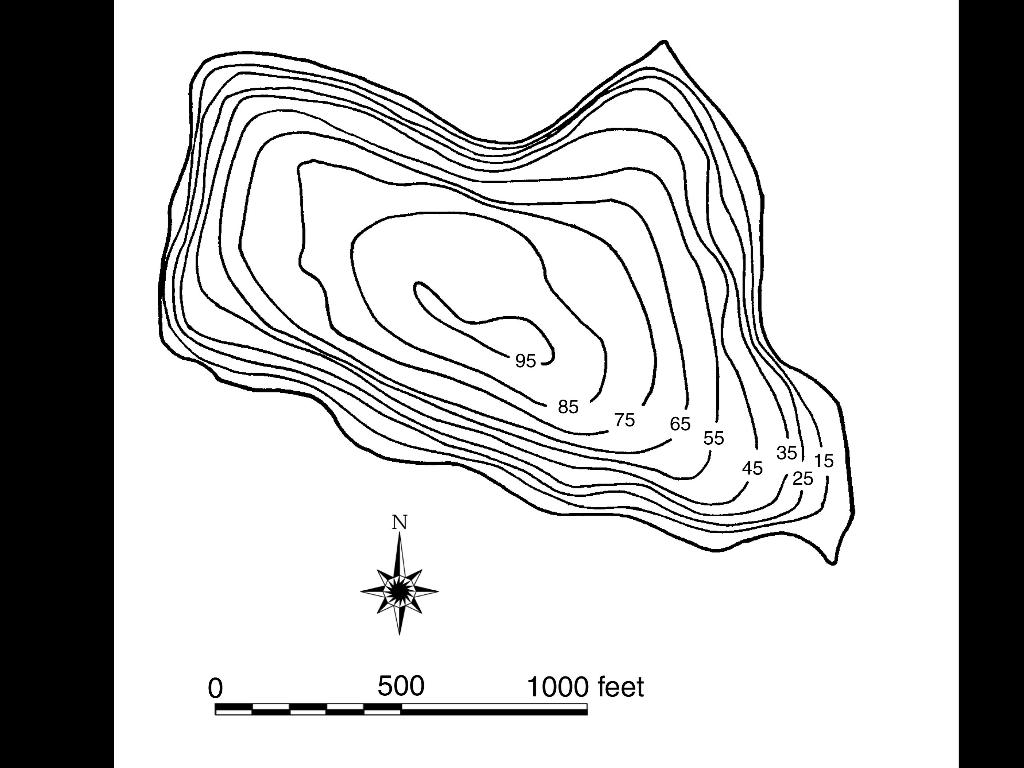

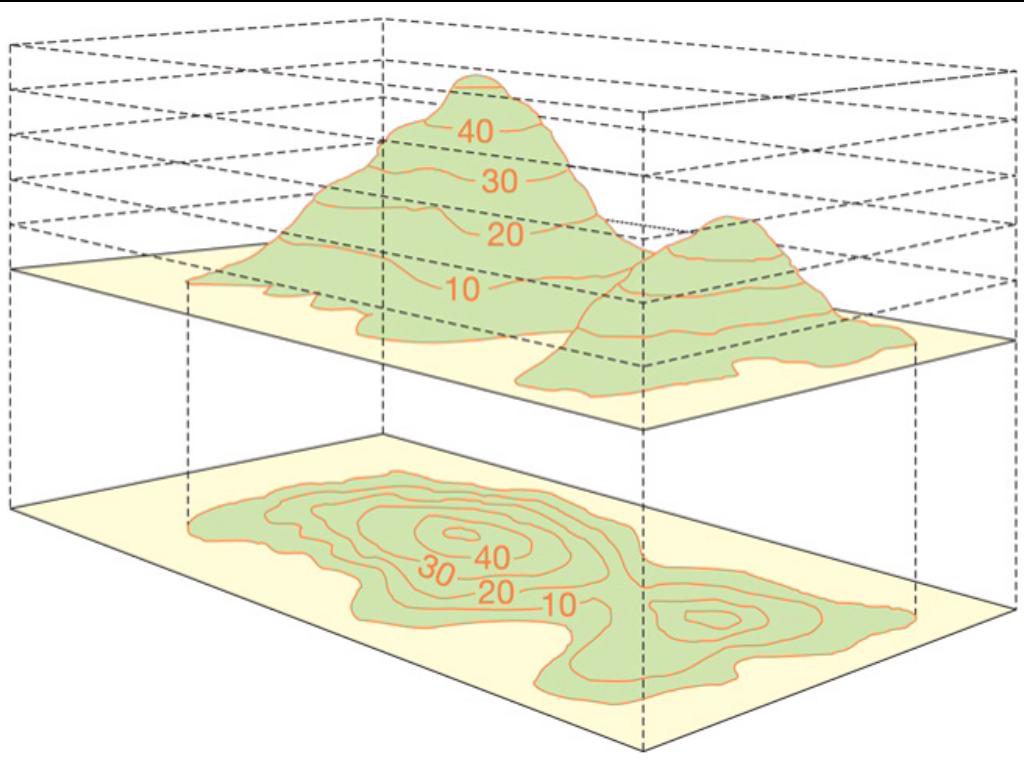

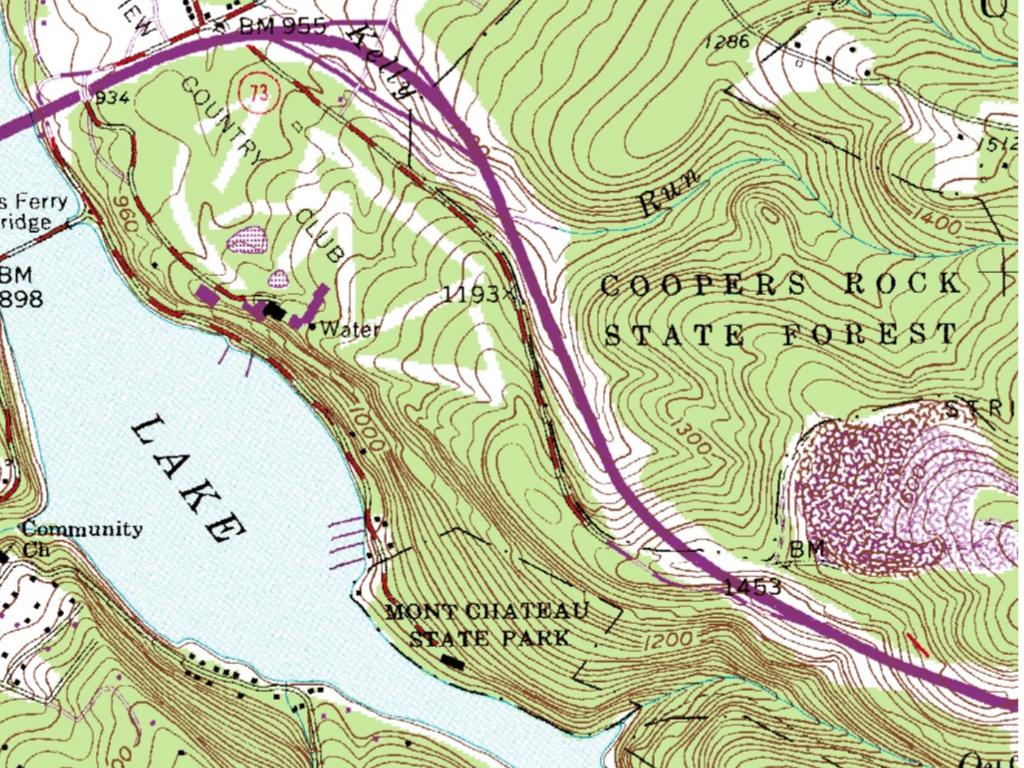

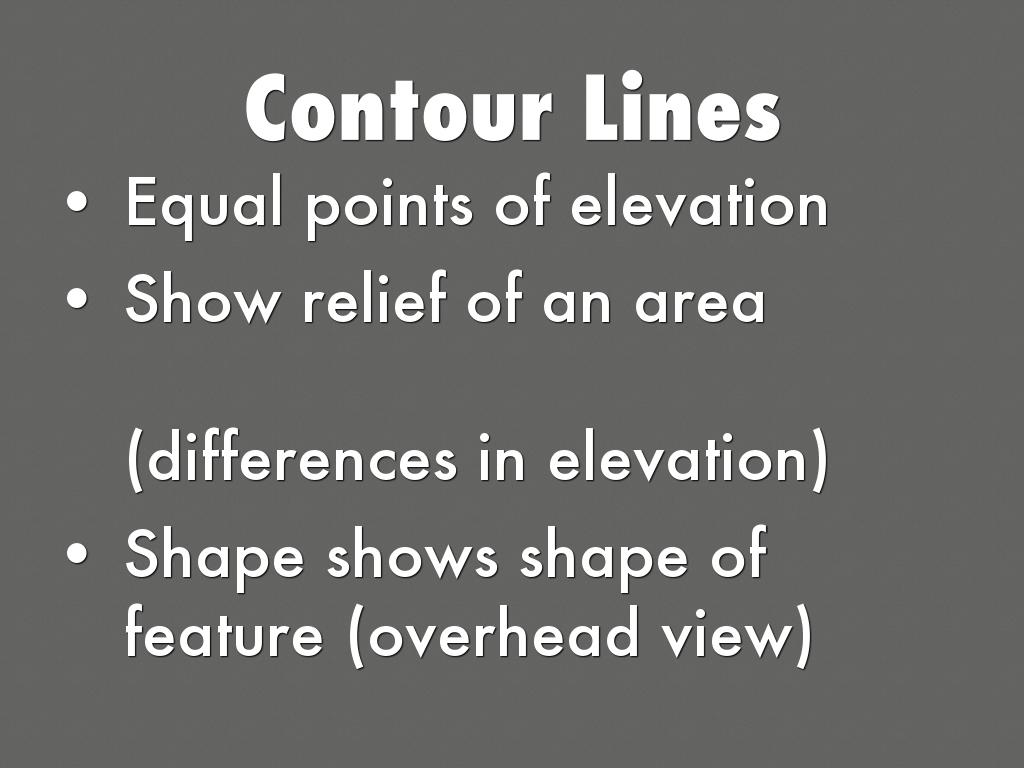

Contour Lines

• Equal points of elevation
• Show relief of an area (differences in elevation)

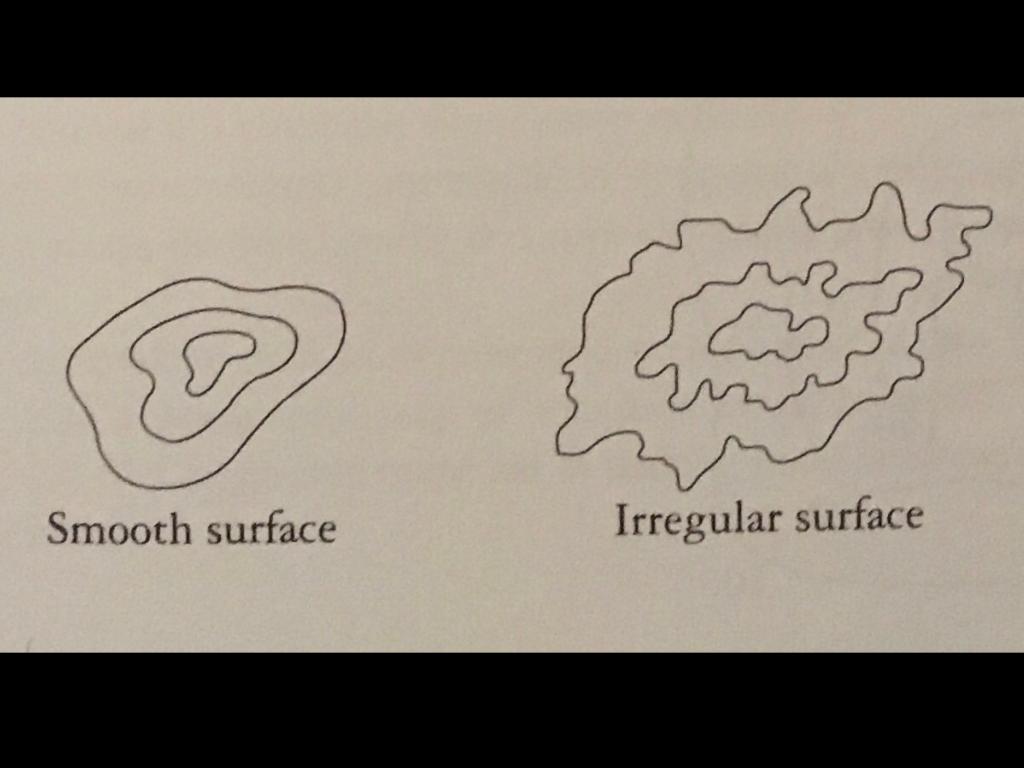

• Shape shows shape of feature (overhead view)

Untitled Slide

Untitled Slide

Untitled Slide

Untitled Slide

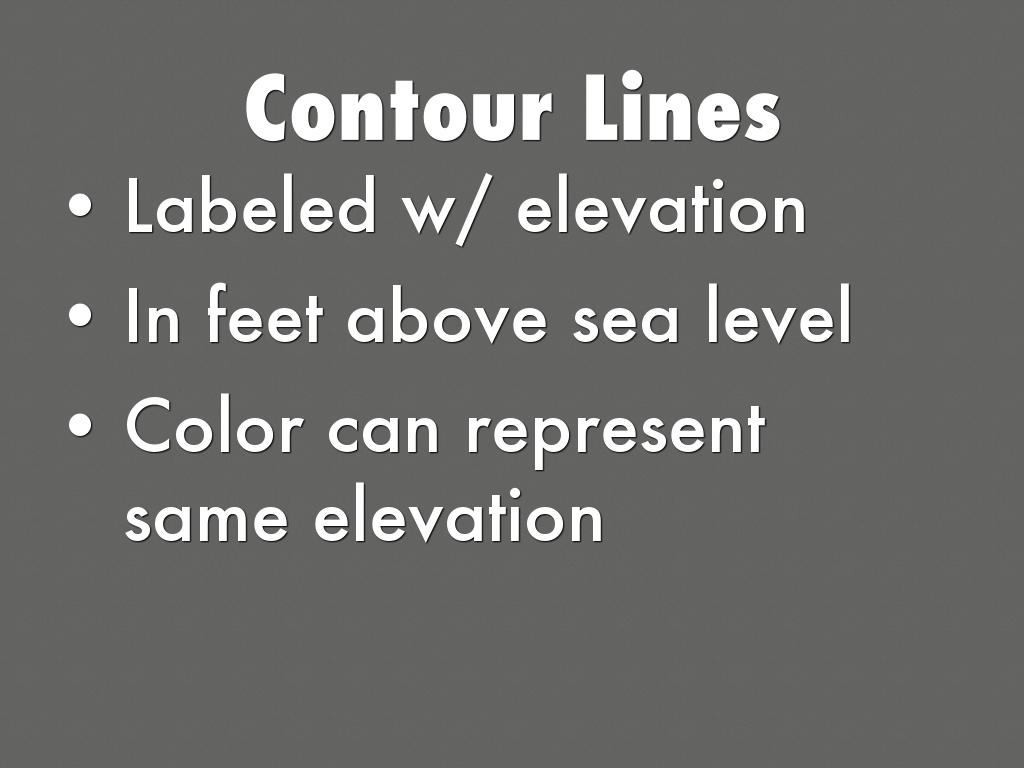

Contour Lines

• Labeled w/ elevation

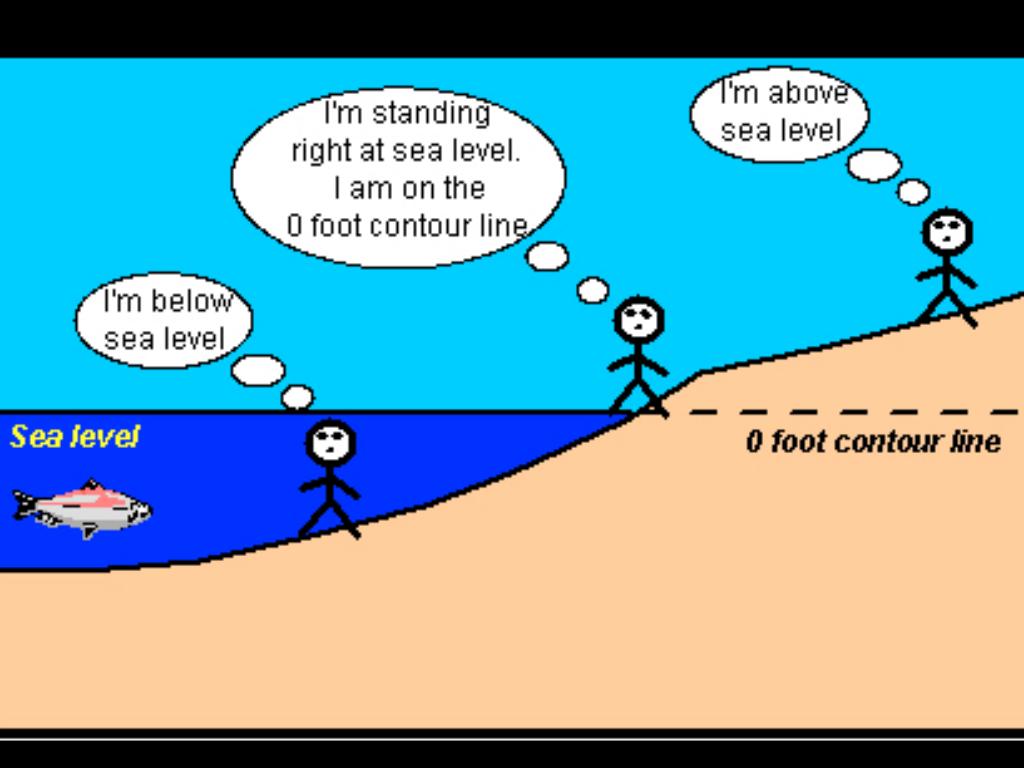

• In feet above sea level
• Color can represent same elevation

Untitled Slide

Untitled Slide

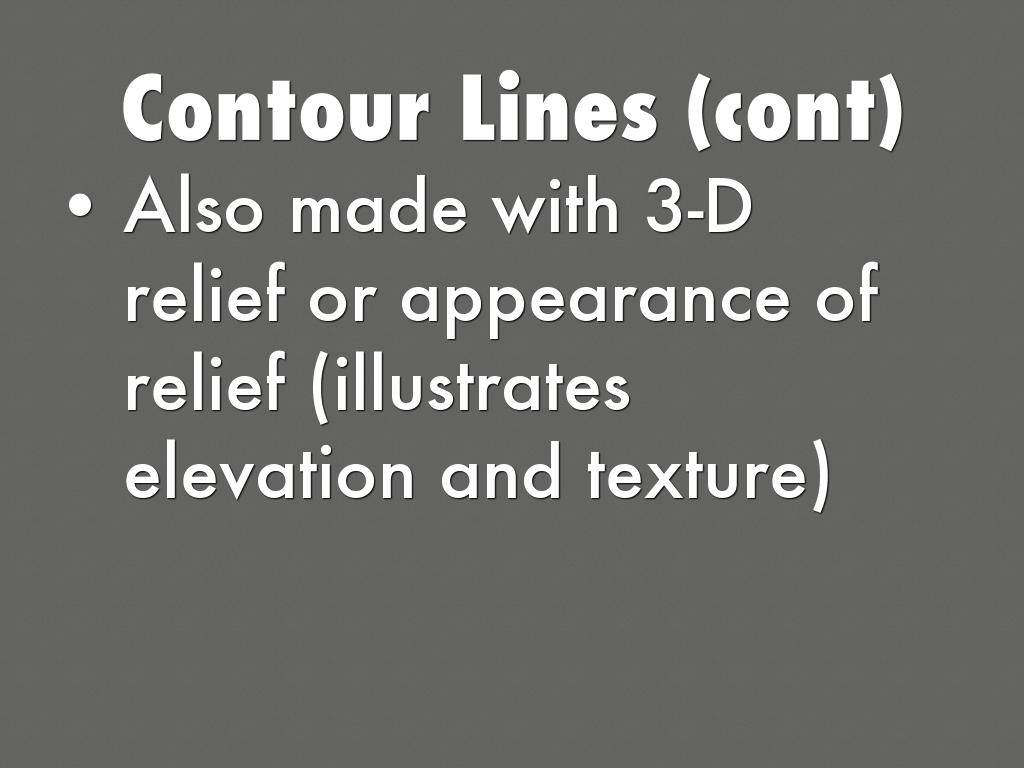

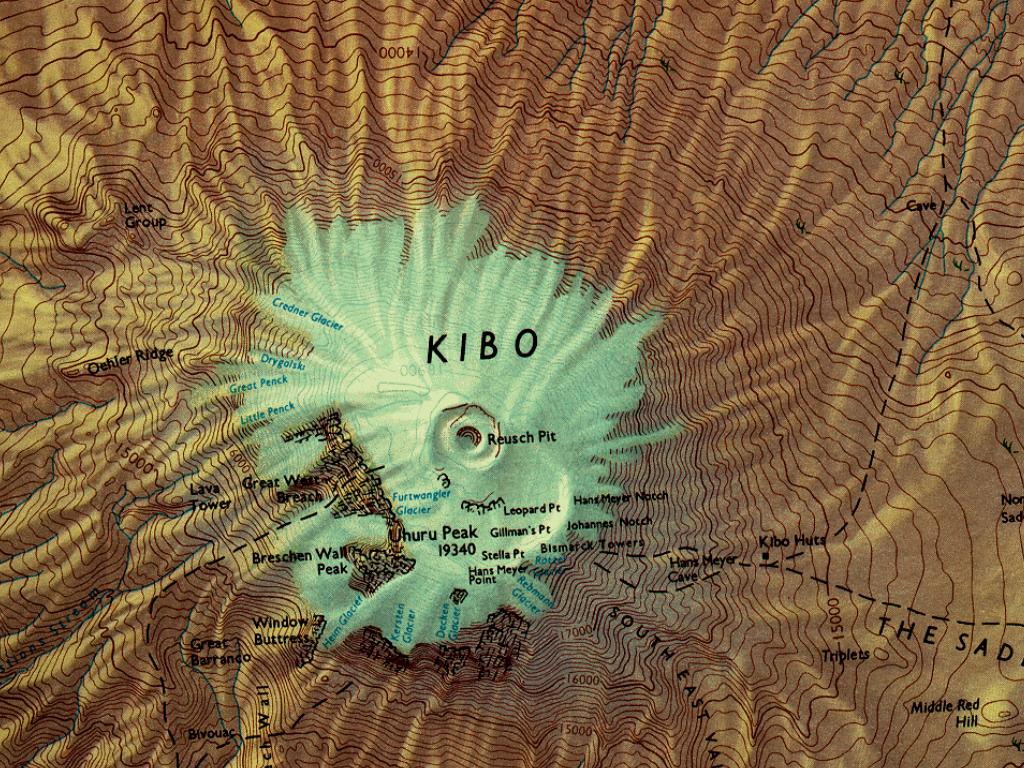

Contour Lines (cont)

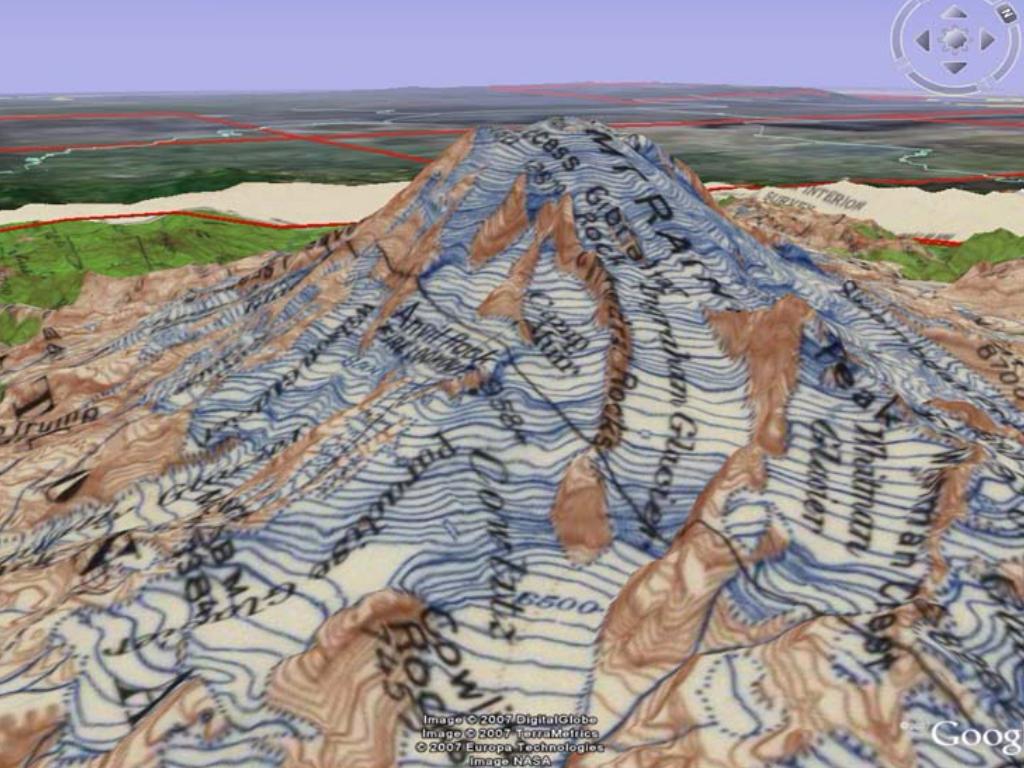

• Also made with 3-D relief or appearance of relief (illustrates elevation and texture)

Untitled Slide

Untitled Slide

Untitled Slide

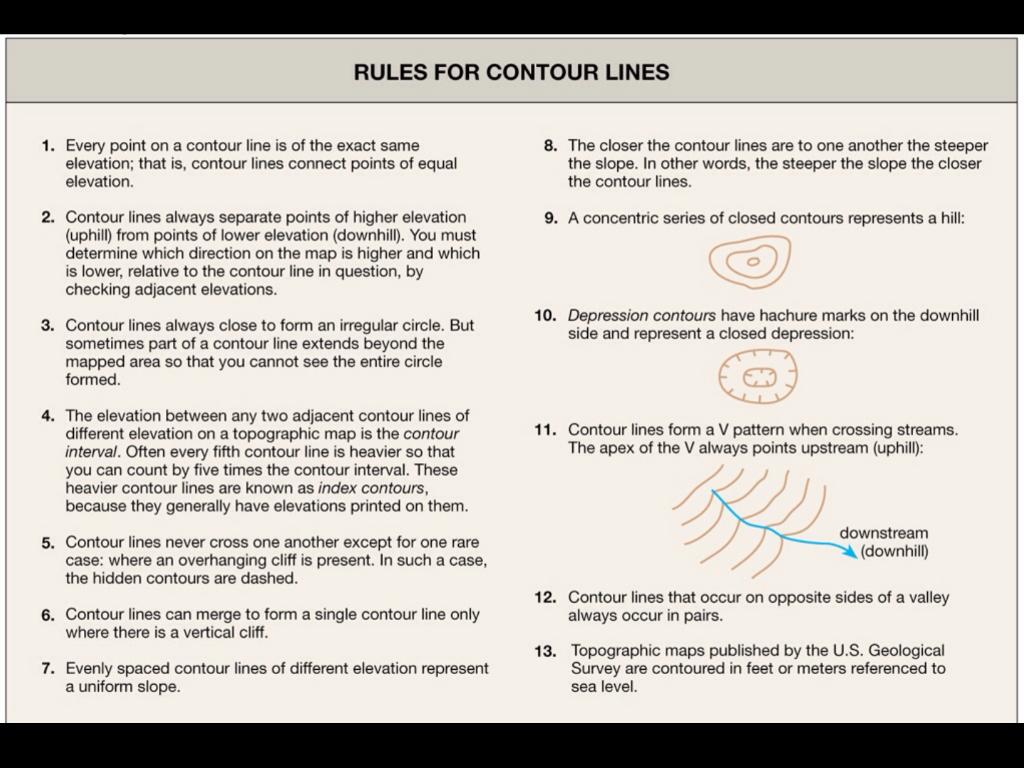

Contour Lines

Untitled Slide

Untitled Slide

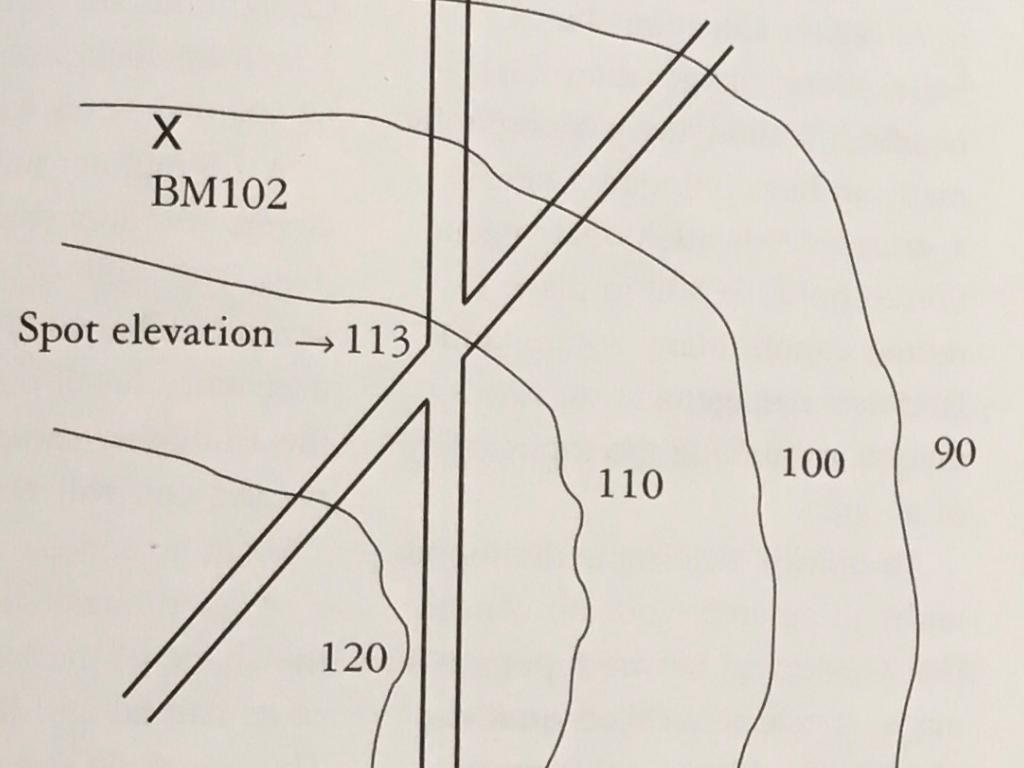

BENCHMARK

• Point on map with exact elevation indicated
• Exact elevation on brass or aluminum plate on ground
• On map: "BM" next to elevation to nearest foot (i.e. BM102)

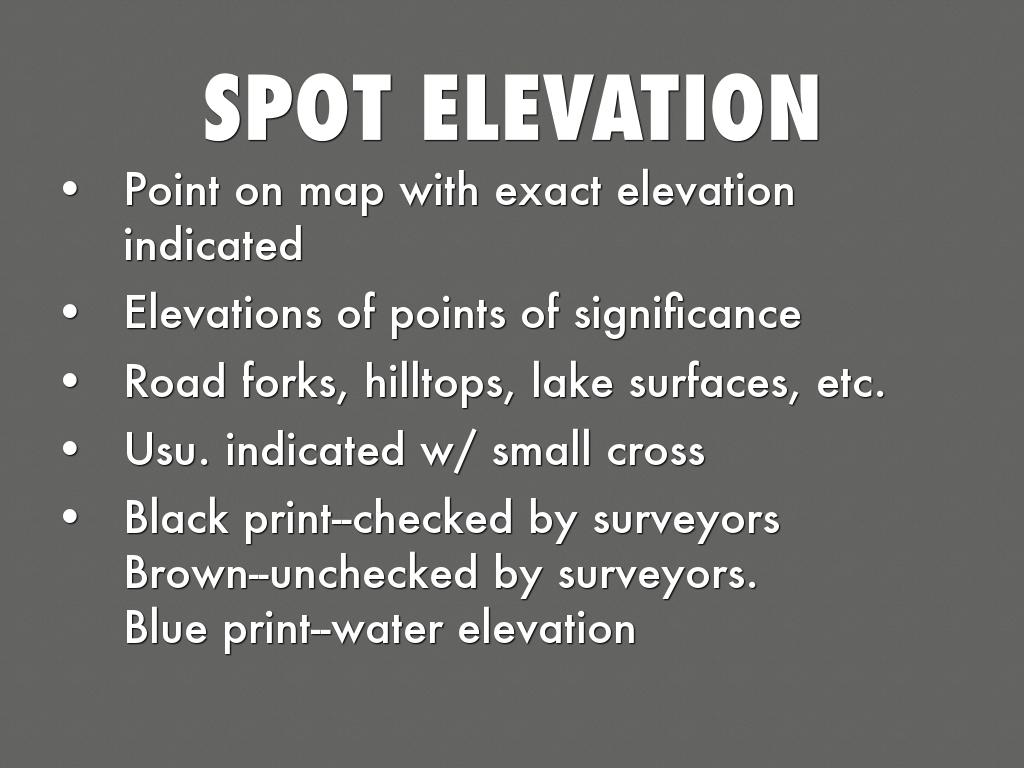

SPOT ELEVATION

• Point on map with exact elevation indicated
• Elevations of points of significance
• Road forks, hilltops, lake surfaces, etc.
• Usu. indicated w/ small cross
• Black print--checked by surveyors Brown--unchecked by surveyors. Blue print--water elevation

Untitled Slide

Map Scales

• Represent Distance
• Written or Verbal: Measurement as proportion (1 in = 1 mile)
• Graphical Scale: Line divided into equal parts

GRAPHICAL SCALE

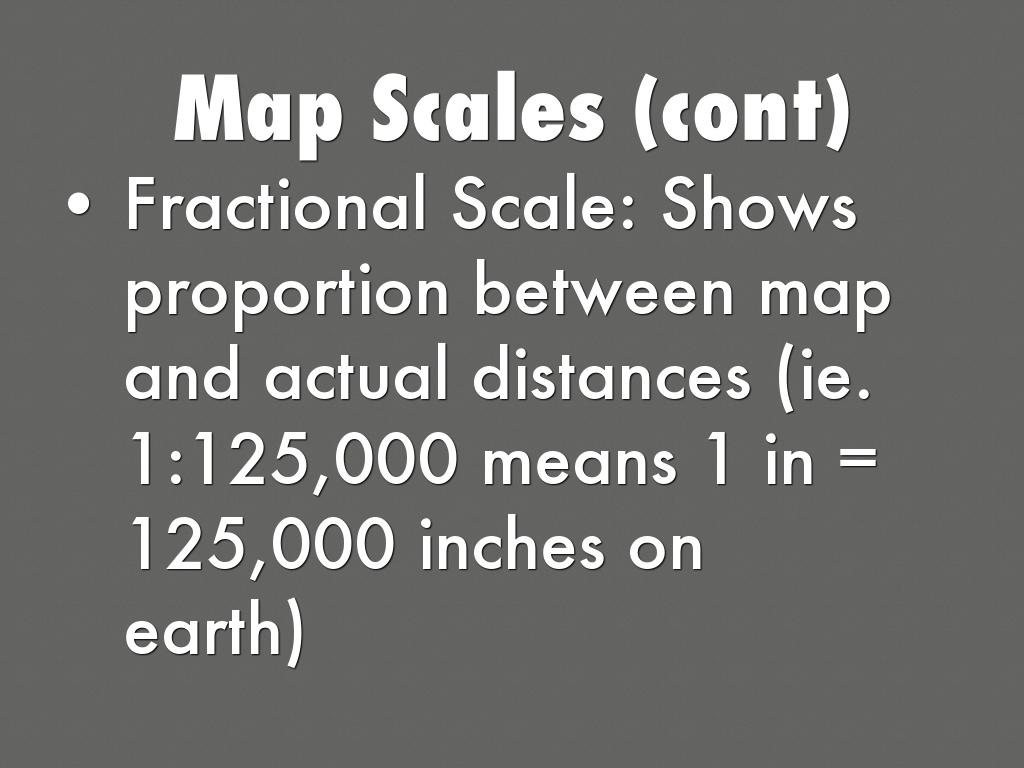

Map Scales (cont)

• Fractional Scale: Shows proportion between map and actual distances (ie. 1:125,000 means 1 in = 125,000 inches on earth)

Untitled Slide

SYMBOLS

Untitled Slide

Untitled Slide

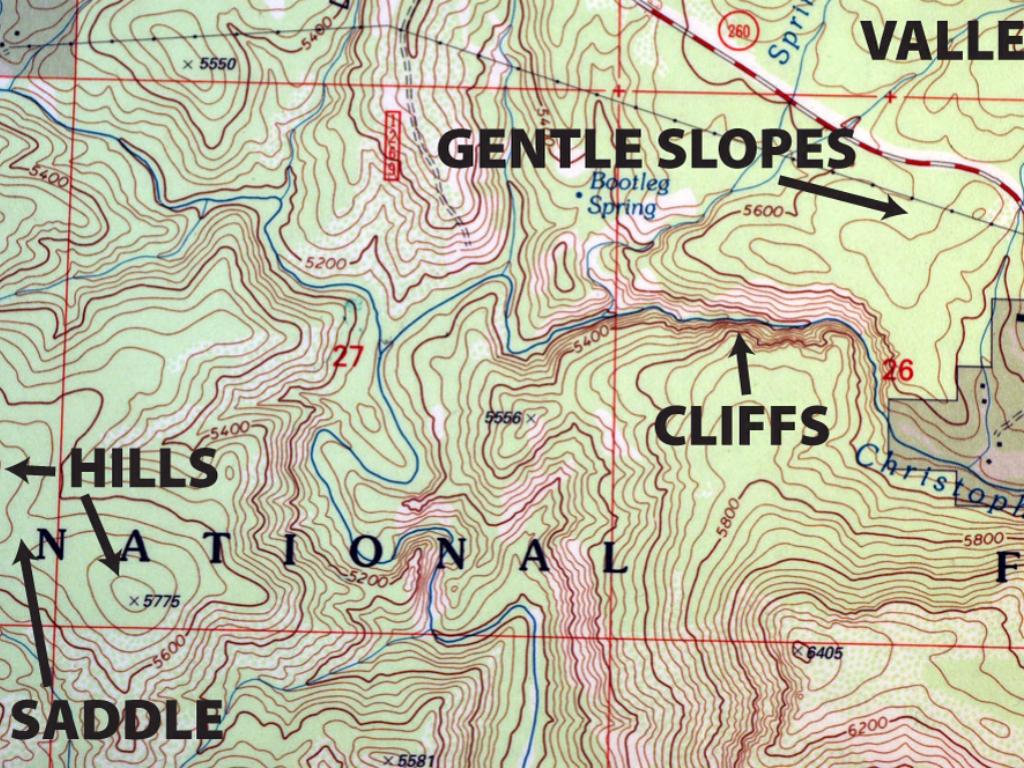

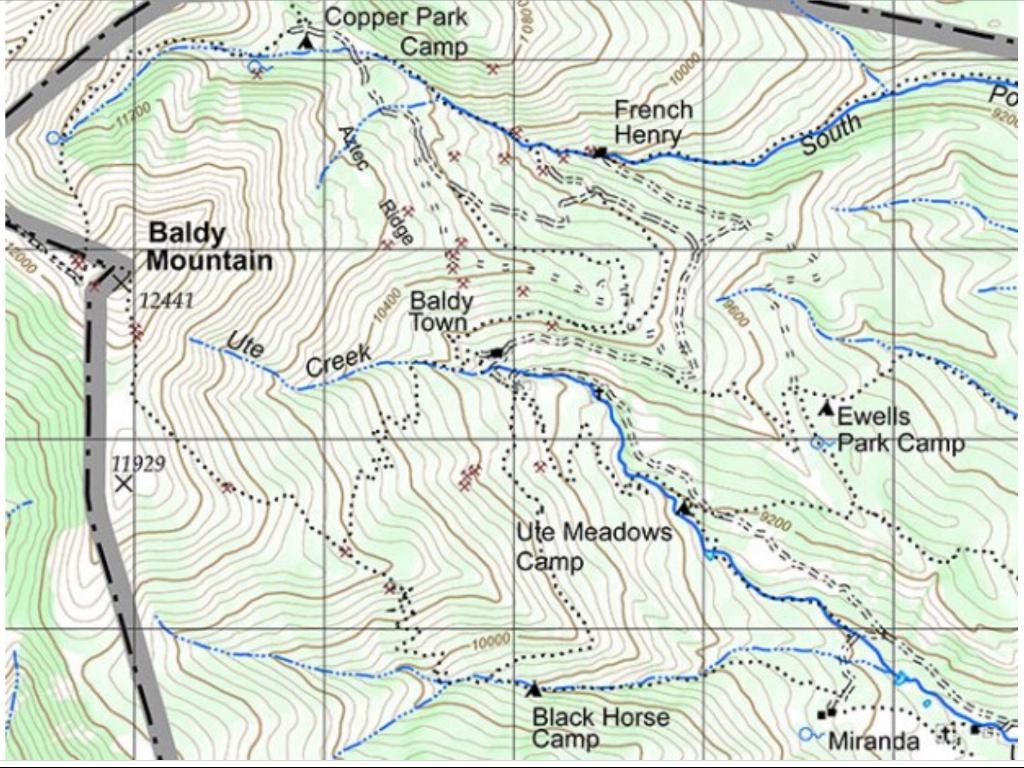

CONTOUR MAPS

Untitled Slide

Untitled Slide

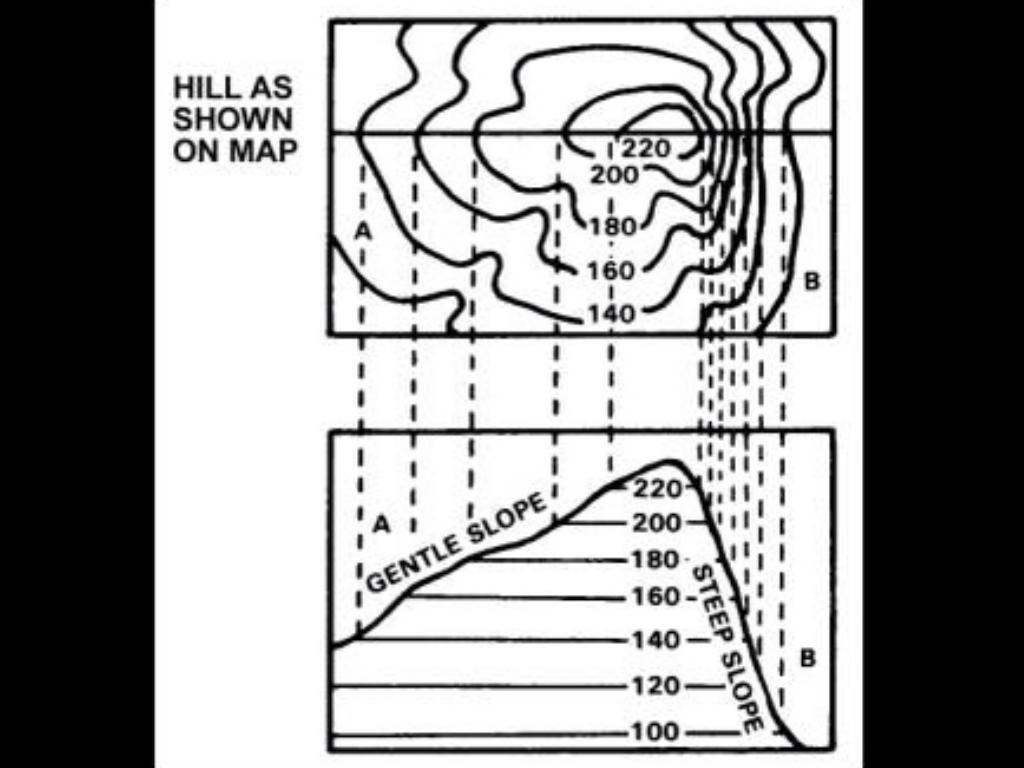

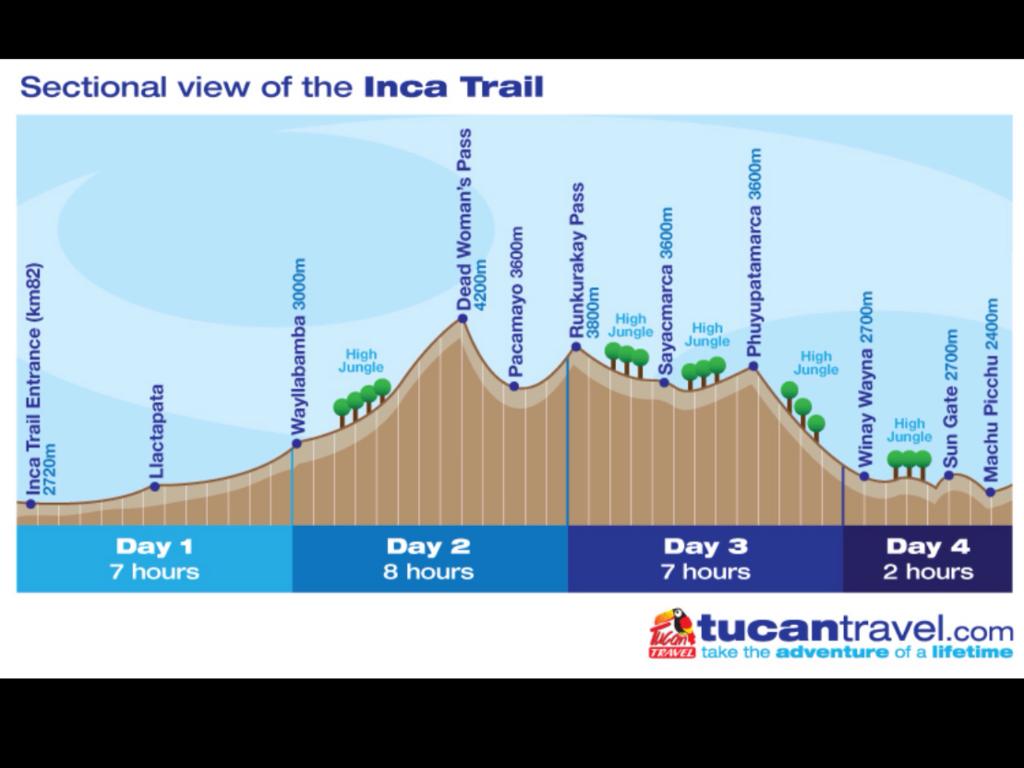

PROFILE

Untitled Slide

Untitled Slide

DRAWING A PROFILE

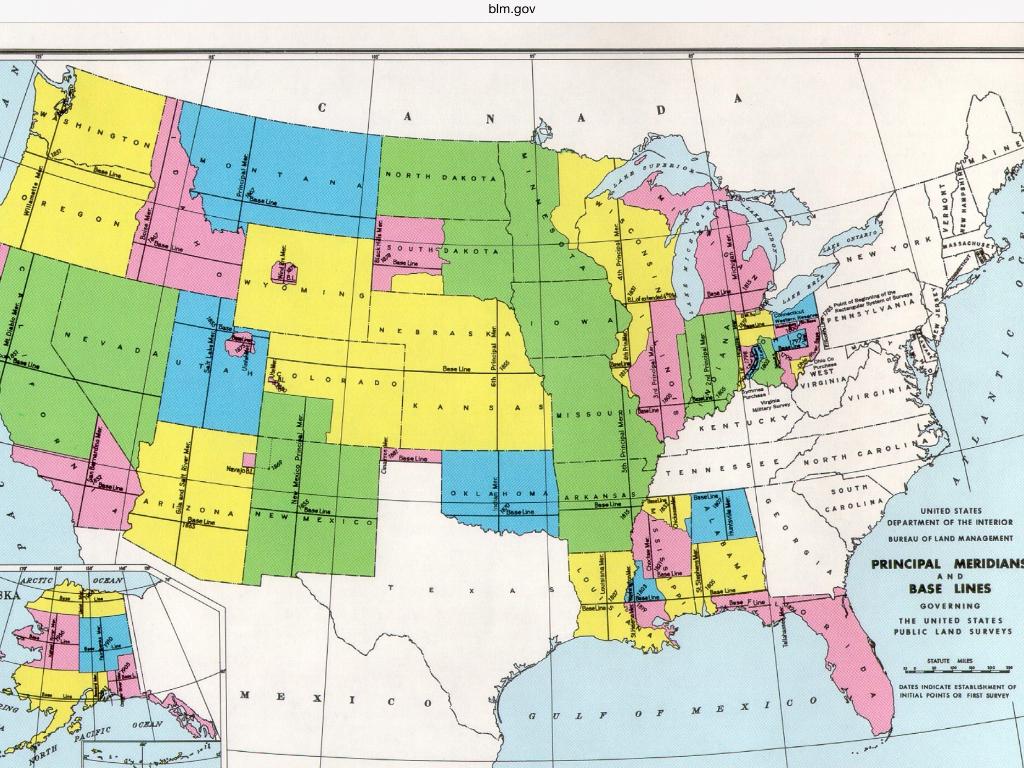

PUBLIC LAND SURVEY SYSTEM

• Thomas Jefferson
• New west territory acquired
• Public Land to sell
• Excluding: Water basins, military land, national parks

Untitled Slide

Untitled Slide

Untitled Slide
