PRESENTATION OUTLINE

FGM-148 JAVELIN

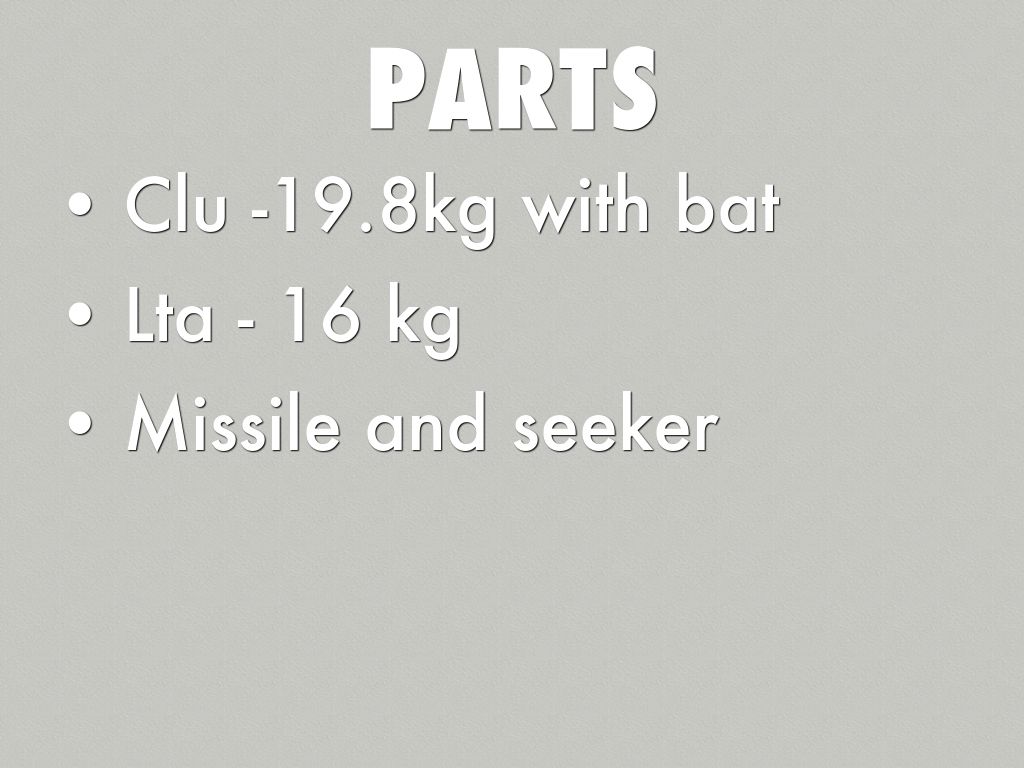

PARTS

  • Clu -19.8kg with bat
  • Lta - 16 kg

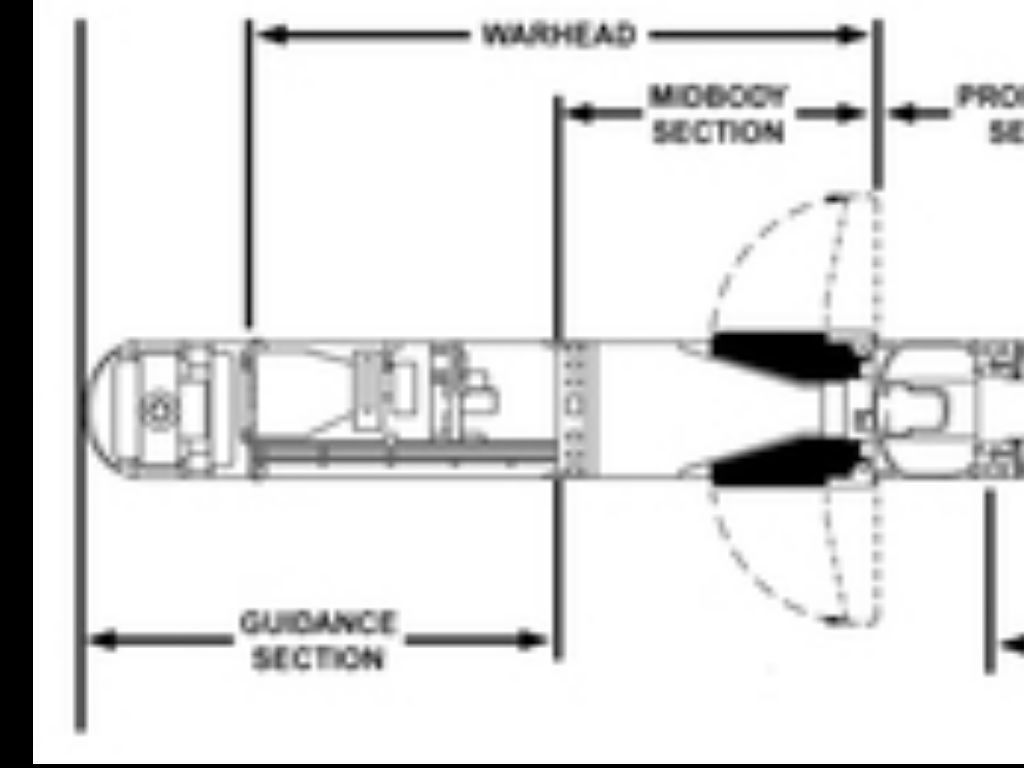

  • Missile and seeker

Untitled Slide

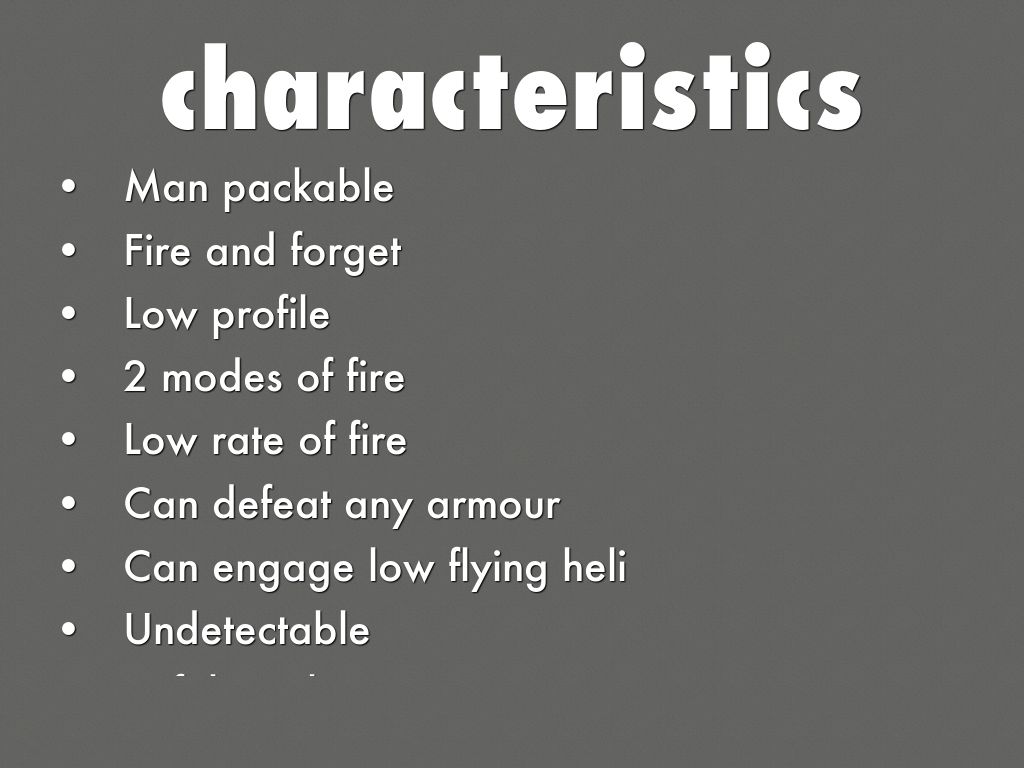

characteristics

  • Man packable
  • Fire and forget
  • Low profile
  • 2 modes of fire
  • Low rate of fire
  • Can defeat any armour
  • Can engage low flying heli
  • Undetectable
  • Soft launch

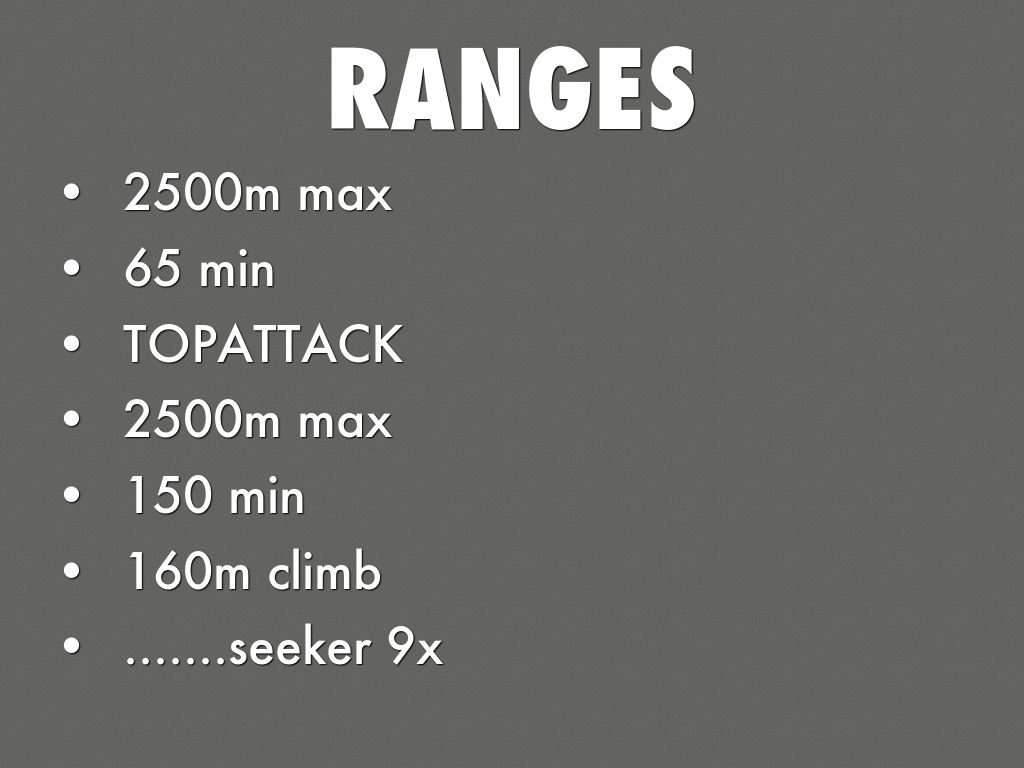

RANGES

  • 2500m max
  • 65 min
  • TOPATTACK
  • 2500m max
  • 150 min
  • 160m climb

Untitled Slide

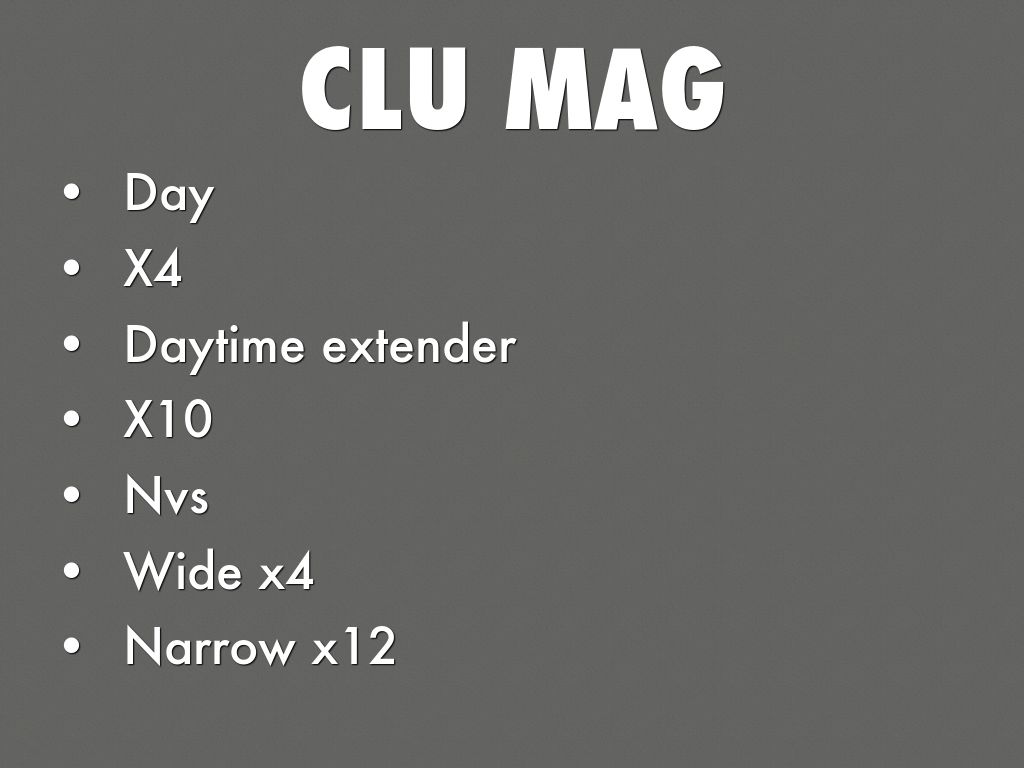

CLU MAG

  • Day
  • X4
  • Daytime extender
  • X10
  • Nvs
  • Wide x4
  • Narrow x12
  • .....seeker x9
