E2 - SCOOTER.

lechuga's team - mARK WALHIMER -  PACE
aqui agregar un render del nuestro






LDI - Product and System Design II

Aidhe Yazmin Pacheco A01163697
Cecilia Franco Pacheco A01169685
Lariza Morales A01164245
Renata Calva Valencia A01370751
Roberto Iturbide A01166981

IMT
Carlos Alberto López Álvarez a01168193
Pablo Alfonso Lechuga Vázquez a01370051
Sergio Aguilera Suárez a01169680
Jorge Enrique Méndez Castellanos a01167391






CESAR TORRES

27 years Upper Mid
Photo by bdebaca

User

  • Degree in Financial Management
  • He moved two years ago to an apartment in Polanco
  • He works 15 min far

cesar

  • His car is a Peugeot 208
  • He often uses it to go to work, but he spents more time on traffic and that bothers him

In the building he works is very difficult to find an empty place to park. So he needs to leave his car on the street, paying $64 per day.

OBJECTIVE:
Design a mobility device that allows our users to move from one place to another in a simple and comfortable way. Having an alternative system electric and manual, avoiding battery problems or even pollution.

E2=

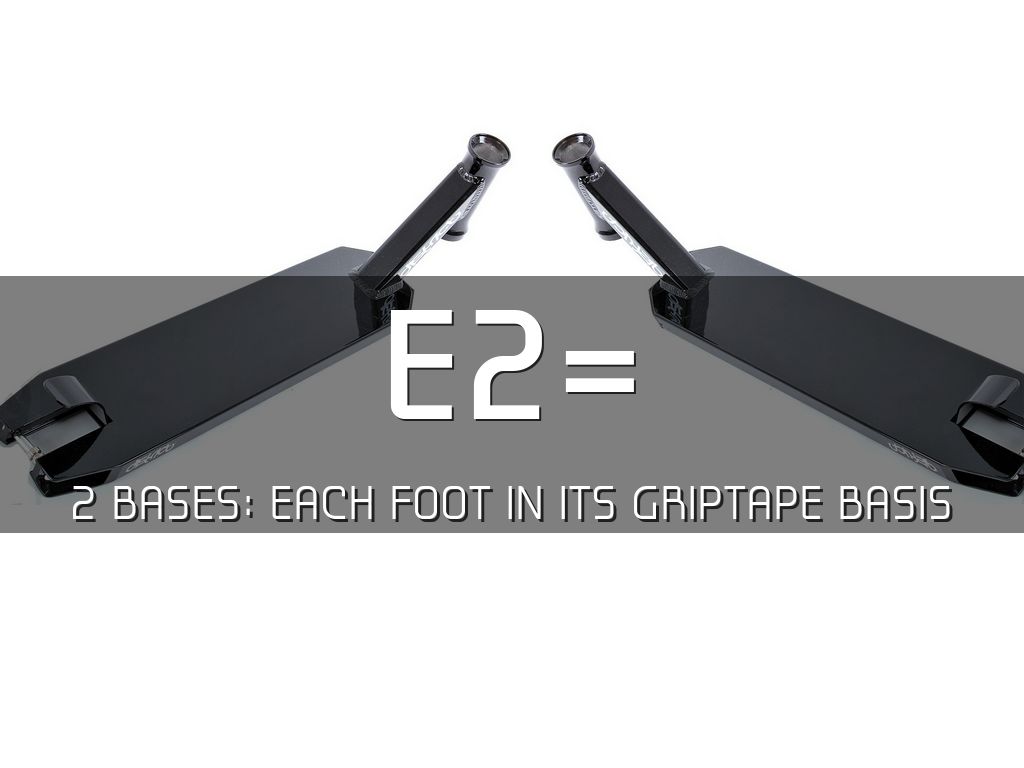

2 bases: each foot in its griptape basis

e2=

2 modalities: electric and manual
Photo by Ian Sane

Our inspiration

the freedom of the human body movement

When people walk, run, dance or skate, the body moves without limits.
Each movement makes people feel free, light and alive.

Photo by aluedt

Planned to be sold online and in retail stores.

Untitled Slide

Click to add more text here

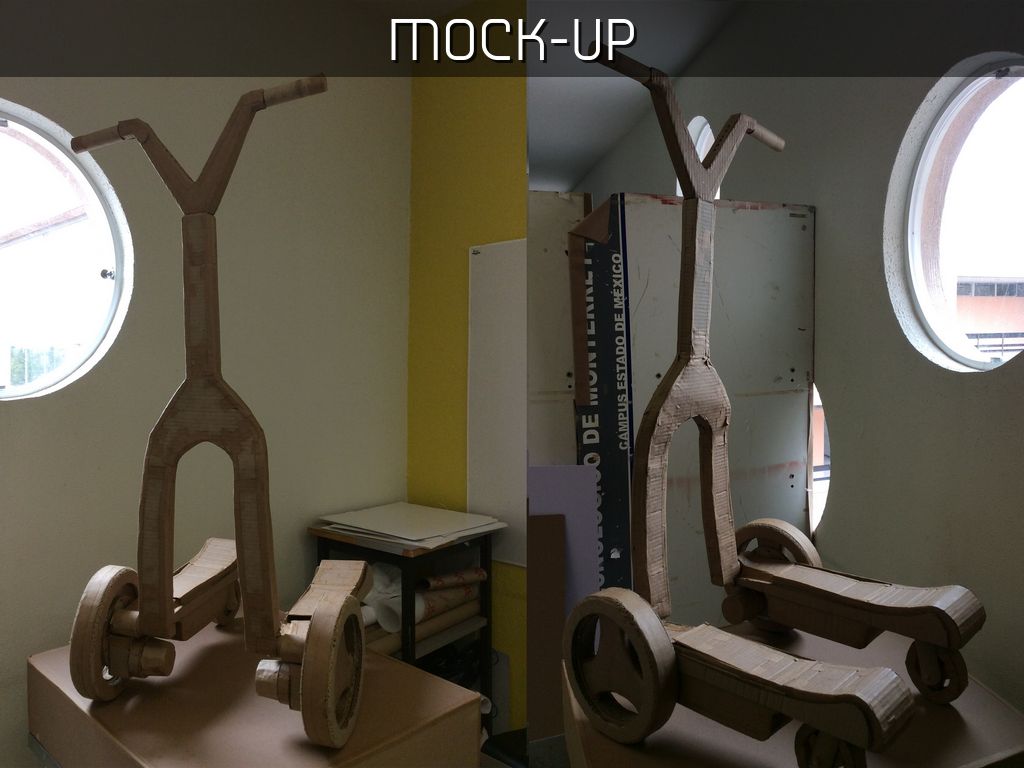

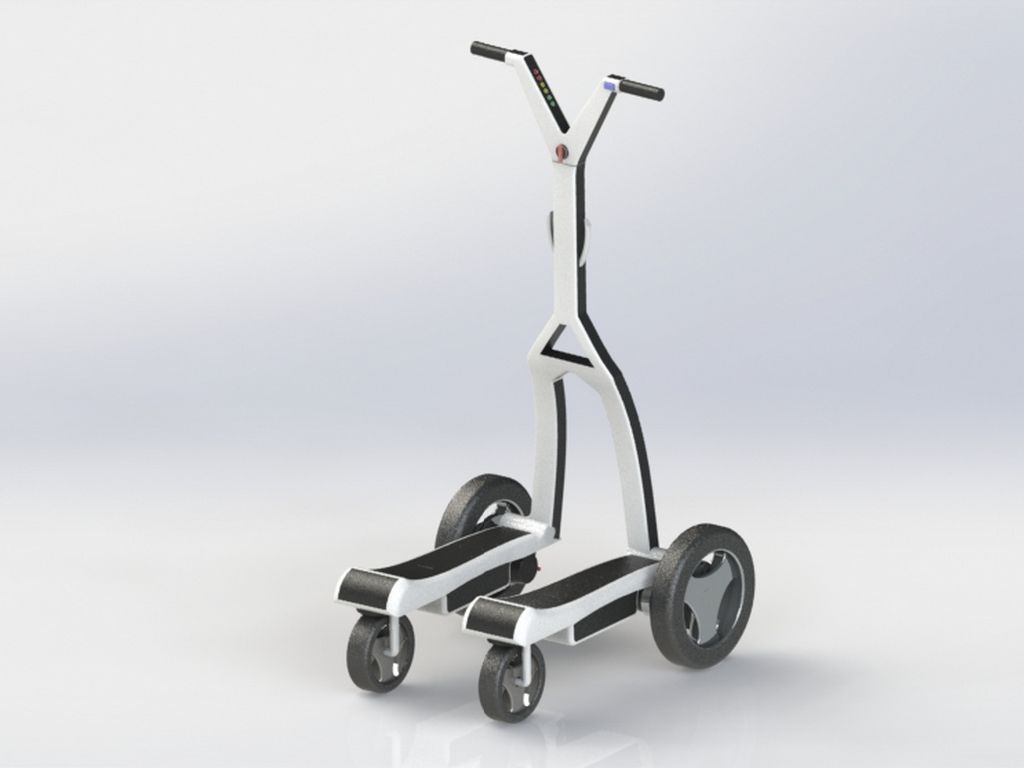

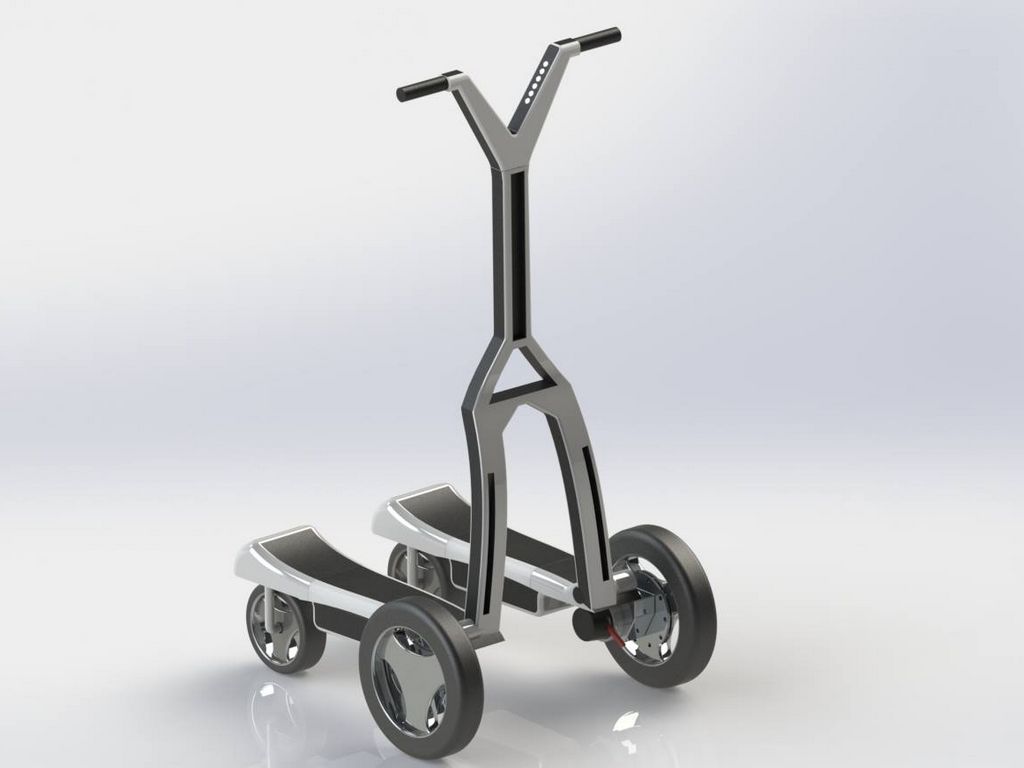

MOCK-UP

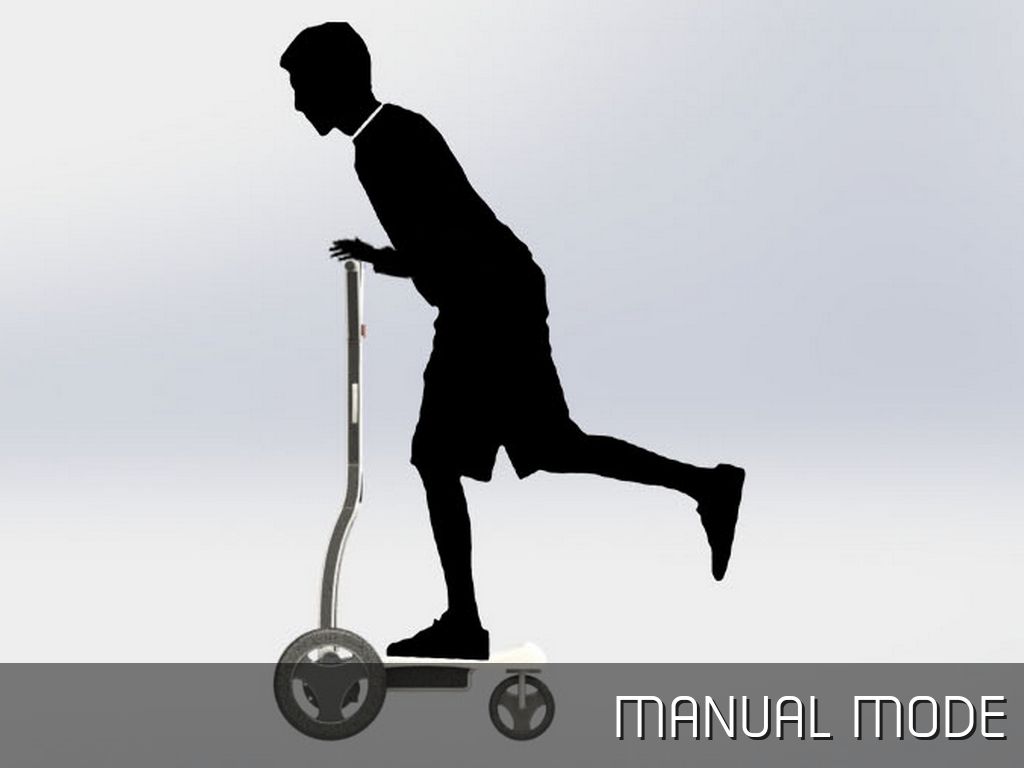

manual mode

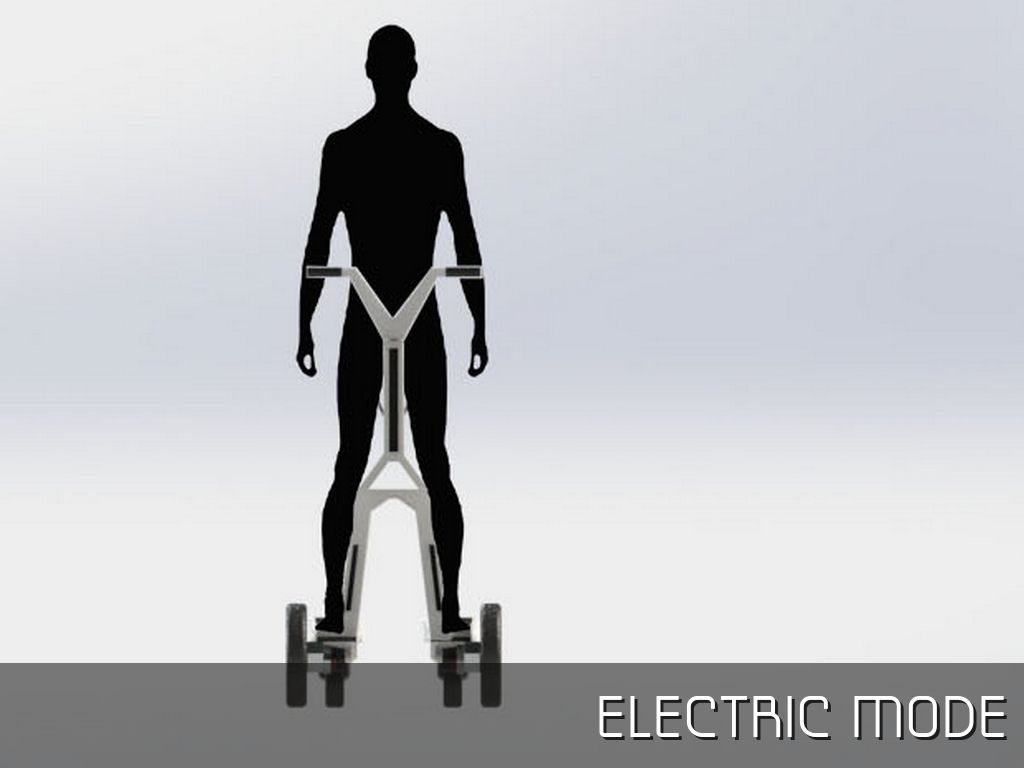

electric mode

estimated user weight

90 kg

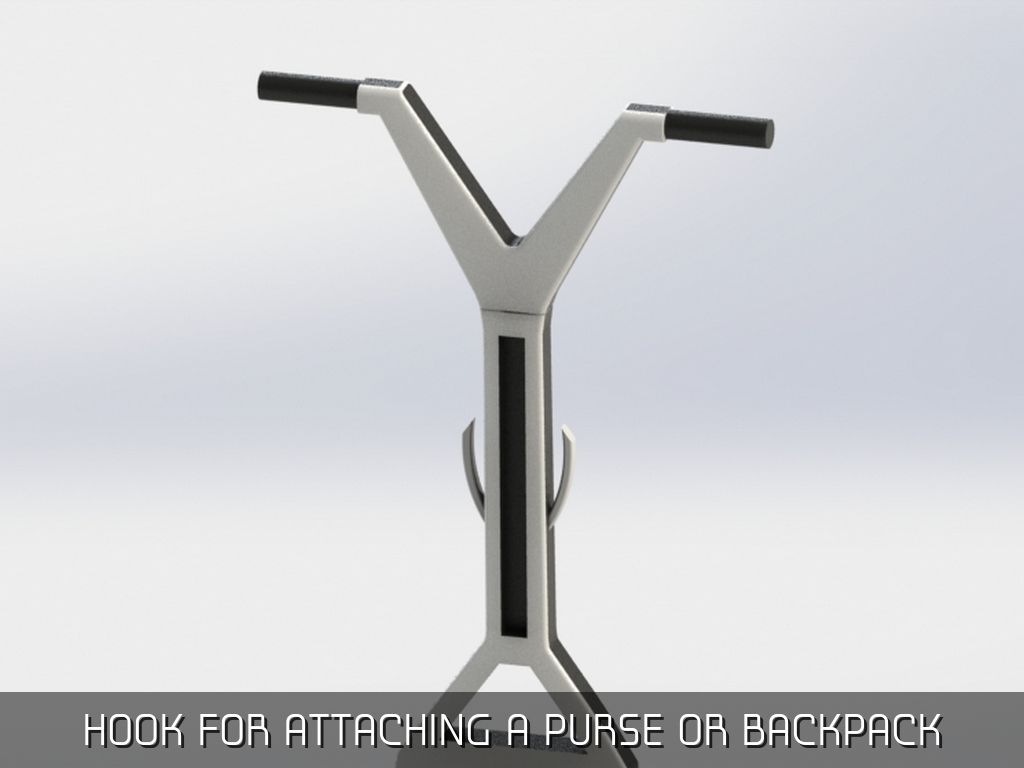

HOOK for attaching a purse or backpack

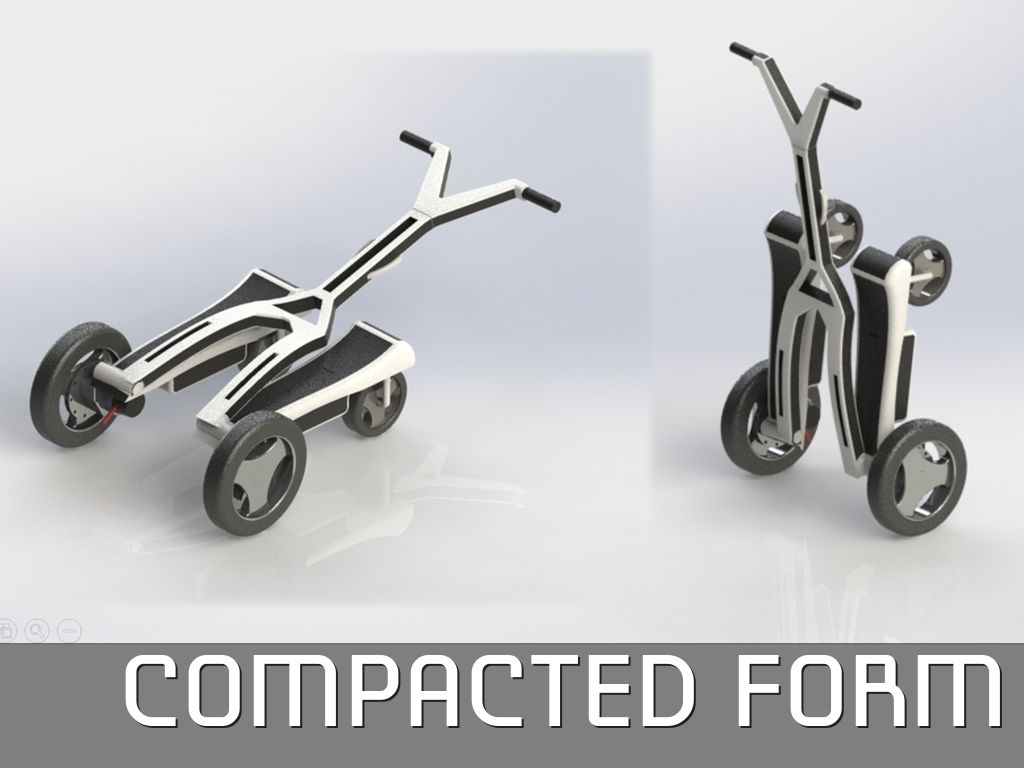

compacted form

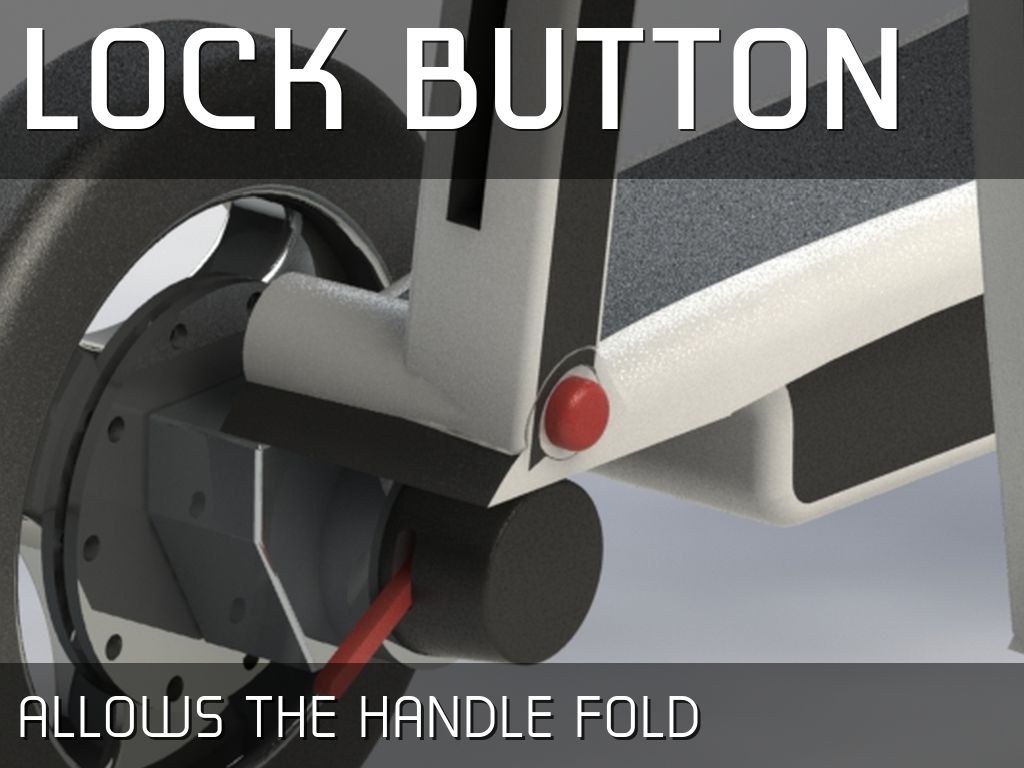

LOCK BUTTON

allows the handle fold

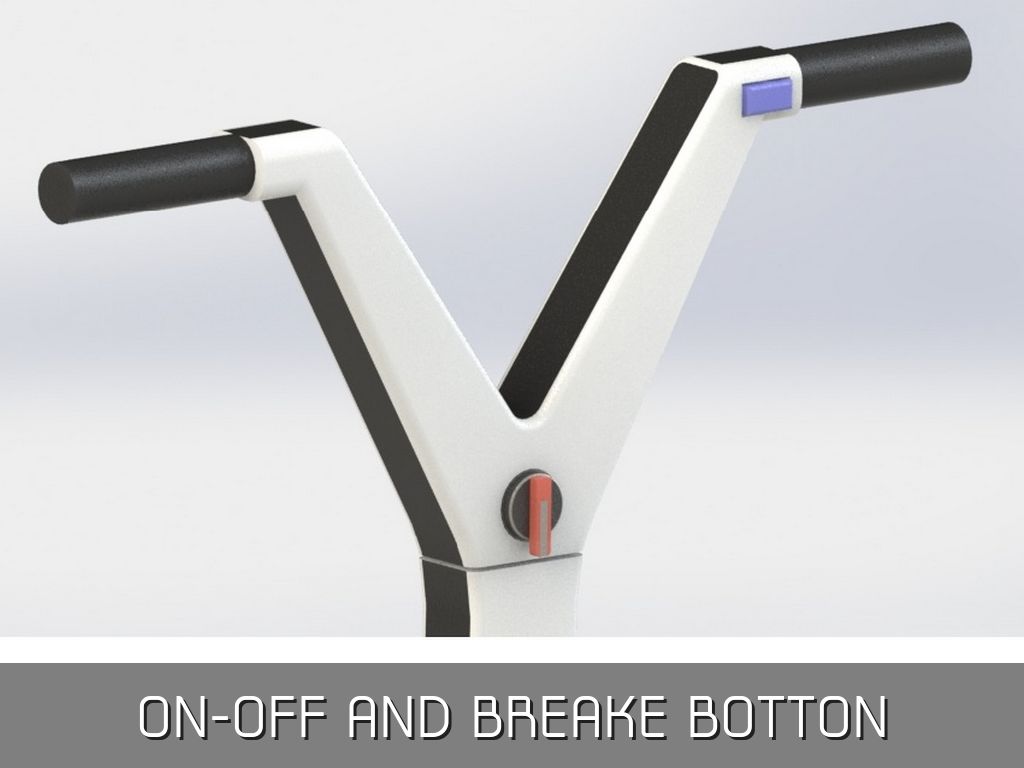

On-off and breake botton

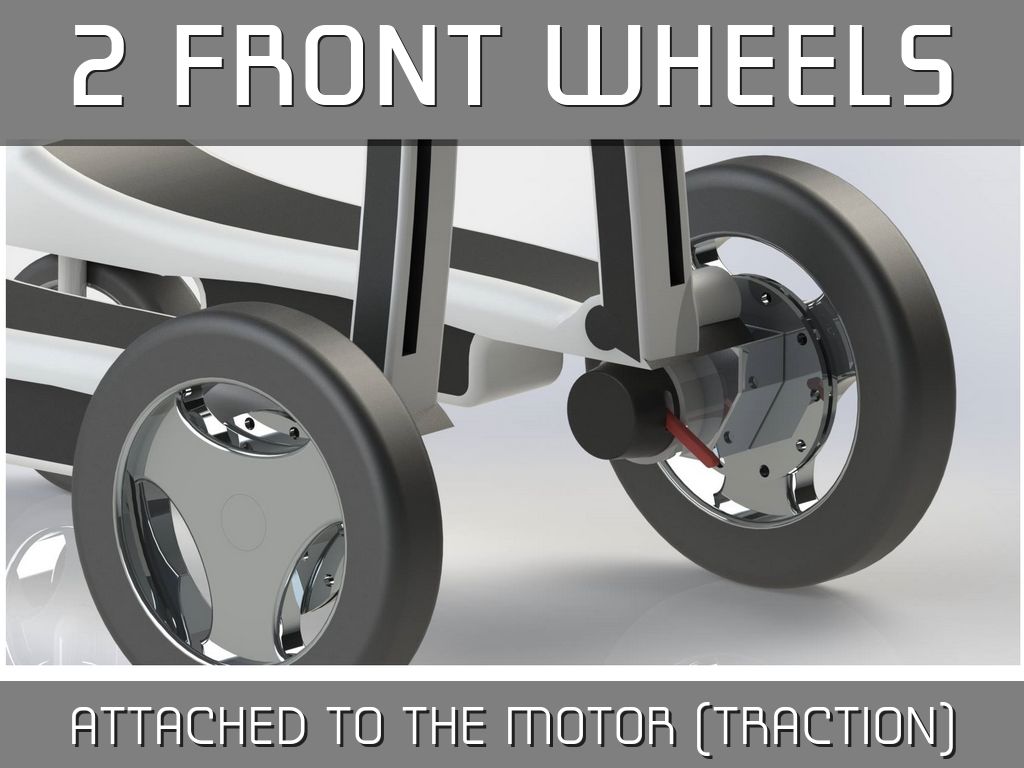

2 front wheels

attached to the motor (traction)

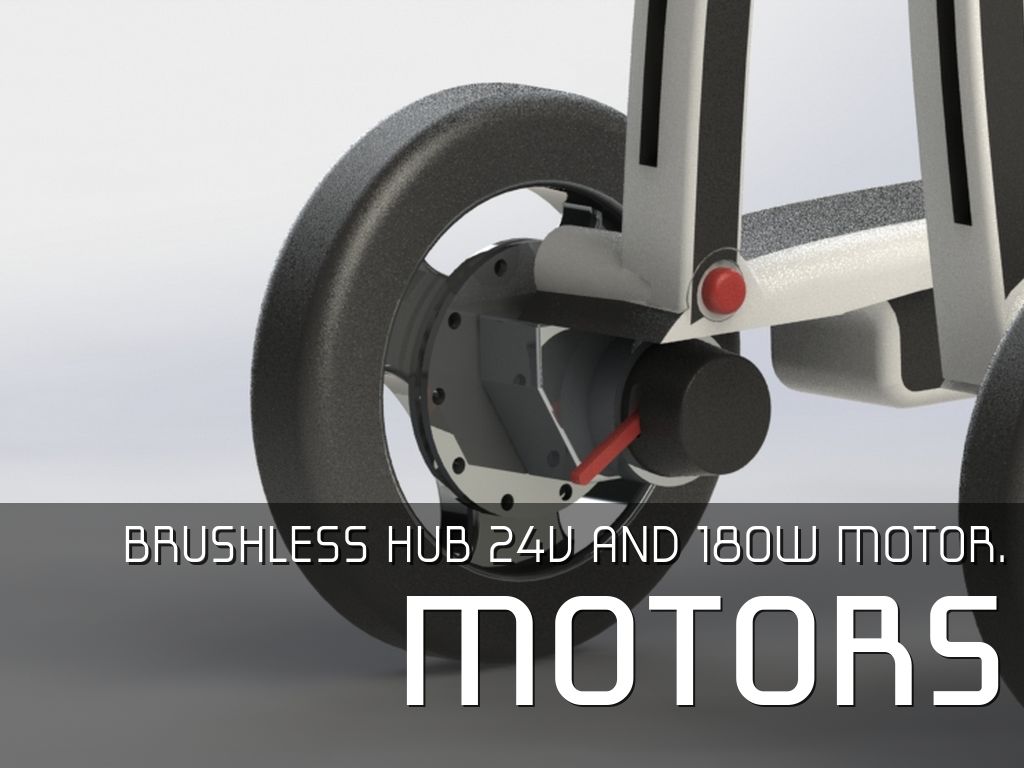

motors

Brushless HUB 24v and 180w motor.

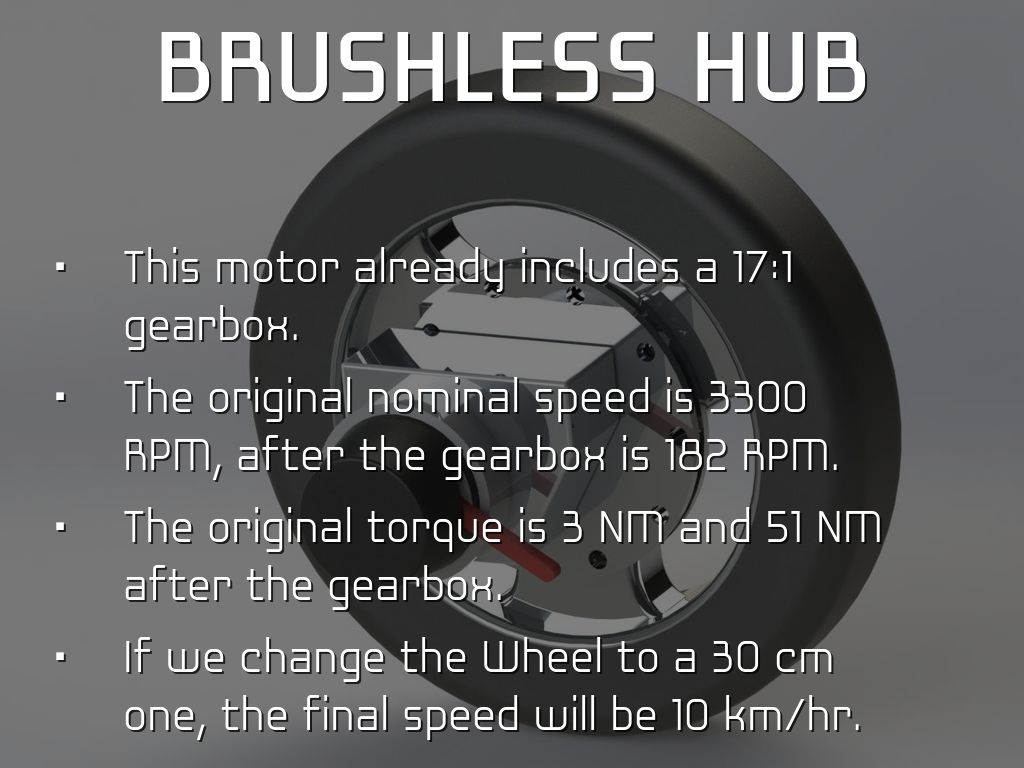

BRUSHLESS HUB

  • This motor already includes a 17:1 gearbox.
  • The original nominal speed is 3300 RPM, after the gearbox is 182 RPM.
  • The original torque is 3 NM and 51 NM after the gearbox.
  • If we change the Wheel to a 30 cm one, the final speed will be 10 km/hr.

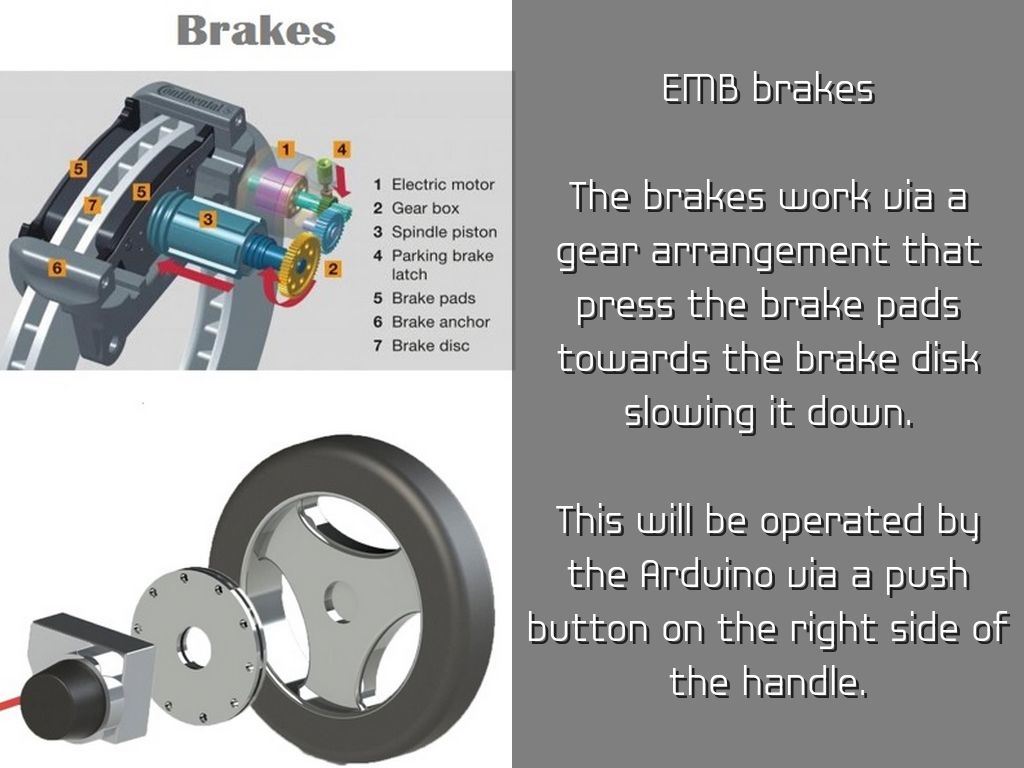

EMB brakes

The brakes work via a gear arrangement that press the brake pads towards the brake disk slowing it down.

This will be operated by the Arduino via a push button on the right side of the handle.

behavior in both bases

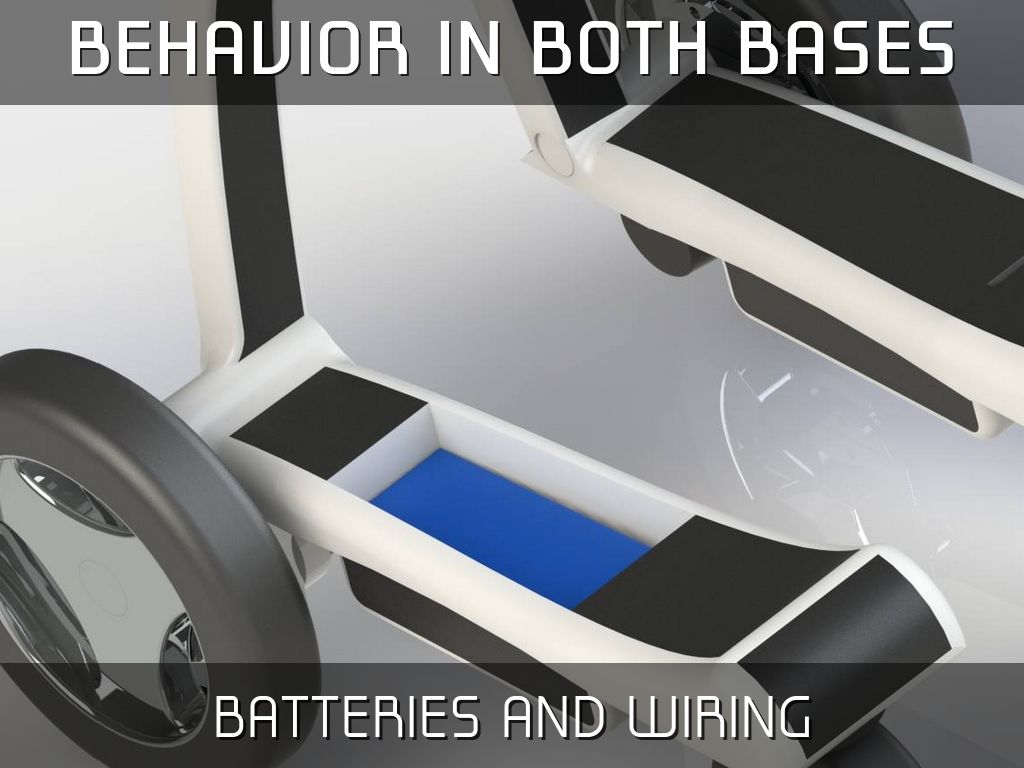

Batteries and wiring

Batteries

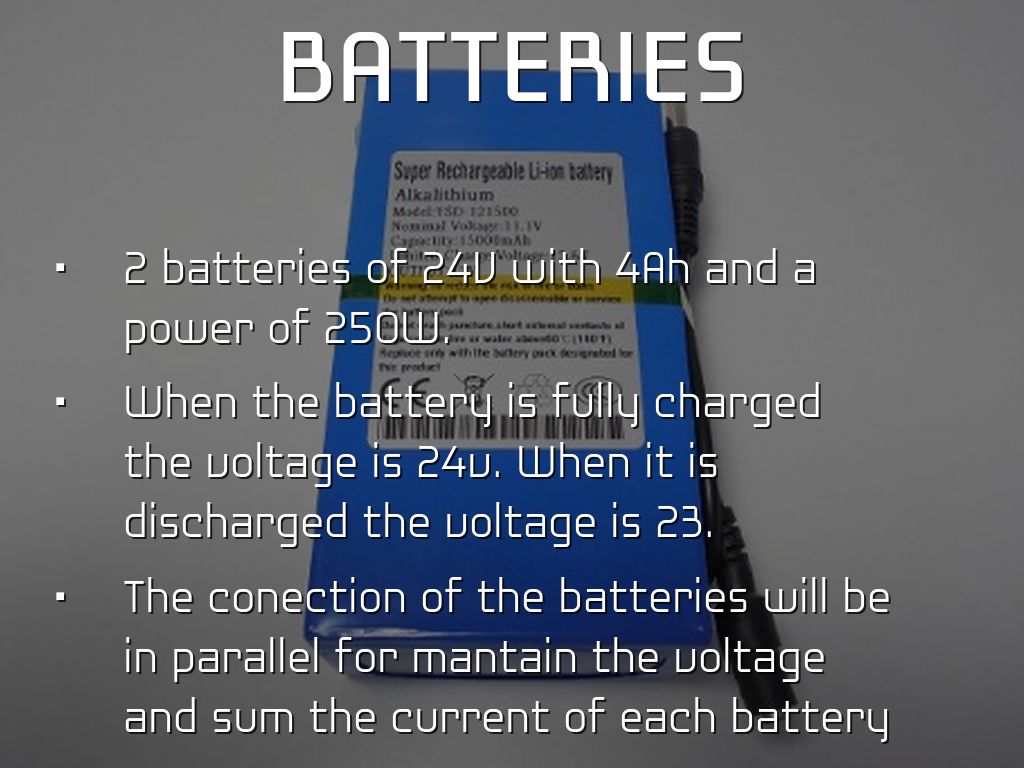

  • 2 batteries of 24V with 4Ah and a power of 250W.
  • When the battery is fully charged the voltage is 24v. When it is discharged the voltage is 23.
  • The conection of the batteries will be in parallel for mantain the voltage and sum the current of each battery

battery life

1:15 hours

direction

Photo by nosha

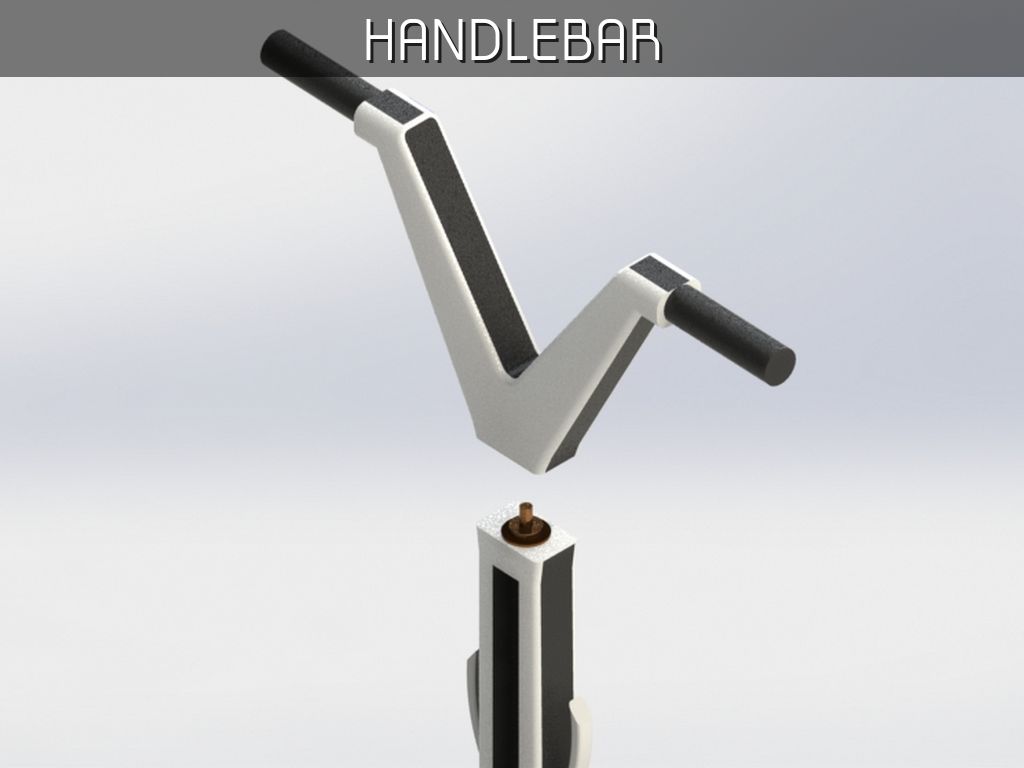

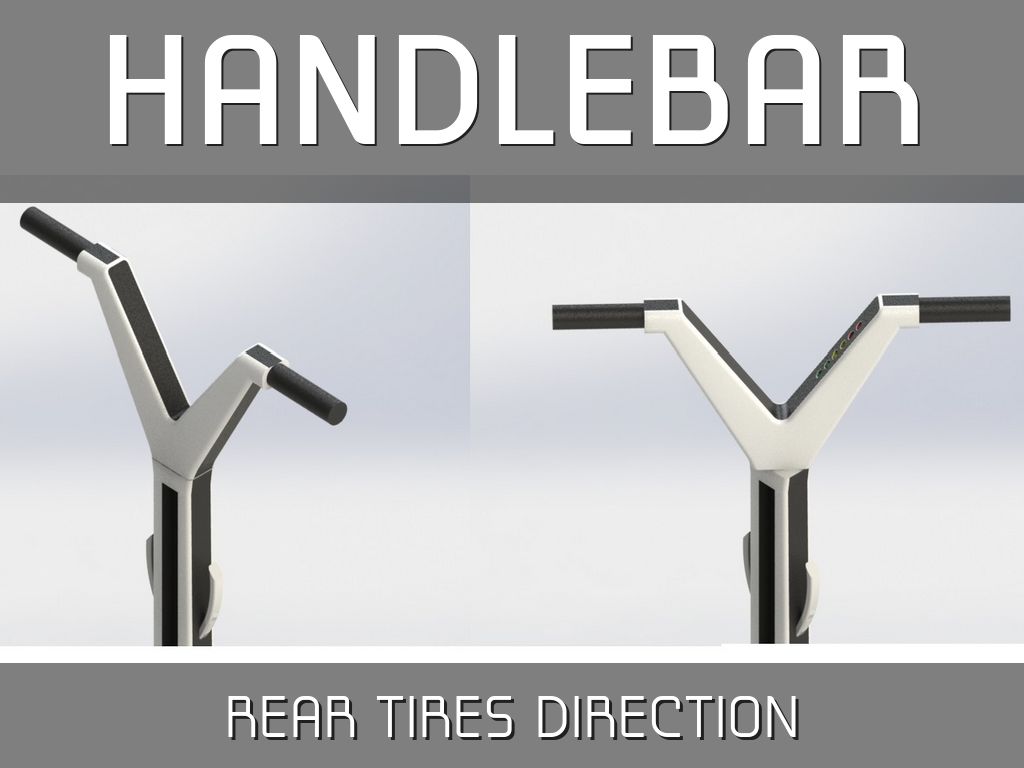

handlebar

Rear tires direction

HANDLEBAR

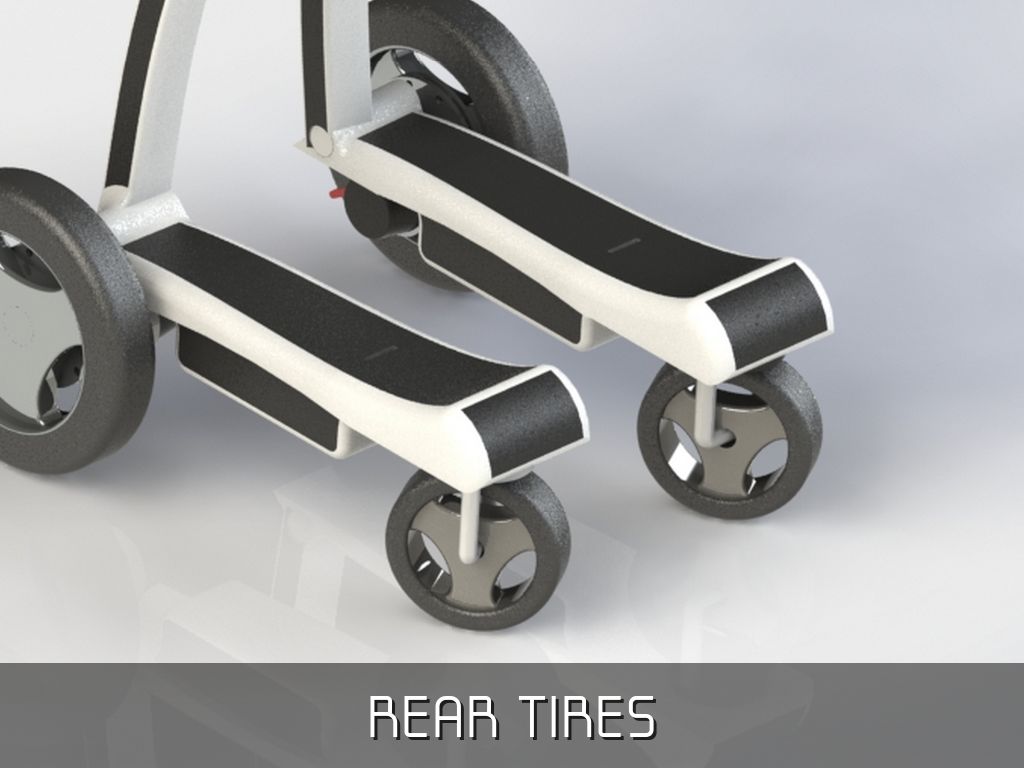

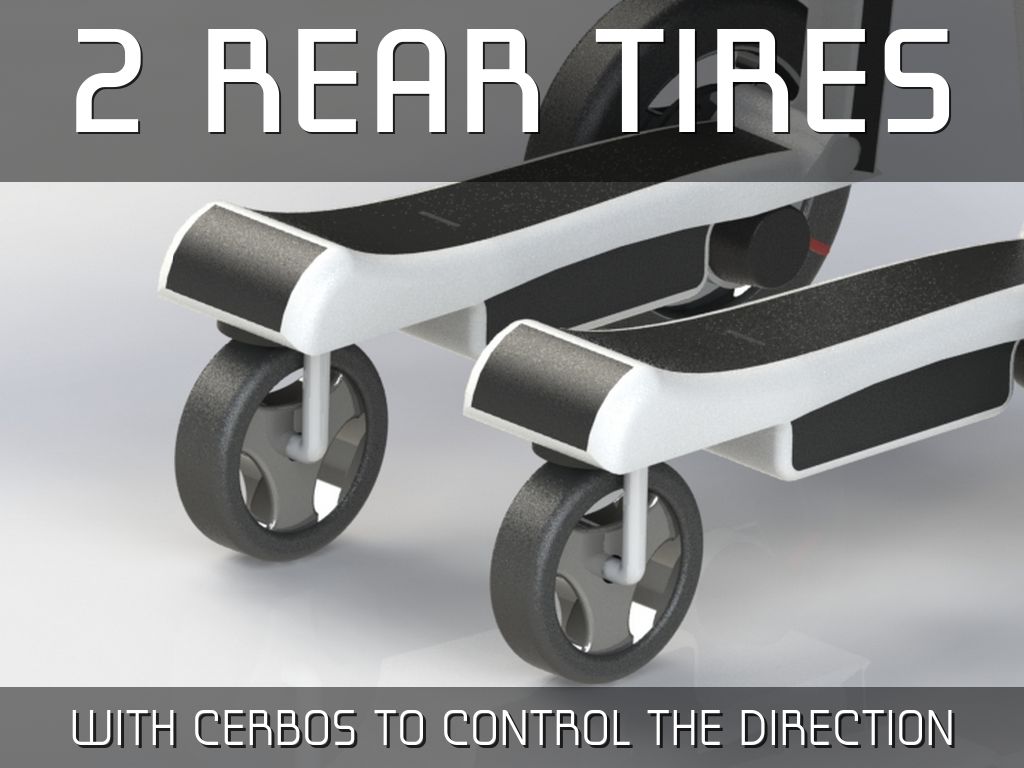

2 rear tires

with cerbos to control the direction

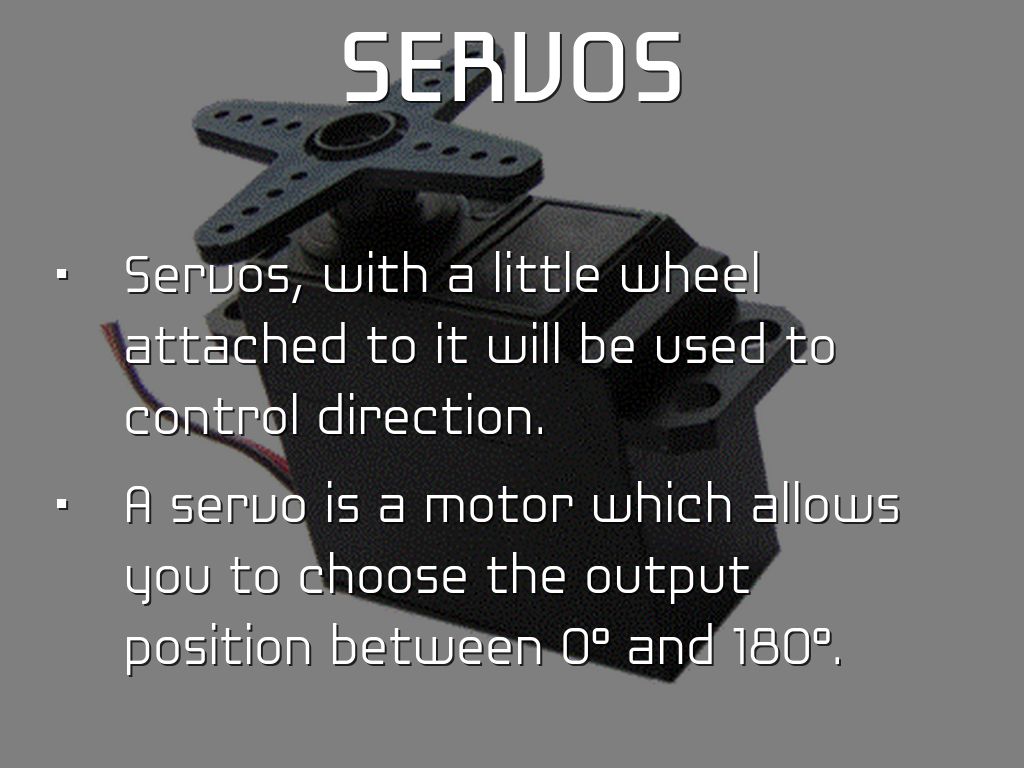

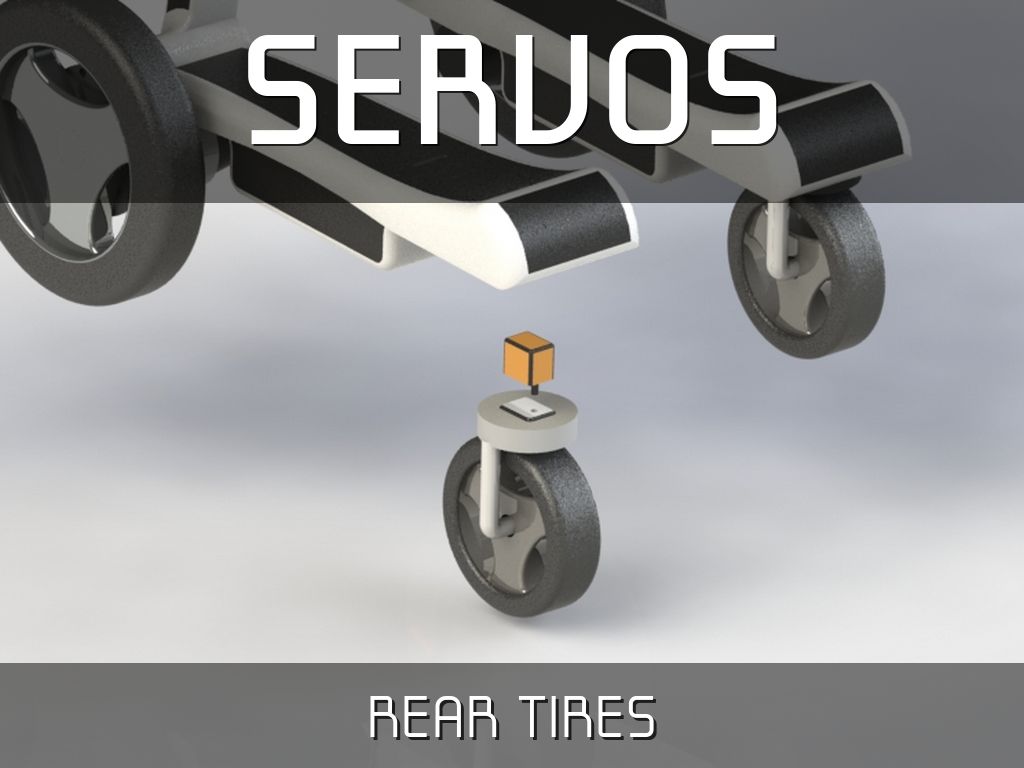

servos

  • Servos, with a little wheel attached to it will be used to control direction.
  • A servo is a motor which allows you to choose the output position between 0° and 180°.

SerVos

Rear tires

REAR TIRES

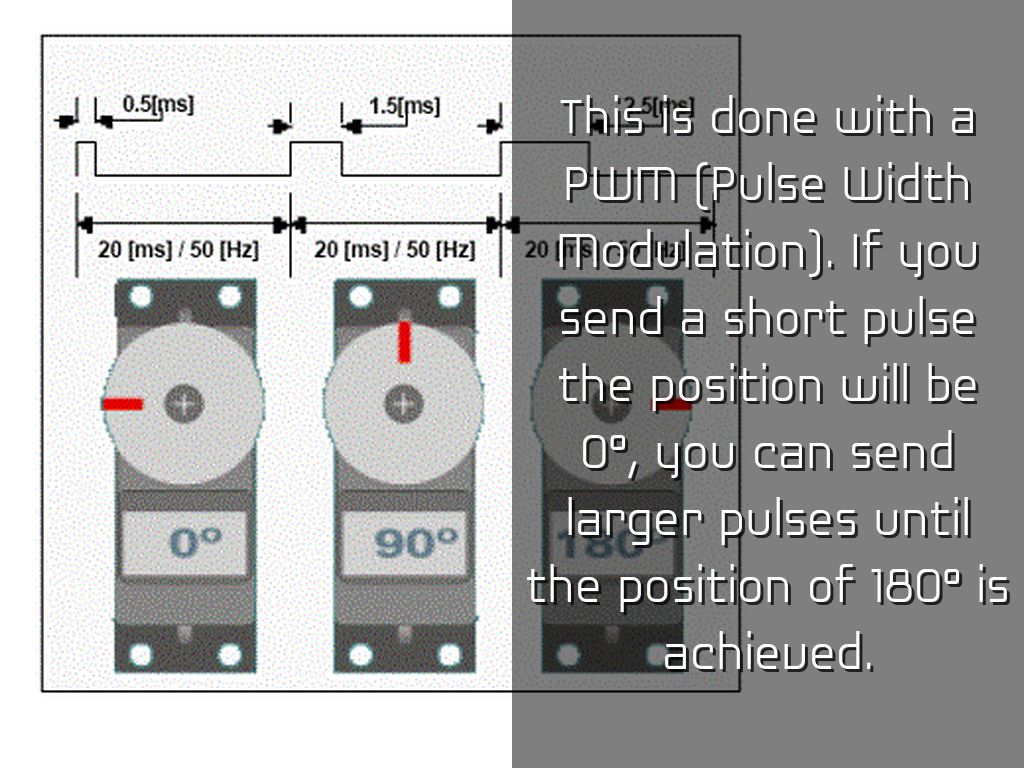

This is done with a PWM (Pulse Width Modulation). If you send a short pulse the position will be 0°, you can send larger pulses until the position of 180° is achieved.

Speed control

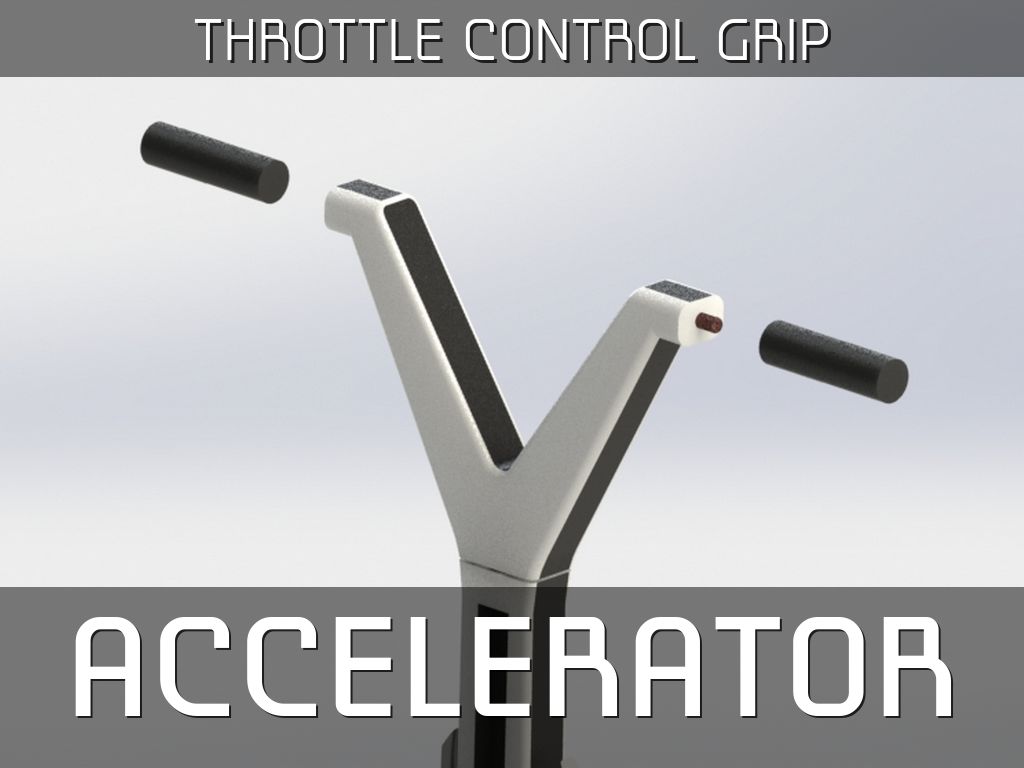

ACCELERATOR

throttle control grip

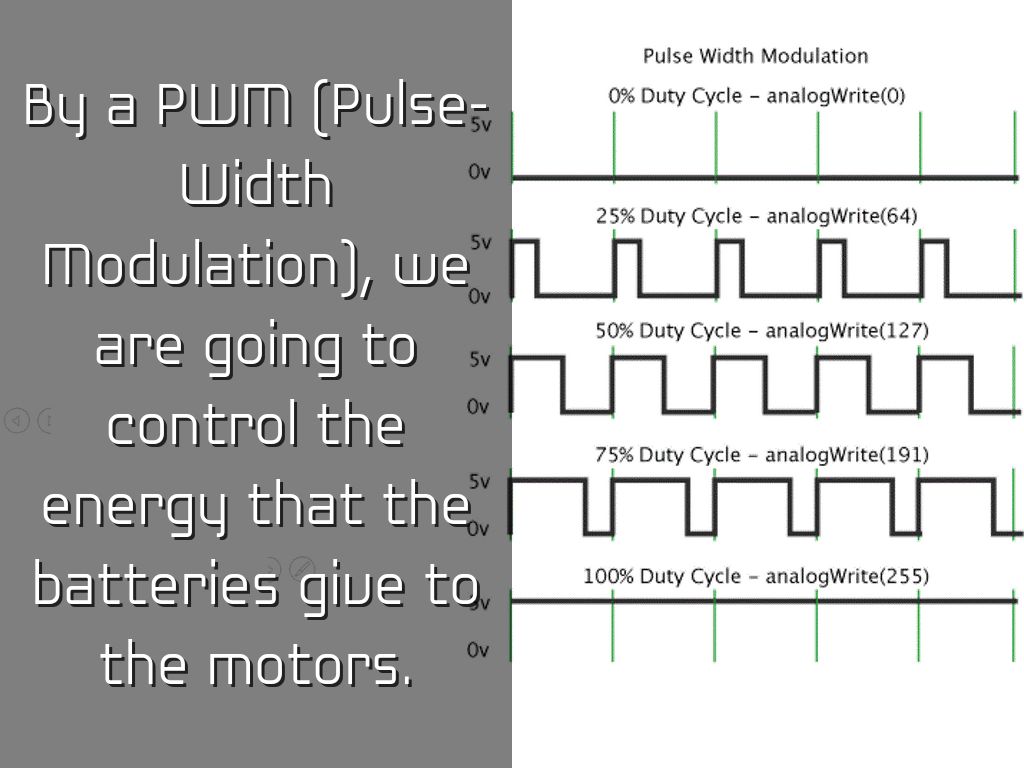

By a PWM (Pulse-Width Modulation), we are going to control the energy that the batteries give to the motors.

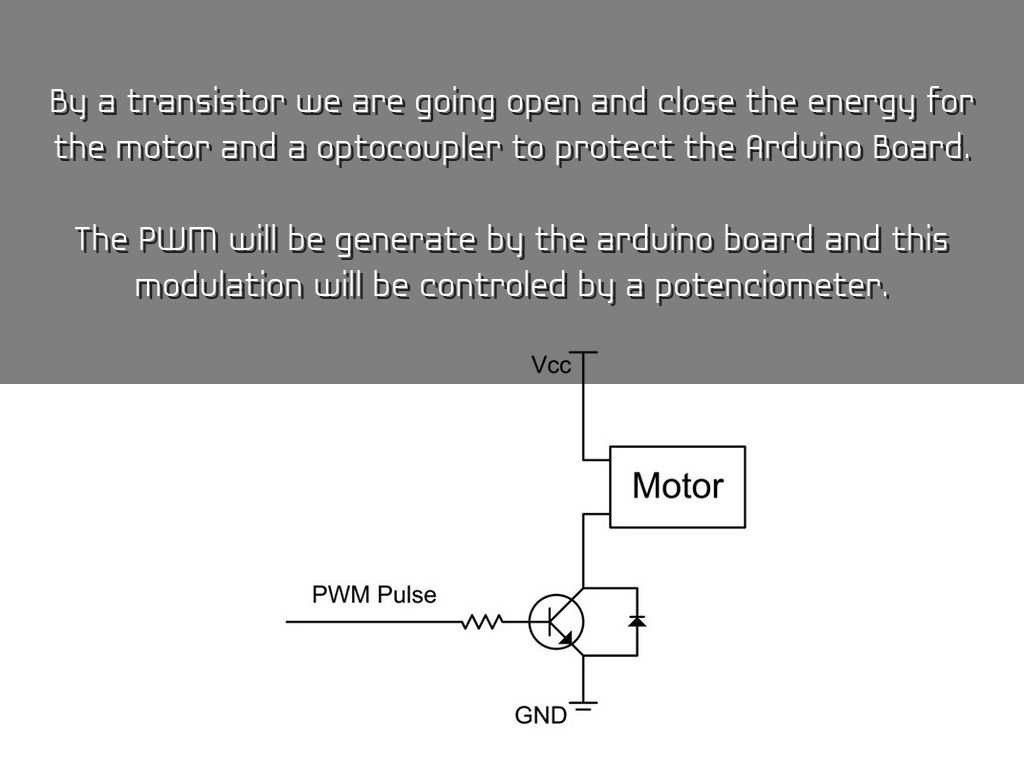

By a transistor we are going open and close the energy for the motor and a optocoupler to protect the Arduino Board.

The PWM will be generate by the arduino board and this modulation will be controled by a potenciometer.

maximum speed

10km/h

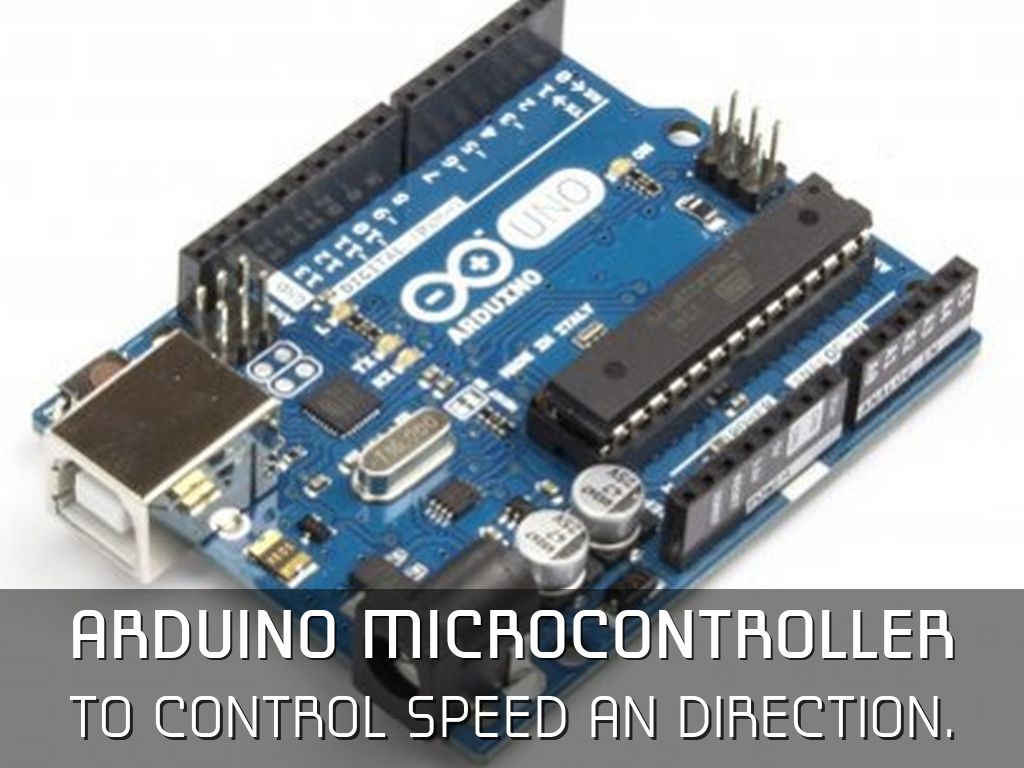

ARDUINO MICROCONTROLLER

to control speed an direction.

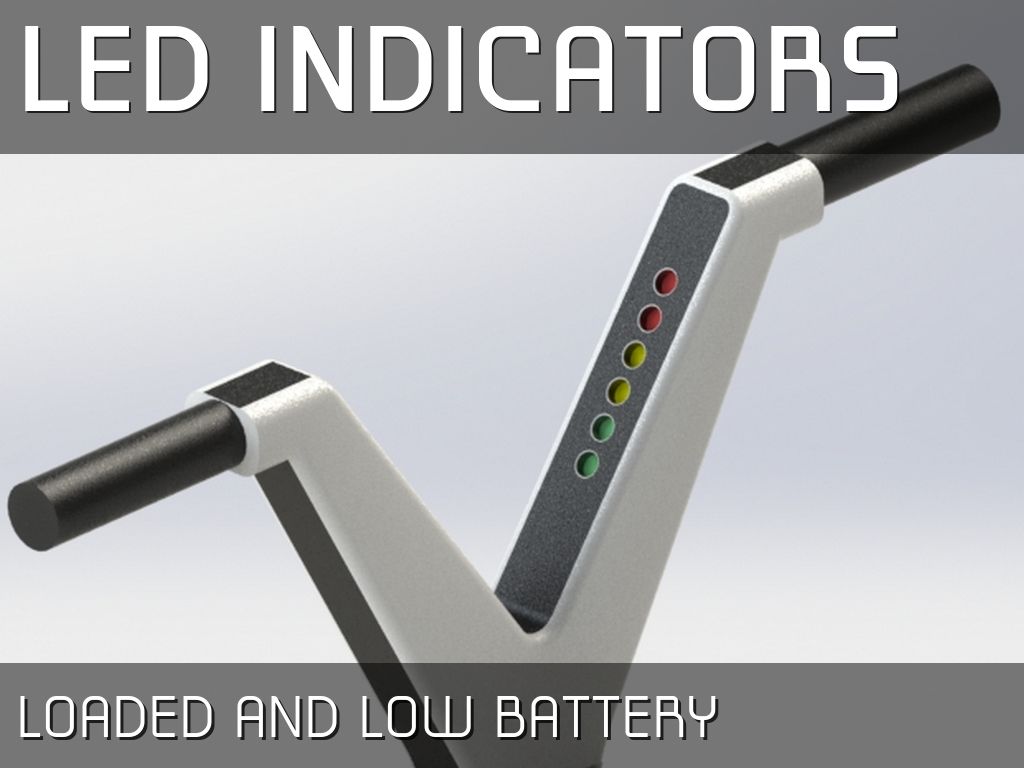

LED indicators

loaded and low battery

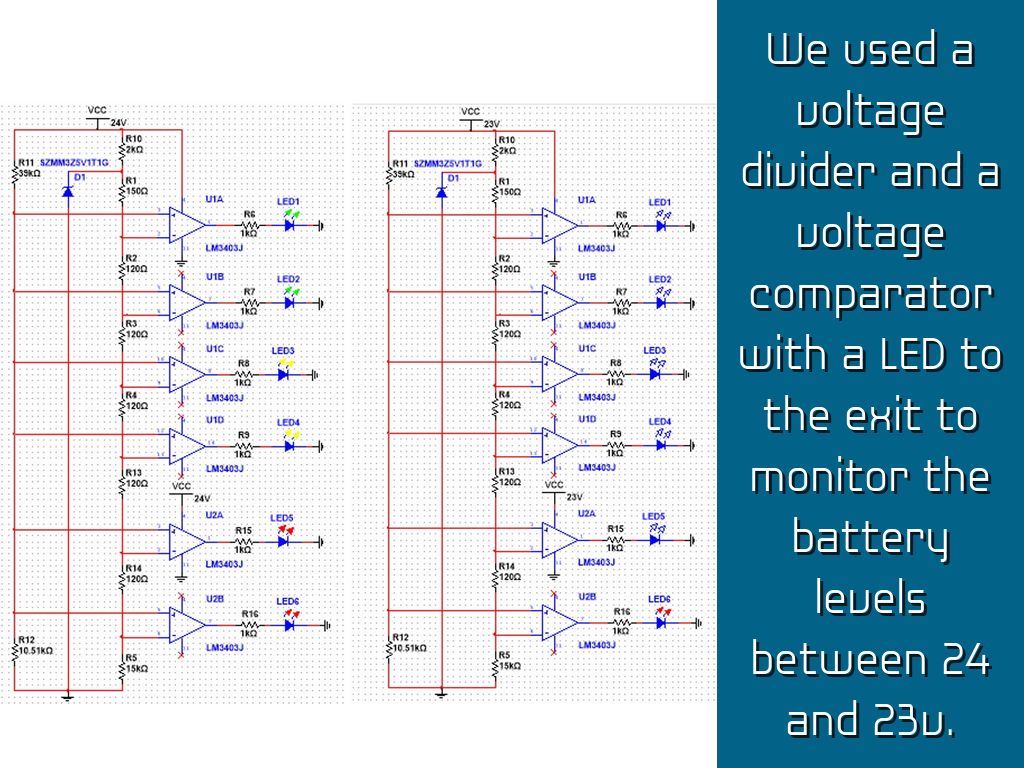

We used a voltage divider and a voltage comparator with a LED to the exit to monitor the battery levels between 24 and 23v.

material

aluminum and  fiberglass

E2 - scooter weight

10 - 12 kg
Photo by ericmcgregor

cost

850 USD approx
Photo by jev55

E2 Scooter solves a mobility problem around universities, industries or companies. Reducing transportation time and avoiding fatigue.

Photo by sciencesque

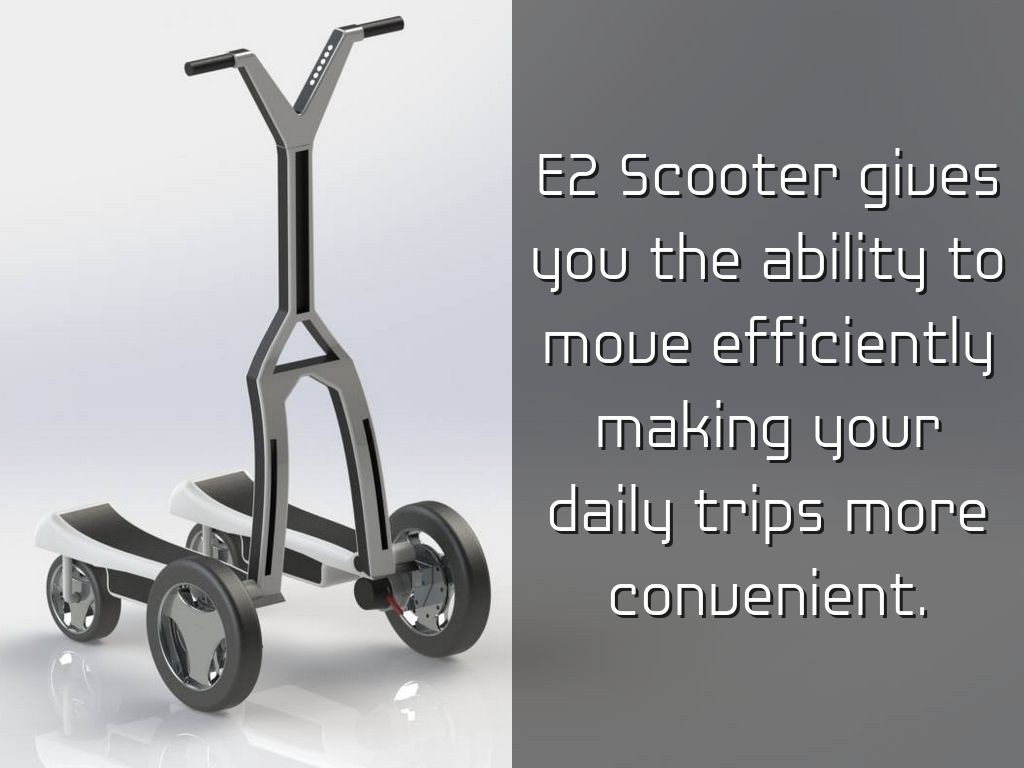

E2 Scooter gives you the ability to move efficiently making your daily trips more convenient.
