Chapter 13 Rhet

Published on Nov 22, 2015

No Description

View Outline

PRESENTATION OUTLINE

POTENTIAL ENERGY

THE ENERGY STORED IN AN OBJECT OR MATERIAL

Photo by DJOtaku

GRAVITATIONAL POTENTIAL ENERGY

THE GAIN IN POTENTIAL ENERGY WHEN AN OBJECT IS LIFTED UP

Photo by VinothChandar

KINETIC ENERGY

THE ENERGY OF A MOVING OBJECT

Photo by explainthatstuff

WORK

FORCE APPLIED TO AN OBJECT TIMES THE DISTANCE THE OBJECT

Photo by Stuck in Customs

SIMPLE MACHINE

A MACHINE WITH FEW MOVING PARTS,MAKING IT EASIER TO DO WORK

Photo by Peer.Gynt

EFFORT FORCE

THE FORCE APPLIED TO A MACHINE

Photo by US Army Africa

RESISTANCE FORCE

THE FORCE THAT A MACHINE ACTS AGINST

Photo by expertinfantry

FULCRUM

THE PIVOT POINT OF A LEVER

Photo by lambdachialpha

MECHANICAL ADVANTAGE

THE NUMBER OF TIMES A MACHINE MULTIPLIES THE FORCE APPLIED

Photo by pedrosimoes7

10.

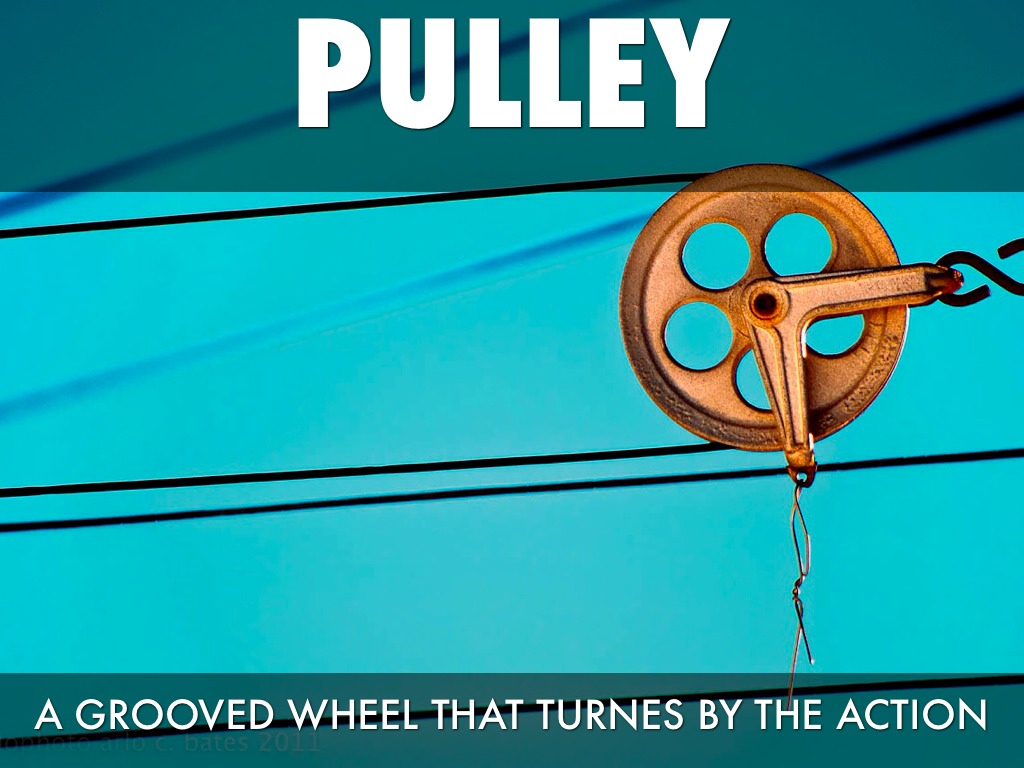

PULLEY

A GROOVED WHEEL THAT TURNES BY THE ACTION

Photo by Arlo Bates

11.

WHEEL AND AXLE

A SIMPLE MACHINE MADE OF A HADLE OR AXIS

Photo by thefixer

12.

INCLINED PLANE

A STRAIGHT,SLANTED SURFACE THAT IS NOT MOVED WEHEN IT IS USED

Photo by slocumjoseph

13.

SCREW

AN INCLINED PLANE WRAPPED AROUND A CENTRAL BAR

Photo by tim caynes

14.

WEDGE

ONE OR A COMBINATION OF TWO INCLINED PLANE

Photo by Leo Reynolds

15.

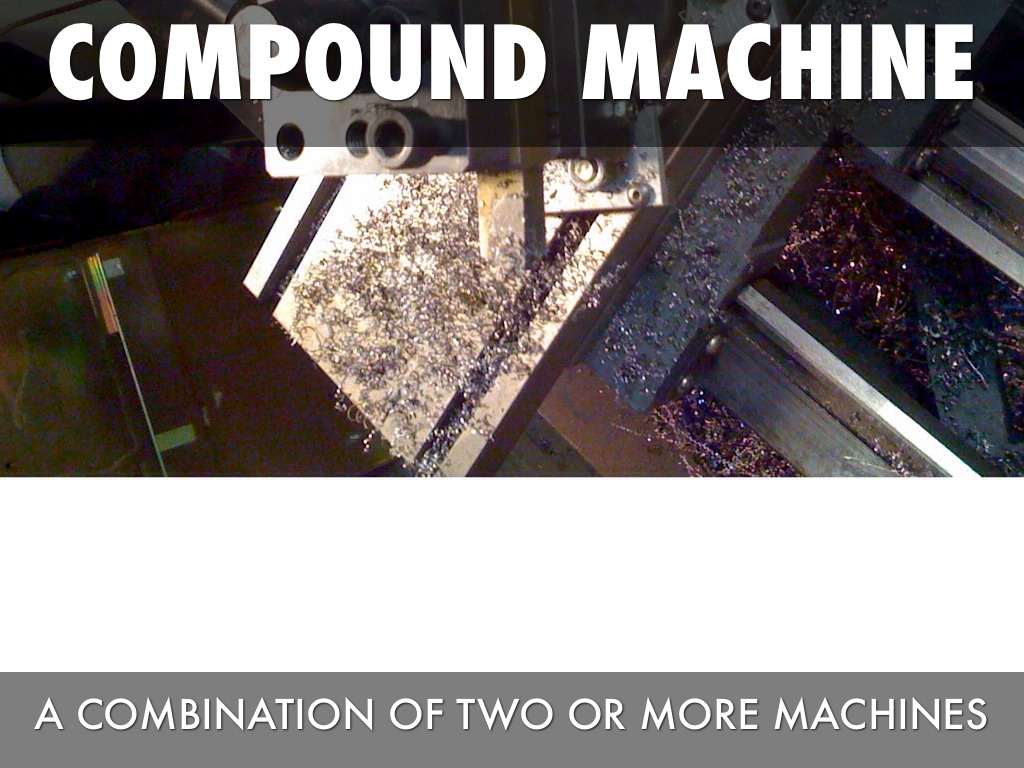

COMPOUND MACHINE

A COMBINATION OF TWO OR MORE MACHINES

Photo by Josh Kopel

16.

EFFICIENCY

A RATIO OF THE WORK DONE BY A MCHINE

Photo by wbaiv
