PRESENTATION OUTLINE
It produces carbon dioxide, water, and ATP (usable energy)
Photo by freefotouk
6O2 + C6H12O6 ---> 6CO2 + 6H2O + 36ATP
Photosynthesis and Cellular Respiration are complimentary processes.
Photo by Georgie Sharp
Photosynthesis removes carbon dioxide from the air and cellular respiration puts it back.
Photo by mamnaimie piotr
Photosynthesis releases oxygen into the atmosphere and cellular respiration uses oxygen to release energy from the food.
Photo by joebeone

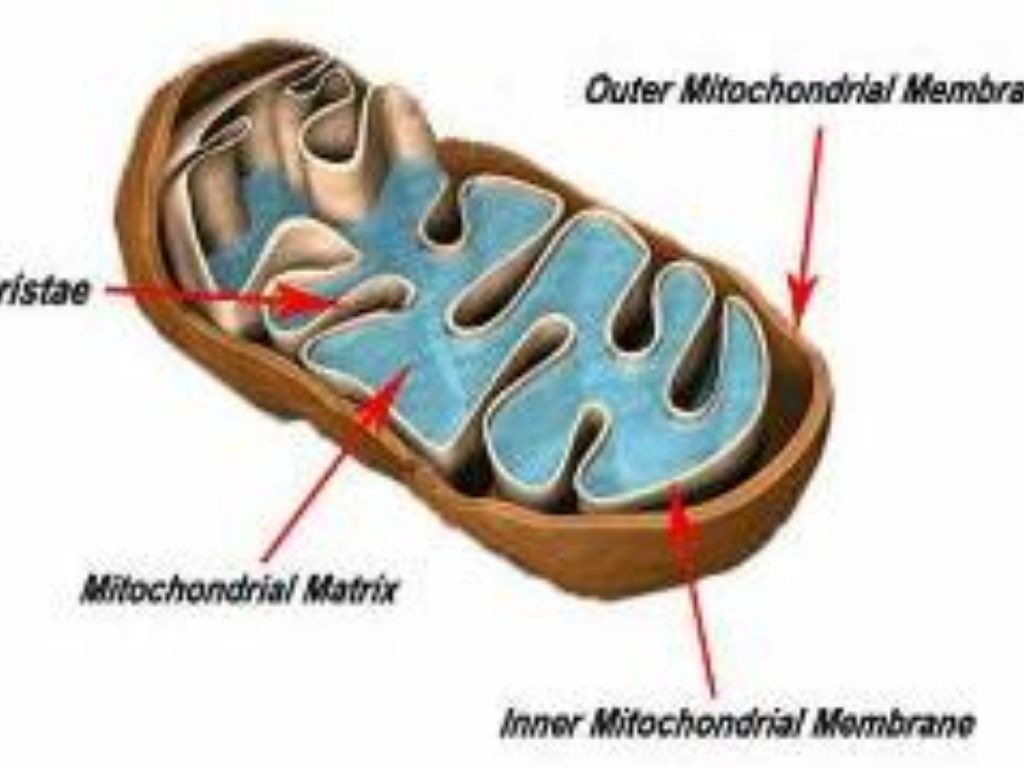

The organelle important in cellular respiration is the mitochondrion.
Photo by divinenephron
The internal membrane has many folds and turns that increase the surface area of the membrane.
Photo by justmakeit
The space between the inner and outer membrane is called the INTERMEMBRANE SPACE.
Photo by Roanish
The space inside the inner membrane is called the MATRIX.
Photo by JD Hancock
Untitled Slide
Remember: Glucose stores energy and ATP is the usable form of energy for the cell, so the energy in glucose must be transferred to ATP.
Breaking down glucose all at once would burn up the cell; therefore glucose must be broken down in steps.
Photo by JefferyTurner
Glycolysis occurs in the cytoplasm.
Photo by Dougal Campbell
From here there are two possible paths depending on whether there is oxygen available or not.
Photo by ntr23
If oxygen is present, the process will be aerobic.
Photo by stef_dit_patoc
If oxygen is not present, the process is anaerobic.
Photo by Albaraa Mehdar
AEROBIC
Photo by USAG-Humphreys
The energy in the pyruvic acids is used to make ATP from ADP, there are two stages to this:

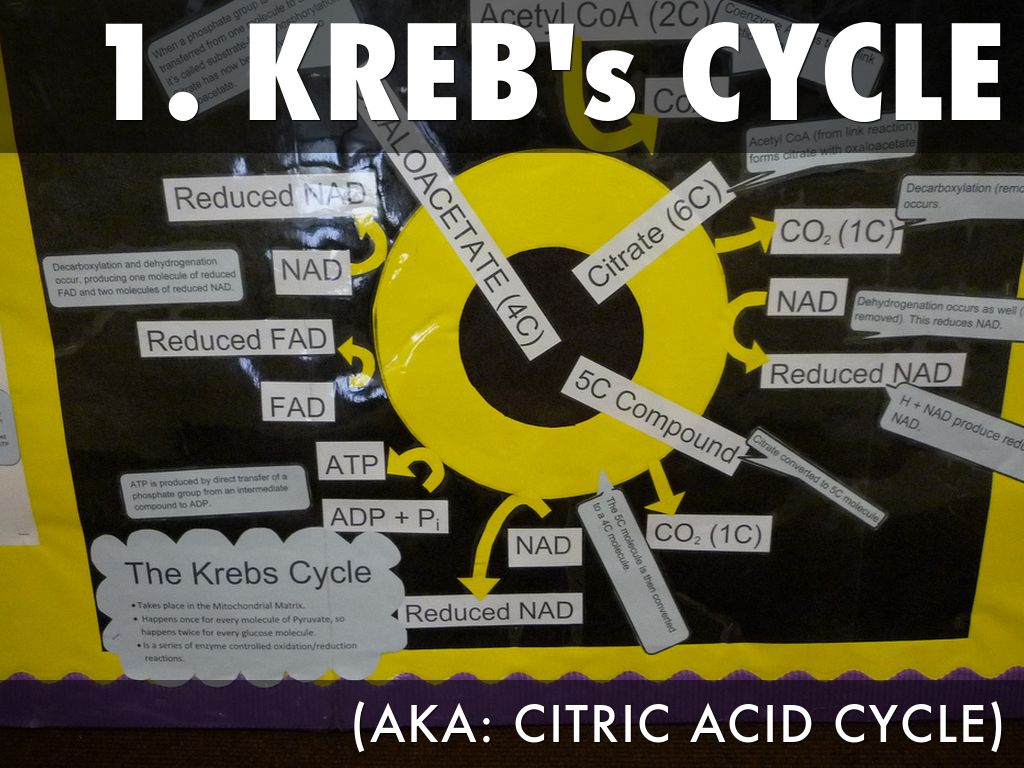

Using oxygen, enzymes in the KREBs CYCLE break down pyruvic acid to form 3 carbon dioxide molecules, 2 ATP, and high-energy electron carriers.
This occurs in the matrix of the mitochondria.
Photo by Gregory Han
Uses high-energy electron carriers to convert ADP into ATP. This occurs in the inner membrane of the Mitochondria.
ANAEROBIC
Photo by Machine Project
Fermentation: allows glycolysis to continue producing ATP even if there is no oxygen present.
Photo by brankomaster
Different organisms have different end products of fermentation.
Lactic Acid Fermentation
Photo by Nottingham Vet School
- occurs in animal, bacterial, and fungal cells.
- converts pyruvic acid into lactic acid.
The process in bacterial and fungi is used in the production of yogurt and cheeses
Photo by arbyreed
When lactic acid builds up in muscle cells it causes burning a fatigue.
Photo by squesada70
In us it results in being sore after a hard aerobic workout.
Photo by deadmanjones
Alcoholic Fermentation
Photo by jenny downing
occurs in yeast and plant cells.
Photo by Konstantin Lazorkin
converts pyruvic acid in ethyl alcohol and carbon dioxide.
Photo by VanDerFoto
This process is used in the production of alcoholic beverages and rising breads (carbon dioxide bubbles make yeast breads rise.)
Photo by sierravalleygirl
