1.

OUR BRIDGE VOCABULARY

BY HYERI & JUNGMEE
Photo by Daniel Peckham
2.

ABUTMENT

SUPPORT FOR END OF BRIDGE
Photo by tj.blackwell
3.

ANCHORAGE

FOUNDATION SECURING SUSPENSION BRIDGE CABLES
Photo by peter.guyan
4.

ARCH

SEMICIRCULAR STRUCTURE
Photo by Ross2085
5.

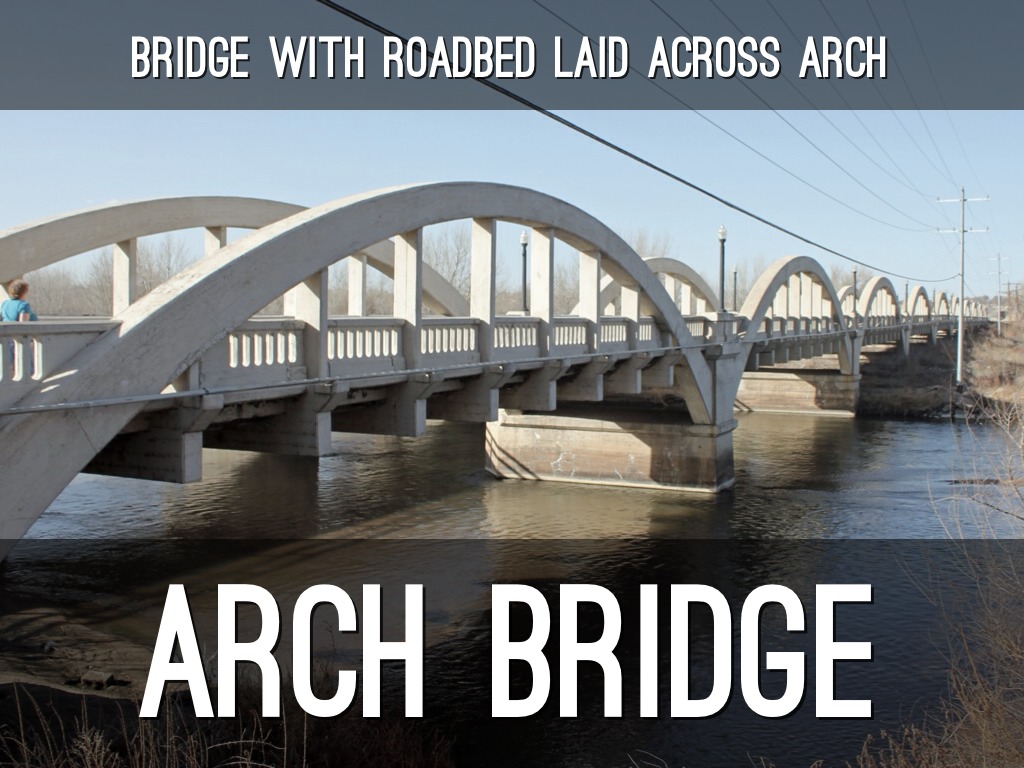

ARCH BRIDGE

BRIDGE WITH ROADBED LAID ACROSS ARCH
Photo by Jeffrey Beall
6.

PIER

VERTICAL COLUMN HOLDING BRIDGE
Photo by Nick Kenrick. poor internet. soon will comment etc
7.

DISTANCE

TOTAL LENGTH OF BRIDGE
Photo by eutouring
8.

LIVE LOAD

WEIGHT OF ANYTHING ON A BRIDGE
Photo by Miradortigre
9.

DEAD LOAD

WEIGHT OF BRIDGE ALONE
Photo by Jim Nix / Nomadic Pursuits
10.

SPAN

DISTANCE BETWEEN 2 SUPPORTS OF BRIDGE
Photo by Jim Nix / Nomadic Pursuits
11.

PYLON

VERTICAL STRUCTURE WHICH RADIATES CABLE-STAYED BRIDGE
Photo by Shawn Clover
