1.
NANPU BRIDGE
BY: GARRETT MCMAHON
Photo by
dgrice
2.

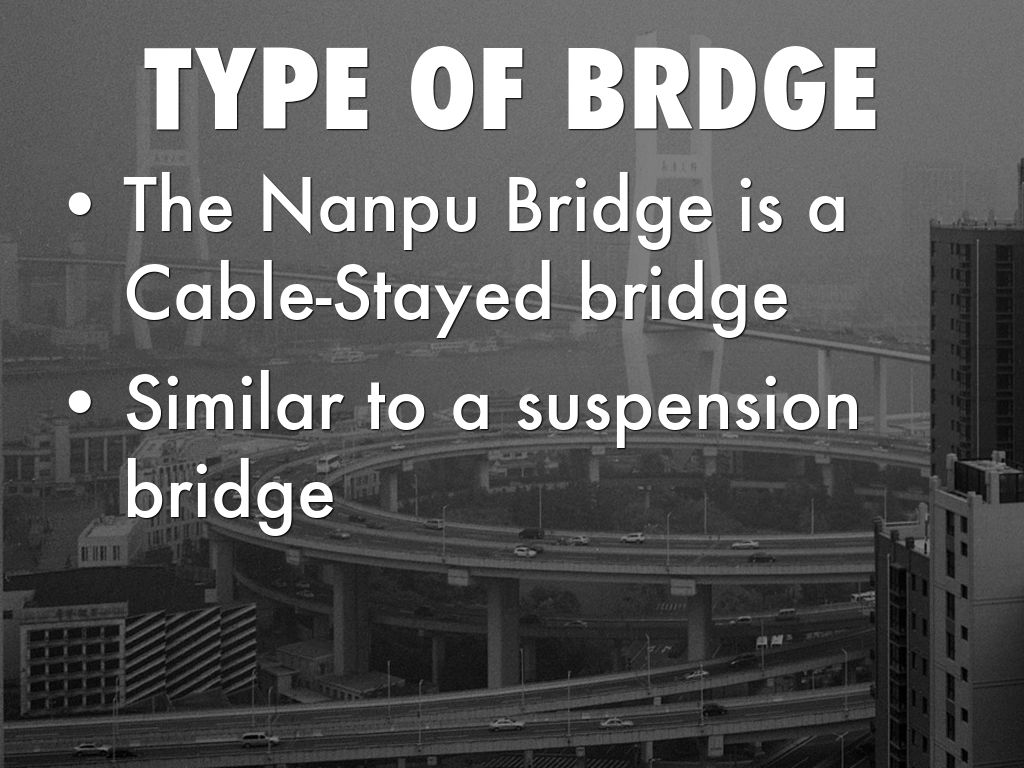

TYPE OF BRDGE
The Nanpu Bridge is a Cable-Stayed bridge
Similar to a suspension bridge
Photo by
leniners
3.
MATERIAL USED
The material used to build this bridge is a composite structure of steal and concrete
Photo by
leniners
4.

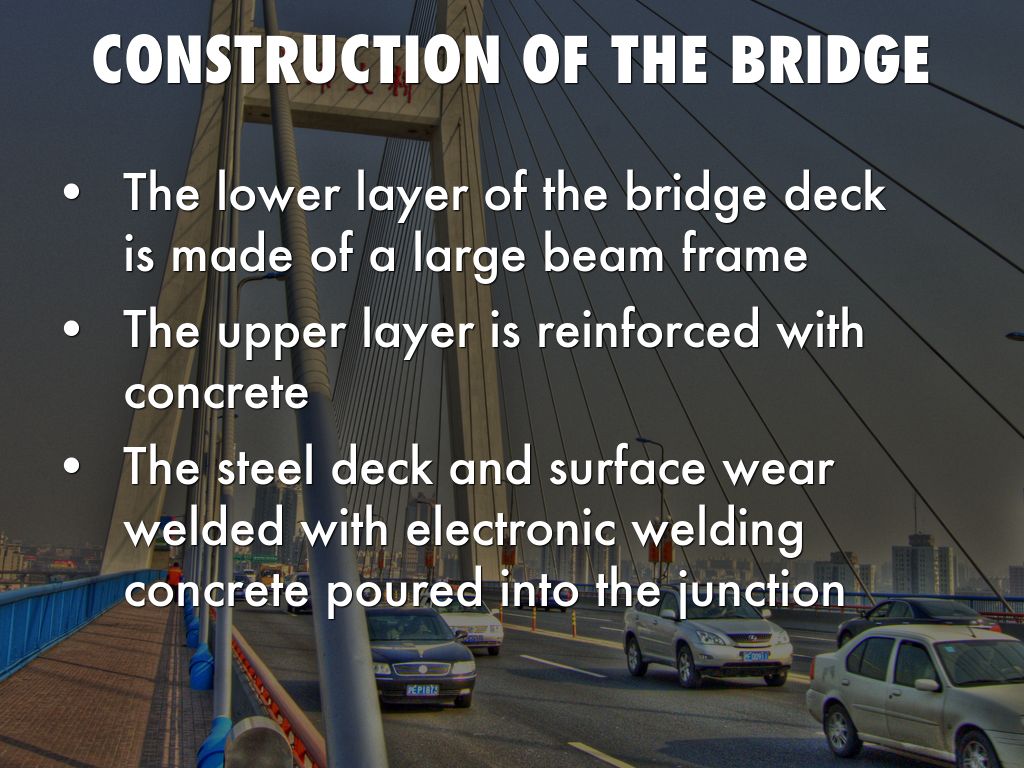

CONSTRUCTION OF THE BRIDGE
The lower layer of the bridge deck is made of a large beam frame
The upper layer is reinforced with concrete
The steel deck and surface wear welded with electronic welding concrete poured into the junction
Photo by
@yakobusan Jakob Montrasio 孟亚柯
5.
HISTORY
The Nanpu Bridge is the first bridge to cross the Huangpu River from central Shanghai
The bridges special design and location also make it an attraction for locals and travelers, it's more spectacular at night
Photo by
Matthew Stinson
6.
NANPU BRIDGE
Total length : 27,382
Total Hight : 492'
Date opened : December 19, 1988
Carries 7 lanes
Photo by
leniners
7.
Untitled Slide

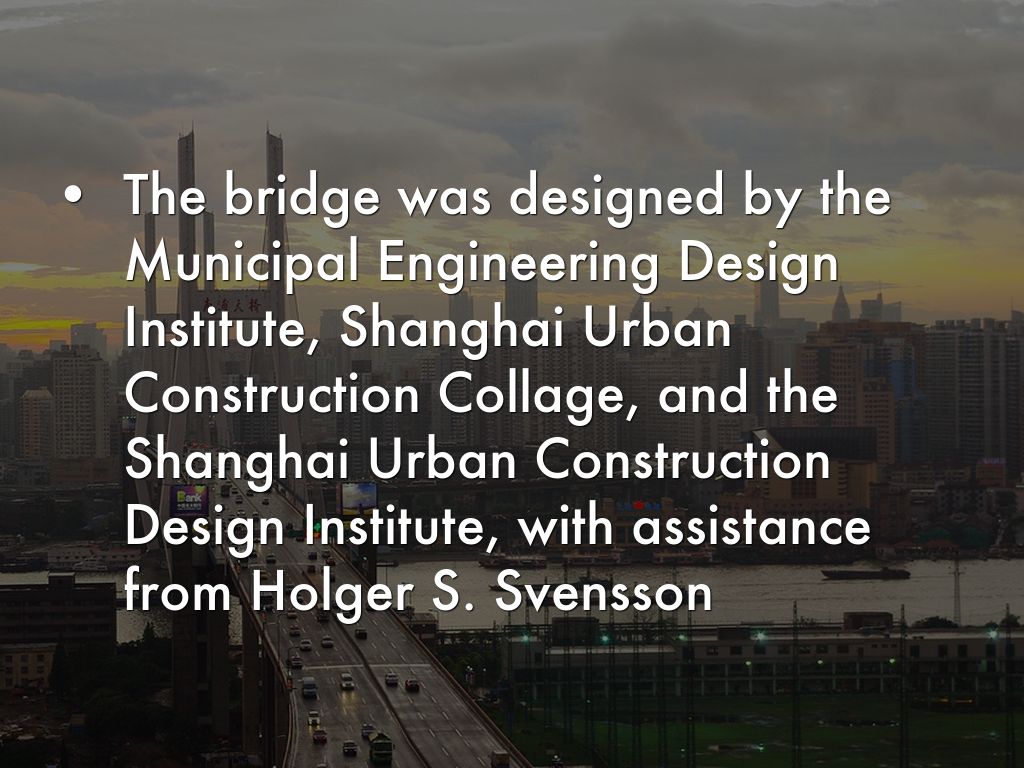

The bridge was designed by the Municipal Engineering Design Institute, Shanghai Urban Construction Collage, and the Shanghai Urban Construction Design Institute, with assistance from Holger S. Svensson
Photo by
Gene Chow
8.
Untitled Slide
Main span of 1388 feet, shorter then it's sister bridge
57th longest cable stayed bridge in the world
Open to the public in 1991
Photo by
cliffandally
9.
Untitled Slide
120000 vehicles a day
Coordinates : 31° 12' 27.15" N 121° 30' 3.36" E
Sits over the Huangpu River
Photo by
bricoleurbanism
10.
SORCES
https://en.m.wikipedia.org/wiki/Nanpu_Bridge
http://www.shanghaihighlights.com/shanghai-sightseeing/shanghai-nanpu-bridg...
http://www.amusingplanet.com/2013/08/nanpu-bridge-in-china.html
Photo by
-Mare
Garrett McMahon
×
