ARCH BRIDGE

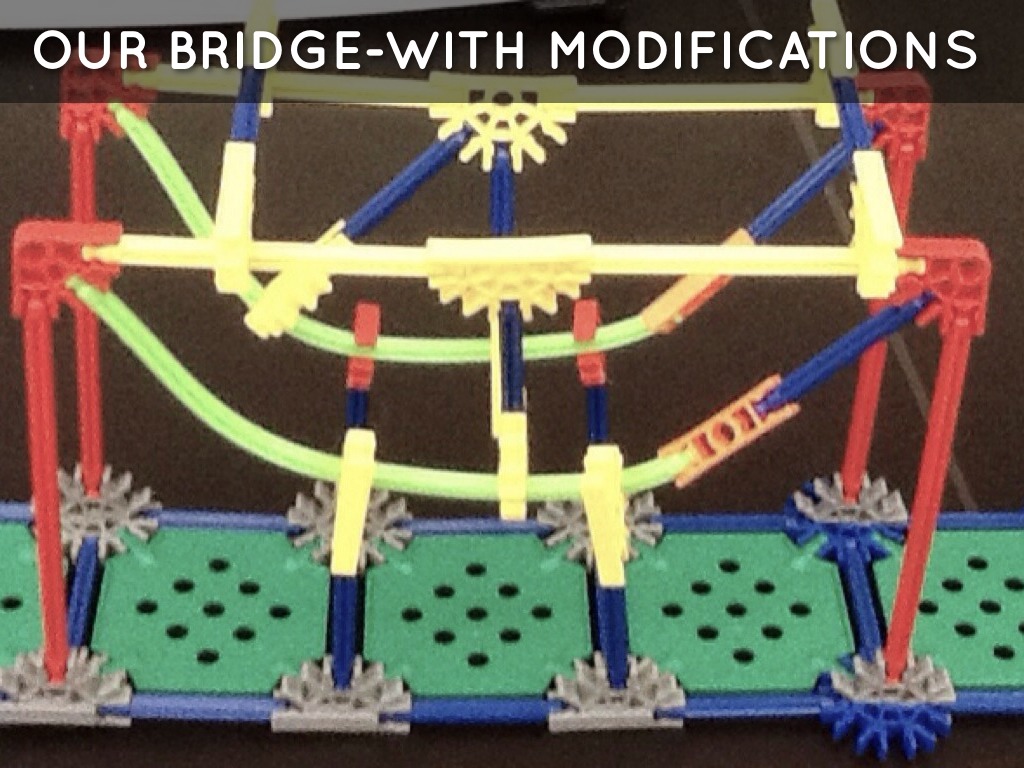

OUR BRIDGE-WITH MODIFICATIONS

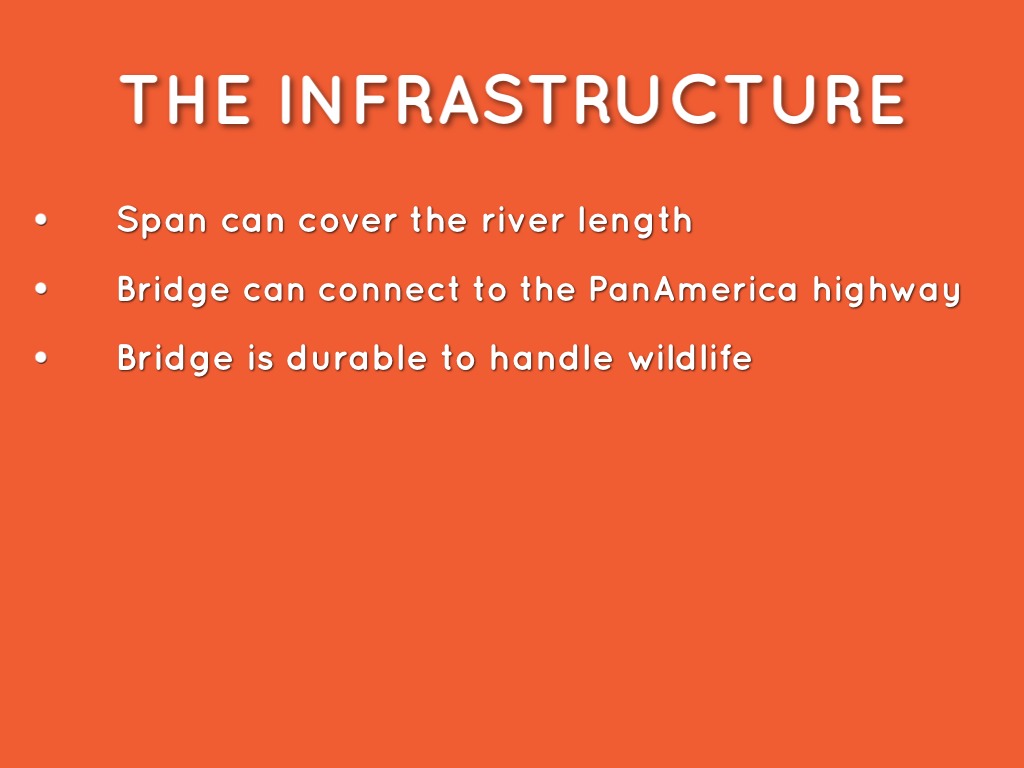

THE INFRASTRUCTURE

• Span can cover the river length
• Bridge can connect to the PanAmerica highway
• Bridge is durable to handle wildlife

TERRAIN

• Sturdy; can hold large mass
• Stable in severe conditions
• Large span to cover mountainous areas

ENVIRONMENTAL IMPACT

• Our bridge can handle natural and developed land
• Span can cover over different bodies of water
• The bridge's structure won't affect the waterbed

BENEFITS

• Our bridge can hold a lot of mass
• Large span increases stability
• Affordable cost to build
• Safe to use, sturdy

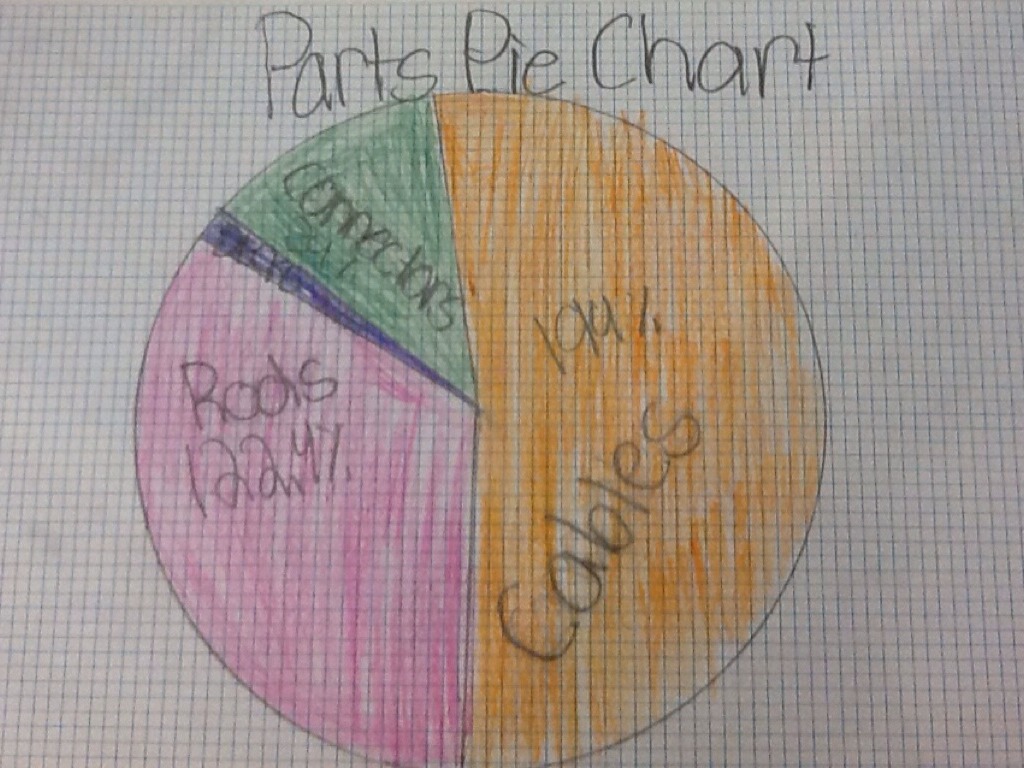

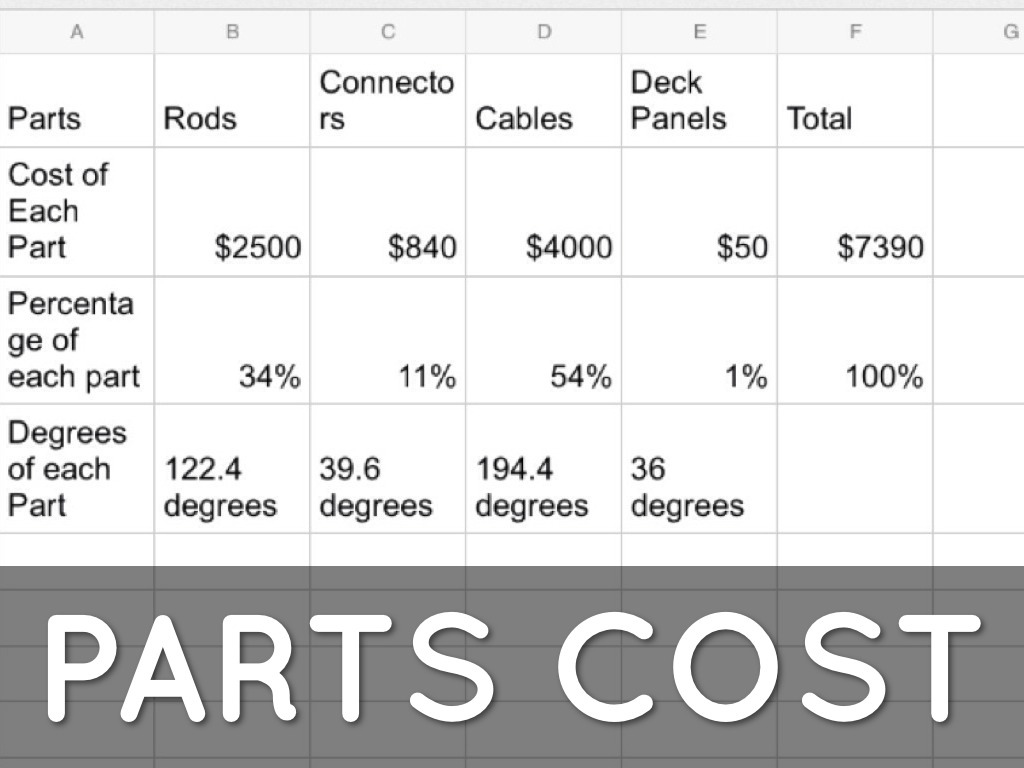

PARTS COST

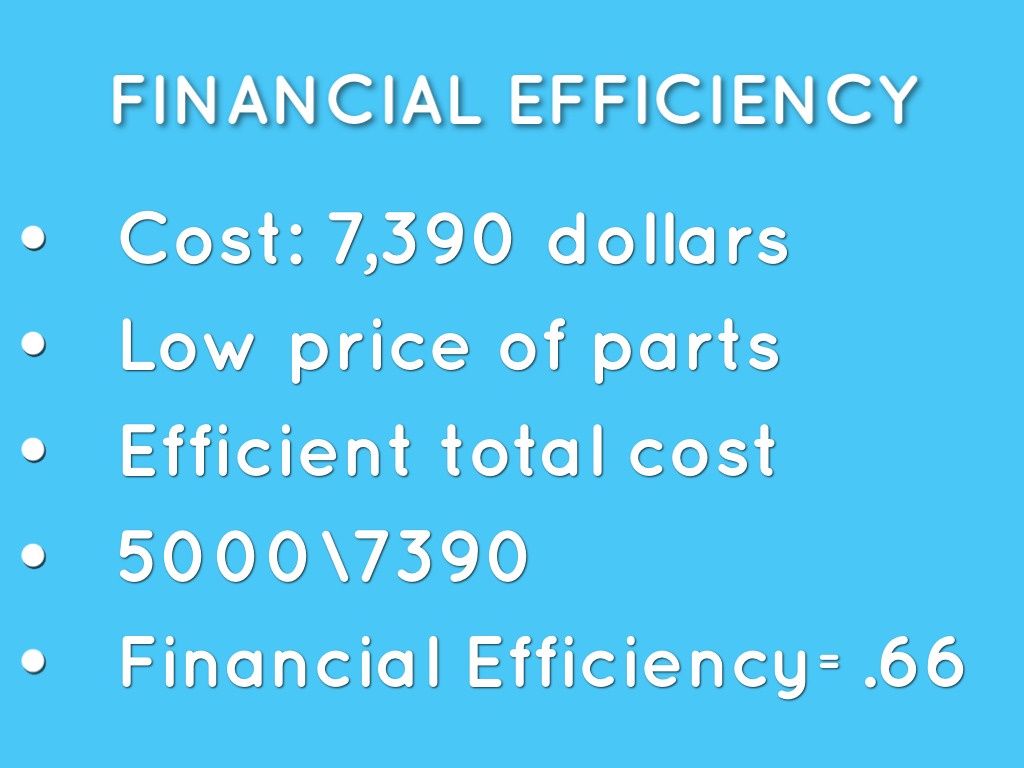

FINANCIAL EFFICIENCY

• Cost: 7,390 dollars
• Low price of parts
• Efficient total cost
• 5000\7390
• Financial Efficiency=.66

Untitled Slide

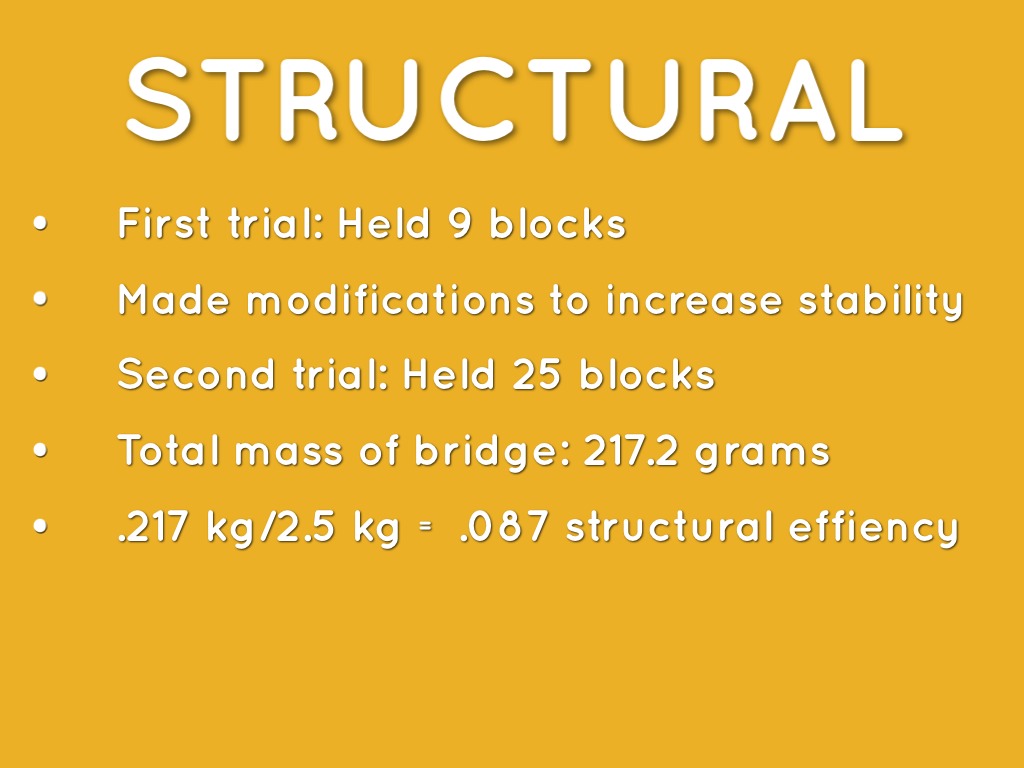

STRUCTURAL

• First trial: Held 9 blocks
• Made modifications to increase stability
• Second trial: Held 25 blocks
• Total mass of bridge: 217.2 grams
• .217 kg/2.5 kg = .087 structural effiency

TEAM HATORADE
